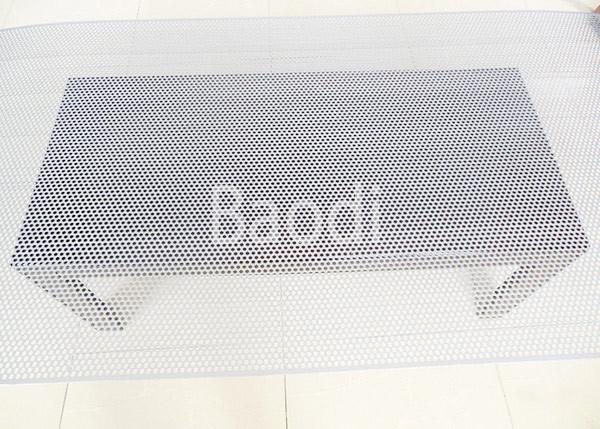

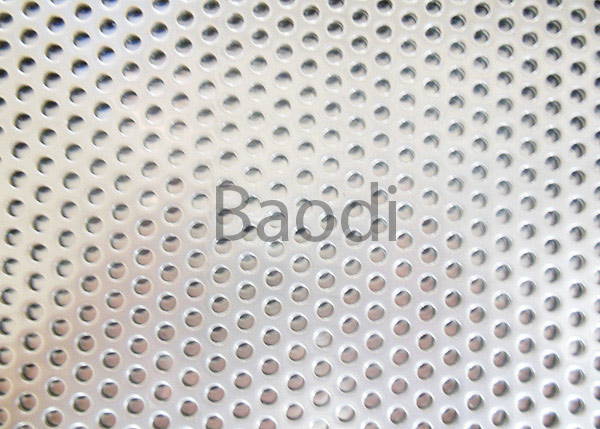

Carbon Steel Perforated Metal Screen Panels 0.8 - 25 Mm Hole For Mining / Automotive
Carbon Steel Perforated Metal Screen Panels 0.8 - 25 Mm Hole For Mining / Automotive
Carbon Steel Perforated Metal Screen Panels 0.8 - 25 Mm Hole For Mining / Automotive
Carbon Steel Perforated Metal Screen Panels 0.8 - 25 Mm Hole For Mining / Automotive
Specifications
Brand Name :
Baodi
Model Number :
BD-PSC
Place of Origin :
China
MOQ :
100 sheets
Payment Terms :
T/T, Western Union
Supply Ability :
100 sheets per week
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, with pallet outside.
Price :
negotiated
Product Name :
Metal Sheet With Holes
Material :
Low carbon iron, mild steel, stainless steel, aluminum
Hole Pattern :
Round Holes, Square holes, Hexagonal holes, oblong holes
Hole Diameter :
0.8mm-25mm
Maximum sheet width :
1m
Maximum sheet length :
2m
Description

Metal Sheet With Holes Carbon Steel & Stainless Steel For Mining

Material Low carbon steel,stainless steel,aluminum
Hole Pattern Round hole,square hole, slotted hole Hole size 0.8-25mm
Sheet Width Maximum width 1.5m Sheet Length Maximum length 3m
Sheet Thickness 0.5mm-3.5mm Packing Plastic film inside,pallet outside

Factors for quotation

  • Material
  • Sheet Thickness
  • Hole Shape
  • Hole Arrangement
  • Open Area / Hole Pitch
  • Margin Leaving
  • Sheet Length
  • Sheet Width

Specification List

Sheet Material Thickness of metal(mm ) Hole Dia.(mm) Pitch (mm) Sheet Width(m) Sheet Length(m) Porosity (%) Weight (kg/m2)
Flat plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless steel plate 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum plate 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23

Usage

Perforated Metal Sheet has been utilized across a variety of industries:

Mining

Refining

Healthcare

Security

Pharmaceutical

Environmental

Acoustic

Chemical — Filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers, liquid gas burning tubes, mine cages, coal washing, etc.

Food and beverage — Beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and vegetable juice presses, cheese molds, baking trays, coffee screens, etc.

Architectural — Infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.

Automotive — Air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers, ventilation grids, tractor engine ventilation, etc.

Construction — Ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats, facades, sign boards, etc.

Carbon Steel Perforated Metal Screen Panels 0.8 - 25 Mm Hole For Mining / Automotive

Why Choose Us?

1. Quality is our culture, always supply high qulity products with reasonable price.

2. Customer's request is our objective.

3. We're professional in producing wire mesh for many years, and have many experiences to do it.

4. You could visit our factory if convenient.
