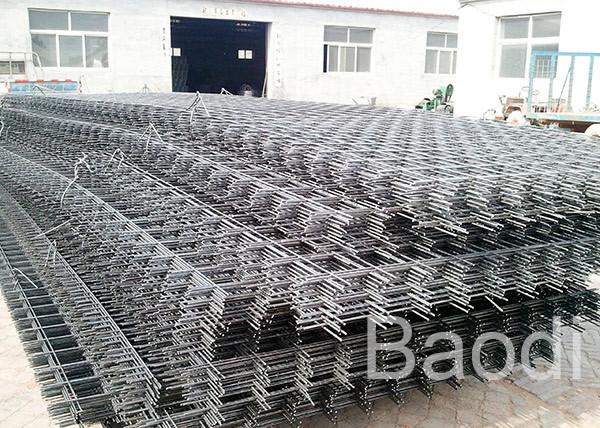

Deformed Bar Welded Steel Wire Remesh Sheet 2.4 M Panel Width For Airport / Tunnel
Deformed Bar Welded Steel Wire Remesh Sheet 2.4 M Panel Width For Airport / Tunnel
Deformed Bar Welded Steel Wire Remesh Sheet 2.4 M Panel Width For Airport / Tunnel
Deformed Bar Welded Steel Wire Remesh Sheet 2.4 M Panel Width For Airport / Tunnel
Specifications
Brand Name :
Baodi
Model Number :
BD-RWMD
Place of Origin :
China
MOQ :
100 sheets
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sheets per month
Delivery Time :
15-30 days
Packaging Details :
Null packing or in pallet
Price :
negotiated
Product Name :
Welded Deformed Bar Reinforcing Wire Mesh
Raw Material :
Deformed bar
Aperture Size :
100-300mm
Wire Diameter :
4-12mm
Panel Width :
Maximum 2.4m
Panel Length :
Maximum 6m
Description

Welded Deformed Bar Reinforcing Wire Mesh Panels For Construction

Description of Reinforcing Wire Mesh

Material Rebar, Deformed Bar, Ribbed Bar, Thread Bar
Type Welded Mesh
Wire Diameter 4-12mm
Mesh Size 100-300mm
Panel Width 0.5m-2.4m
Panel Length 1-6m
Packing: on pallet or null packing

Reinforcing Wire Mesh is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.

It's often patterned to form a better bond with the concrete.

Reinforcing wire mesh comes in rectangular or square steel reinforcement grids.

It consists of a series of parallel, longitudinal and transverse cold-worked and high-yield wires welded at regular intervals.

The reinforcing mesh can design by the project requirement, improve the efficiency and bond to the concrete can meet the special construct needs.

Reinforcing Wire Mesh is custom made by our factory, it is available in various sizes and shapes, the edge could be smooth or rough, the panel could be cutted to the size as your request.

Usage

It is widely use in:

  1. construction of building floor
  2. wall
  3. roof
  4. balcony
  5. airport
  6. tunnel
  7. bridge
  8. highway
  9. wharf

Characteristic

  • Firm Structure
  • Wires resist movement
  • Easy handling
  • Extensive use
  • High strength
  • Square or rectangular grids
  • Uniform mesh
  • Savings in time, labour and money

Production Process

Wire Drawing → Wire Straightening & Wire Cutting → Welding→ Packing → Loading

Welding

Welded wire steel fabric is manufactured with automatic welding machines, where wires are welded together in square or rectangular grids.

Reference No. Wire Dia. (mm) Pitch of wires (mm) Cross Section Area (mm2)

Mass Per Unit Area

Kg/m2
long Cross long cross long cross
A393 10 10 200 200 393 393 6.16
A252 8 8 200 200 252 252 3.95
A193 7 7 200 200 193 193 3.02
A142 6 6 200 200 142 142 2.22
A98 5 5 200 200 98 98 1.54
B1131 12 8 100 200 1131 252 10.9
B785 10 8 100 200 785 252 8.14
B503 8 8 100 200 503 252 5.93
B385 7 7 100 200 385 193 4.53
B283 6 7 100 200 283 193 3.73
B196 5 7 100 200 196 193 3.05
C785 10 6 100 400 785 70.8 6.72
C636 9 6 100 400 636 70.8 5.55
C503 8 5 100 400 503 49.0 4.34
C385 7 5 100 400 385 49 3.41
C283 6 5 100 400 283 49.0 2.61
DA1328 13 13 100 100 1328 1328 20.85
DA1131 12 12 100 100 1131 1131 17.76
DA950 11 11 100 100 950 950 14.92
DA785 10 10 100 100 785 785 12.32
DA636 9 9 100 100 636 636 9.98
DA503 8 8 100 100 503 503 7.90
DA385 7 7 100 100 385 385 6.04
DA283 6 6 100 100 283 283 4.44
