1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining
1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining
1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining
1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining
Specifications
Brand Name :
BAODI
Model Number :
BD-PM21
Place of Origin :
CHINA
MOQ :
100 sheets
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sheets/month
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, pallet outside.
Item Name :
Mining Perforated Metal Mesh
Raw Material :
Galvanized Carbon Steel
Hole Type :
Slotted / Round Hole
Application :
Mining, ceiling, filter or decorative screen
Surface Treatment :
Galvanized
Process Service :
Bending / Cutting / Punching
Hole Diameter :
0.8mm - 25mm
Sheet Thickness :
0.5-3.5mm
Width x Length :
1m x 2m usually
Description

Galvanized Slotted Hole Screen for Mining Perforated Metal Mesh

Product Description

Perforated Metal Mesh, also known as CNC punching net, is a metal net product formed by stamping metal plates according to molds with a certain spacing.

Material: made of stainless steel, aluminum plate, hot and cold steel plate, copper plate, PVC plate film and other materials.

Hole type: long hole, square hole, round hole, hexagonal hole, fish scale hole, tensile special-shaped hole and other characteristics: the mesh surface is flat, smooth, beautiful, firm and durable.

Specification: the thickness of coiled plate is 0.2mm - 1mm, the length is 1m-20m, and the hole diameter is 0.8mm - 10mm; The plate thickness is 0.3mm - 10mm, the size is 1.53m, and the hole diameter is 0.8mm - 100mm.

Purpose:

It can be used for the protective cover of mechanical equipment, gorgeous speaker net cover, grinding screen, ore screen and I-shaped screen for grain, feed and mine, stainless steel fruit blue, food cover, fruit tray and other kitchenware for kitchen equipment, shelf net for shopping malls, decorative exhibition stands and ventilation net for grain depots.

Specification List
Material Thickness (mm ) Hole Size (mm) Hole Pitch (mm) Sheet Width(m) Sheet Length(m) Porosity (%) Weight (kg/m2)
Carbon steel 0.5 1 1mm 1m 2m 19.6 3.14
0.55 1.1 2.2mm 1m 2m 22.67 3.411
0.55 1.5 2.8mm 1m 2m 26.03 3.268
0.8 1.5 1.5mm 1m 2m 19.6 5
0.8 2 3.4mm 1m 2m 30.78 4.465
1.5 2 2mm 1m 2m 19.6 9.4
1.5 5 8.0mm 1m 2m 35.39 7.843
3 5 16mm 1m 2m 19.6 18.8
Stainless steel 0.5 1 1mm 1m 2m 19.6 3.14
0.8 1.5 1.5mm 1m 2m 19.6 5
1 2 2mm 1m 2mm 19.6 6.28
2 5 16mm 1m 2m 19.6 6.28
Aluminum 0.5 1 1mm 1m 2m 19.6 1.08
0.8 3 3mm 1m 2m 19.6 1.72
1.6 2 2mm 1m 2m 19.6 3.24
3 4 16mm 1m 2m 19.6 4.23

1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining

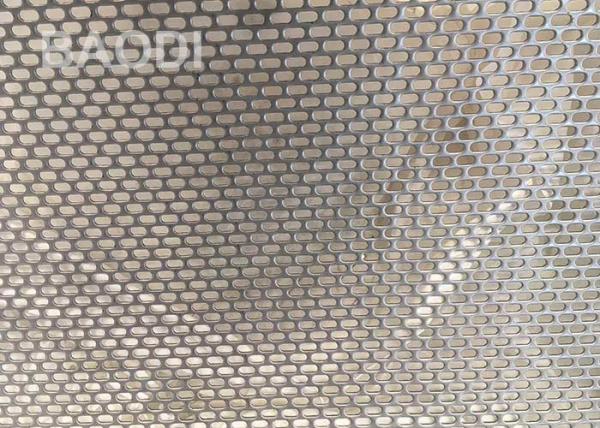

Variety Hole Pattern Display:

1X2M Galvanized Slotted Hole Perforated Stainless Steel Mesh Screen For Mining
