Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
Specifications
Brand Name :
BAODI
Model Number :
BD-PM13
Place of Origin :
CHINA
MOQ :
100 sheets
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sheets/month
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, pallet outside.
Item Name :
Stainless Steel Perforated Mesh
Material :
stainless steel, 304/316
Hole :
Round Hole Shape
Hole Arrangement :
45 / 60
Application :
decorative / screen / filter
Technique :
Perforated, punching
Process :
Punching, Bending, Cutting
Hole Dimension :
0.8mm - 25mm
Sheet Thick :
0.5mm - 3.5mm
Common Size :
1mx2m usually, Max. 1.5m x 3m
Description

Stainless Steel 304 316L Round Hole Perforated Metal Mesh

Description

The perforated metal mesh is stamped from the original steel plate.

Beautiful appearance, widely used in the protection of speakers, bridges, pedals and various mechanical equipment.

Steel plate materials mainly include steel plate, cold rolled plate, hot rolled plate, galvanized steel plate, alloy steel plate, etc.

It is mainly used in high-end residence, villa, private swimming pool, courtyard lawn, stadium, resort and other fields.

We have advanced numerical control equipment, and the products can be customized as customers's demand.

Classification of Perforated Mesh:

Classification by thickness: (1) thin plate (2) medium plate (3) thick plate (4) extra thick plate

Classification by material: (1) hot rolled steel plate (2) cold rolled steel plate material (3) stainless steel plate 2 nickel, 4 nickel, 302, 304, 316, 304L and 316L

Classification by hole: diamond, square, round, triangle, fish phosphorus hole, irregular hole, etc.

Features: the mesh surface is flat, smooth, beautiful, firm and durable, and has a wide range of applications.

Specification: the thickness of coiled plate is 0.2mm - 1mm, the length is 1m-20m, and the hole diameter is 0.8mm - 20mm; Plate thickness 0.3mm - 30mm, min

Specifications
Plate material Thickness (mm ) Hole (mm) Pitch (mm) Sheet Width(m) Sheet Length(m) Porosity (%) Plate Weight (kg/m2)
Steel sheet 0.5mm 1mm 1 1 2 19.6 3.14
0.55mm 1.1mm 2.2 1 2 22.67 3.411
0.55mm 1.5mm 2.8 1 2 26.03 3.268
0.8mm 1.5mm 1.5 1 2 19.6 5
0.8mm 2mm 3.4 1 2 30.78 4.465
1.5mm 2mm 2 1 2 19.6 9.4
1.5mm 5mm 8.0 1 2 35.39 7.843
3mm 5mm 16 1 2 19.6 18.8
Stainless steel 0.5mm 1mm 1 1 2 19.6 3.14
0.8mm 1.5mm 1.5 1 2 19.6 5
1mm 2mm 2 1 2 19.6 6.28
2mm 5mm 16 1 2 19.6 6.28
Aluminum sheet 0.5mm 1mm 1 1 2 19.6 1.08
0.8mm 3mm 3 1 2 19.6 1.72
1.6mm 2mm 2 1 2 19.6 3.24
3mm 4mm 16 1 2 19.6 4.23

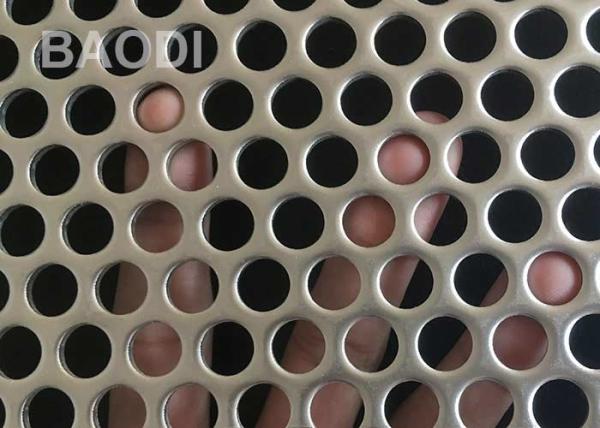

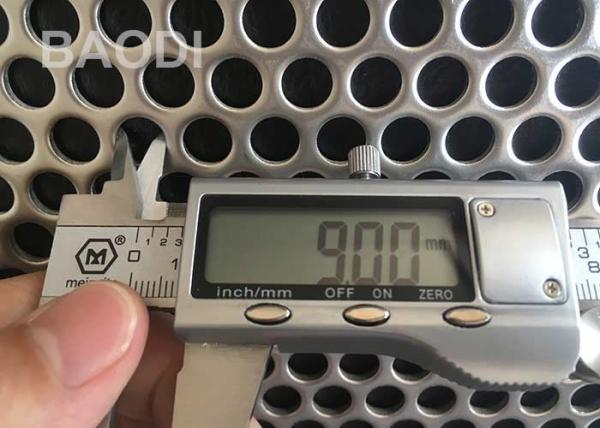

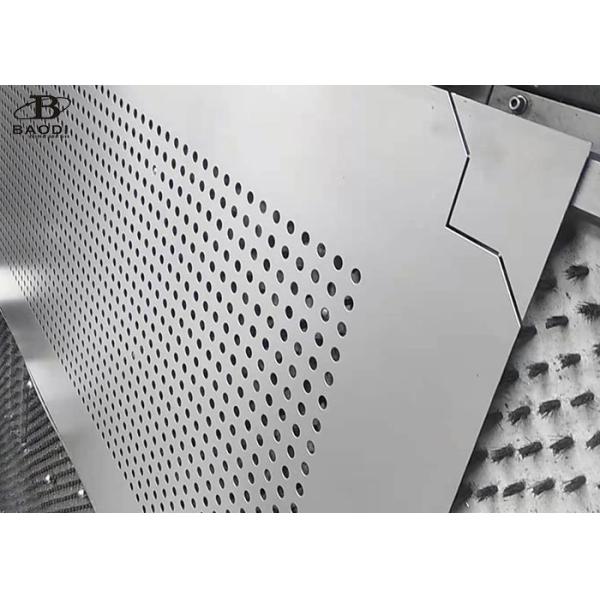

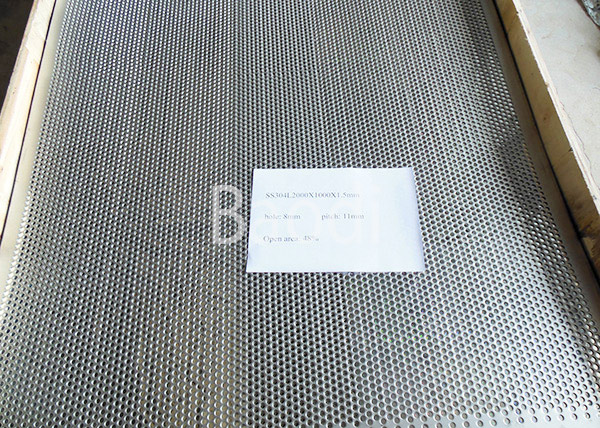

Product Show

Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2mStainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m

Variety Patterns can be customized

Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m

Factors for quotation

1. plate raw material
2. plate thickness
3. hole shape & dimension
4. round hole arrangement
5. open area
6. margin
7. plate dimension(width x length x thickness)

Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
