Customized Perforated Metal Mesh Round / Slotted / Square Hole
Customized Perforated Metal Mesh Round / Slotted / Square Hole
Customized Perforated Metal Mesh Round / Slotted / Square Hole
Customized Perforated Metal Mesh Round / Slotted / Square Hole
Customized Perforated Metal Mesh Round / Slotted / Square Hole
Customized Perforated Metal Mesh Round / Slotted / Square Hole
Specifications
Brand Name :
BAODI
Model Number :
BD-PM3
Place of Origin :
CHINA
MOQ :
100 sheets
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sheets/month
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, pallet outside.
Material :
Stainless Steel
Hole Pattern :
Round/square/slotted Hole
Round Hole Arrangement :
45 / 60 / straight line
Application :
Filter, decorative screen
Product Name :
Perforated Mesh
Technique :
Perforated / Punching
Process Service :
Bending / Cutting / Punching
Hole Size :
0.8-25mm
Sheet Thickness :
0.5-3.5mm
Width & Length :
Max. 1.5m x 3m
Description

Customized Stainless Steel Perforated Mesh Round/Slotted/Square hole

Product Description

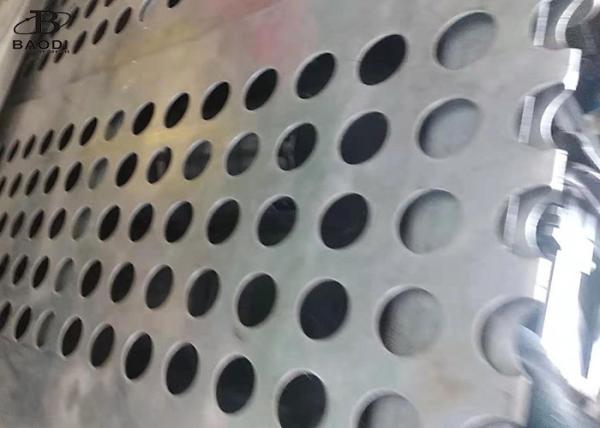

Perforated Mesh is a kind of metal sheet that has been punched with many holes & patterns, such as round holes, square holes or slotted holes, etc.

It can be widely used for chemical machinery, pharmaceutical equipment, food and beverage machinery, cigarette equipment, telecommunications equipment shell; Machine sieve plate of harvester, rice mill and dry cleaner; Silencing equipment, refrigeration equipment, hydraulic accessories, filters, speakers, speaker covers, etc; Electronic industry, such as the sound of dust-proof cover, etc; Screening of mining, medicine, paper making, wine making, grain processing, food processing, malt processing, etc; As well as ventilation and filtration, wind and dust suppression, arts and crafts production, decoration and other industries.

Perforated Mesh
Material: carbon steel,stainless steel(ss304,ss346),aluminum
Hole Pattern Round hole,square hole, slotted hole Hole size 0.8-25mm
Plate Width Maximum width 1.5m Plate Length Maximum length 3m
Plate Thickness 0.5mm-3.5mm Packing Plastic film inside,pallet outside
Specification List
Plate material Thickness of plate (mm ) Hole Size (mm) Pitch (mm) Plate Width (m) Plate Length (m) Porosity (%) Weight (kg/m2)
Carbon steel 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless steel 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23

Customized Perforated Metal Mesh Round / Slotted / Square HoleCustomized Perforated Metal Mesh Round / Slotted / Square Hole

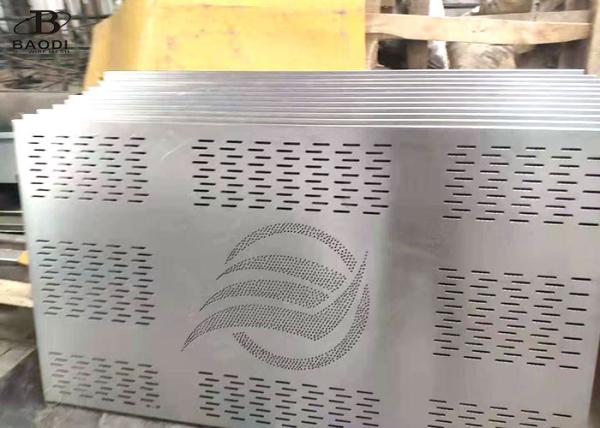

Variety Patterns can be customized

Customized Perforated Metal Mesh Round / Slotted / Square Hole

Factors for quotation

material
metal thickness
hole shape
hole arrangement
open area
margin
dimension(width x length x thickness)

Customized Perforated Metal Mesh Round / Slotted / Square Hole
