0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh
0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh
0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh
0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh
Specifications
Brand Name :
BAODI
Model Number :
BD-PM7
Place of Origin :
CHINA
MOQ :
100 sheets
Price :
Negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sheets/month
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, pallet outside.
Name :
Perforated Mesh
Material :
Stainless Steel, SS304, SS316
Hole Pattern :
Round Hole Shape
Arrangement :
45 / 60 / straight line
Application :
Filter or decorative screen
Plate Technique :
Perforated
Process Service :
Bending / Cutting / Punching
Hole Size :
0.8-25mm
Plate Thickness :
0.5-3.5mm
Width & Length :
1.5m x 3m Max.
Description

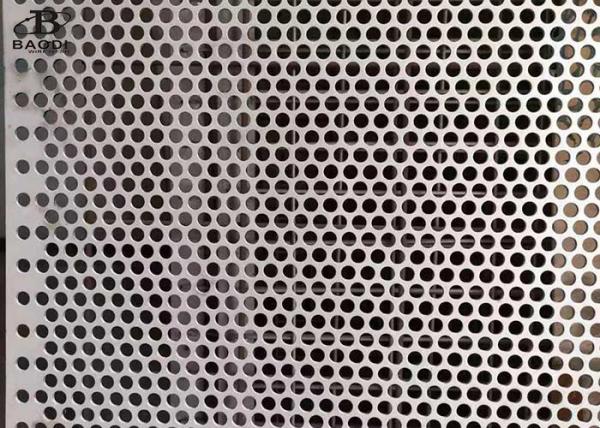

Round Hole Shape Stainless Steel 316 Perforated Mesh

Product Description

Perforated Mesh refers to punching holes of different shapes on the same material to meet different requirements. It can be used as environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, and sound-absorbing board for sound insulation and noise reduction of building walls, generator rooms, factory buildings and other noise sources.

Most of the raw materials used for punching mesh are: stainless steel, low carbon steel, galvanized PVC cold rolled coil, etc.

Hole type: rectangular hole, square hole, diamond hole, round hole, hexagon hole, cross hole, triangle hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, five pointed star hole, irregular hole, bulging hole, etc.

It can be used for environmental protection noise control barrier in traffic and municipal facilities such as expressway, railway and subway passing through urban areas, sound insulation and noise reduction board for building walls, generator rooms, factory buildings and other noise sources, and sound absorption board for ceiling and wallboard of buildings.

Perforated Mesh
Raw Material: low carbon steel,stainless steel,aluminum
Hole Shape Round hole,square hole, slotted hole Hole Diameter 0.8-25mm
Sheet Width Maximum width 1.5m Sheet Length Maximum length 3m
Sheet Thickness 0.5mm-3.5mm Packing Plastic film inside,pallet outside
Specification List
Plate material Thickness of metal(mm ) Hole Dia.(mm) Pitch (mm) Sheet Width(m) Sheet Length(m) Porosity (%) Weight (kg/m2)
Steel plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless steel plate 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum plate 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23

0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh

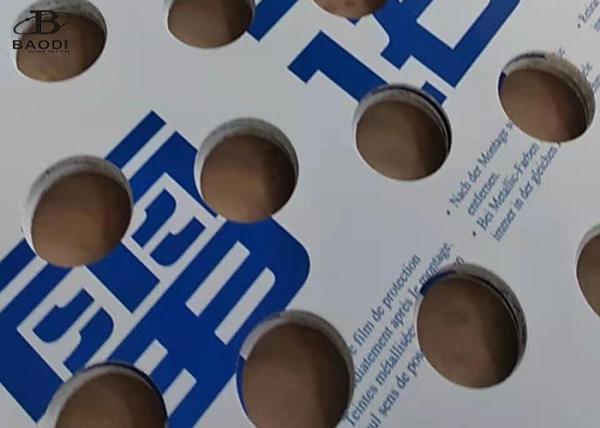

Variety Hole Pattern can be customized

0.5mm Round Hole Shape Stainless 316 Perforated Steel Mesh
