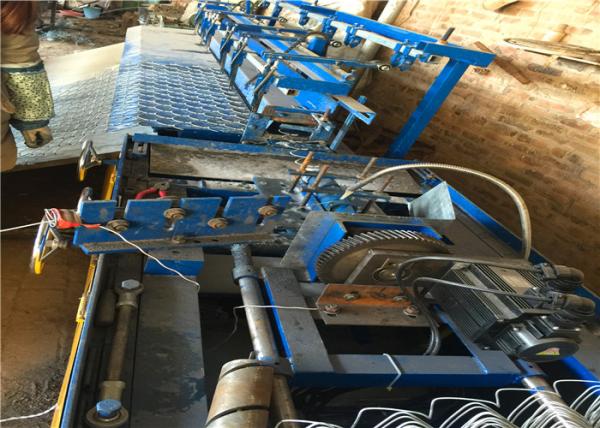

Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
Specifications
Brand Name :
Baochuan
Model Number :
FACLM-001
Certification :
ISO SGS
Place of Origin :
China
MOQ :
negotiable
Payment Terms :
Western Union, L/C, T/T,Paypal
Supply Ability :
20 sets per month
Delivery Time :
15 working days
Packaging Details :
Plastic film
Machine Type :
Double wire fully aotomatic including compact roll or roller
Machine Width :
2-6 meters
Wire diameter :
1.5-4 mm
Mesh Size :
25 mm - 100 mm
Motor :
Serve Motor
Surface :
Black or paint
Price :
negotiable
Description

Hot Sale Factory Price Fully Automatic Diamond Wire Mesh Net Machine

Introduction of chain link fence machine:

This machine is used to produce high quality chain link fence. High automatic high technology, high efficiency.

Parameter of chain link fence making machine:

1. Width scope of weaving: 1-4m
Wire scope of weaving: 2-4mm
Mesh scope of weaving: 30-100mm
2. The machine is controlled by PLC automatic controller, so only one person is needed to operate it

3. The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M/2 min.
4. Suitable wire to the machine: the tensile scope of the wire 300-500N/M2
5. Use compacting machine to make it into rolls
6. Total power of equipment 11kw
7. Weight of equipment: 4200kg
8. Outside size: main machine: 6700x1430x1800mm

Features of chain link fence making machine:

1. This machine adopts PLC (programmable logic controller). Controlling the wire feeding, chain making and chain link fence weaving.

2. Machine adopts 2 feeding wire methods to weave the mesh, high weaving speed with high quality.

3. Reasonable designing, touch screen controller, complete wire feeding, wire cutting, mesh conveying and edge finished totally automatic.

4. Main components used in the machine such as single-chip computer and hydraulic system are of famous brand and excellent quality.

Features:

1. This machine adopts PLC (programmable logic controller). Controlling the wire feeding, chain making and chain link fence weaving.

2. Machine adopts 2 feeding wire methods to weave the mesh, high weaving speed with high quality.

3. Reasonable designing, touch screen controller, complete wire feeding, wire cutting, mesh conveying and edge finished totally automatic.

4. Main components used in the machine such as single-chip computer and hydraulic system are of famous brand and excellent quality.

Suitable wire to the machine:

High-quality low carbon steel wire, Galvanized steel wire,Stainless steel wire, Aluminum alloy wire, Aluminum-clad steel wire.

Specifications of Fully Automatic Chain Link Machine:

Capacity 80-120(m2/hour)
Wire Diameter 2.2mm-4mm Feeding Wire Numbers: two
(Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
Size of Mesh 40X40-100X100(mm)
Netting Width 600-4000(mm)
Power 3.0/KW1set 4.0/KW1 set 0.12/KW 1set
Diamension L*W*H6500mm×4500mm×2500mm

Competitive Advantage:

1. We have more than 12 years of experience producing chain link machine. The machine can running very well.

2. You can use our machine directly once you get electricity. No need to connect wires or adjust the machine. Which can save your time and overseas service cost.

3. We use Servo Motor on the machine. As result, the machine can running very fast and lso you can adjust many things through the PLC.

FAQ:

Q1:Your price is too high, could you give me some discounts?

A:1.If you take the quality into account, you will find our price is reasonable.

2.If your order is big enough, we will give you some discounts, say,5% discount.

3.In order to establish long-term trade relations with you, we are willing to make a concession give you 5% discount.

Q2:What kind of quality control do you have?

A:All products have go though 4 checks during the production process and have to pass strict inspection before they go out. Besides, we set up our quality control department.

Q3:What’s your terms of packaging?

A:1.Wrapped with waterproof paper, with metal or wood pallet

2.Standard in pallet and plastic film or according to customers’ requirement.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Speical specifications can be produced as your requirements, if you are interested in our products, please don't hesitate to contact us.

Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine

Easy Operation Chain Link Wire Machine , Chain Link Fence Making Machine
