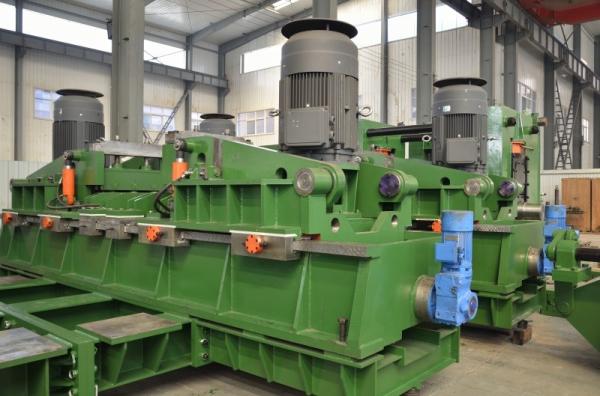

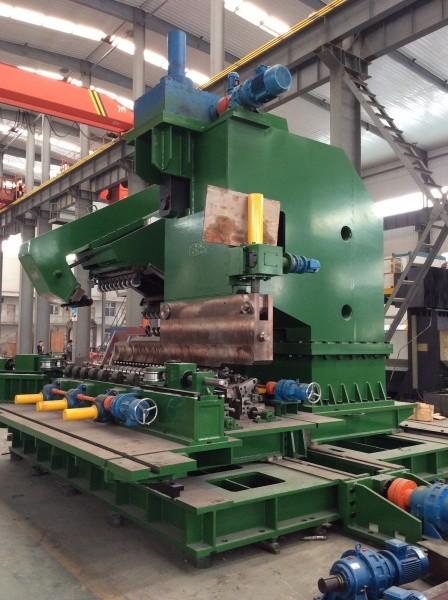

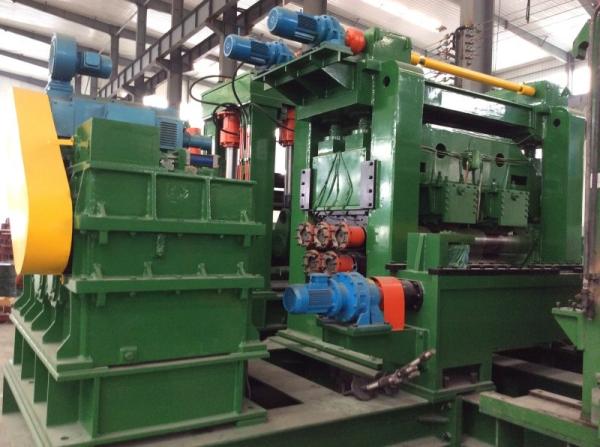

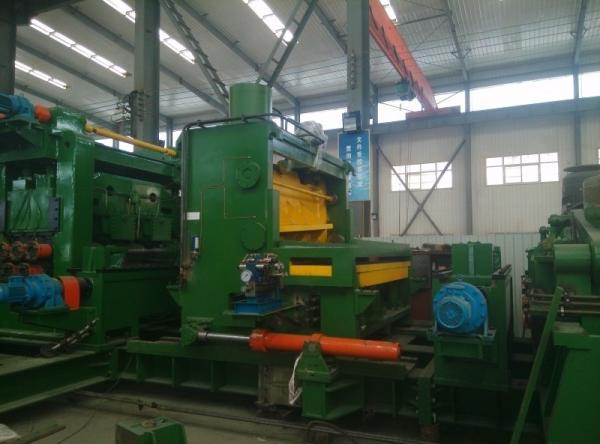

φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
Specifications
Brand Name :
TXH
Model Number :
φ508-3860
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 50000-500000
Payment Terms :
T/T, L/C
Supply Ability :
12 sets/year
Delivery Time :
2-3 month
Packaging Details :
plastic packing wooden packing
name :
spiral welded pipe machine/mill
material :
X70
model :
φ508-3860
stand :
API
color :
green
pipe diameter :
508-3860 mm
pipe thickness :
5-25.4 mm
coil width :
2000 mm
Pipe material :
Carbon Steel
Condition :
New
Application :
Energy Supply Pipe,Drain Pipe
Description

Carbon Steel Circle Spiral Welded Pipe Mill Machine

1.Machine Description

Spiral steel pipe machine is used to manufacture spiral seam welded pipe.

It can produce steel pipes of different diameters with strips of the same width, and produce steel pipes of the same diameter with strips of different widths. Spiral pipe welding machine (spiral steel pipe machine) is mainly for front swing type and rear swing type.This machine is composed of uncoiler, feeding, straightening, shearing, receiving, trimming, delivering, input guide plate, forming, steel pipe internal and external welding, pipe cutting output and pipe turnover

2.Machine quick detailes

Coil Specification Product specification

Marital: Q235, Q345 x70 Pipe O.D. : Φ508-Φ3860mm
Coil thickness: 5 - 25.4mm Pipe thickness: 5-25.4mm
Coil width: 700-2000mm Pipe length: 8 - 12m
Max. coil weight: 32T

3.Machine list
No Equipment composition Quantity
1 Uncoiler 1
2 Coil Peeler 1
3 Leveling machine 1
4 Hydraulic cutting butt welder 1
5 Electric vertical roller 3
6. Edge milling machine 1
7 Delivery machine 1
8 Guide plate extrusion 1
9 Forming machine 1
10 Front axle device 1
11 Internal welding device 1
12 External welding device 1
13 Rear axle device 1
14 Centralizer 1
15 Flying saw cutter 1
16 Front and rear bridge embedded parts 1
17 Hydraulic Station 1
18 Electric control device 1

4.Machine specification
Model Pipe diameter(mm) Pipe thickness(mm)

Coil width

(mm)
SAW 508 Φ219-Φ508 4-10 400-800
SAW 610 Φ219-Φ610 4-10 400-1000
SAW 820 Φ219-Φ820 4-12 400-1250
SAW1020 Φ219-Φ1020 4-14 500-1250
SAW 1220 Φ219-Φ1220 4-14 500-1500
SAW 1420 Φ400-Φ1420 4-16 500-1500
SAW 1620 Φ400-Φ1620 4-16 500-1500
SAW 1820 Φ508-Φ1820 4-20 1000-1800
SAW 2220 Φ508-Φ2220 4-22 1000-1800
SAW2540 Φ508-Φ2540 4-25.4 1000-2000
SAW3000 Φ508-Φ3000 4-25.4 1000-2000

5.Usage

After many years of exploration and constantly improved, the Spiral welding pipe equipment as well as its technical level are already in a leading position in our country, So our company is the most reliable, loyal partner and friend of steel pipe manufacture enterprise. In the recent we designed a leading domestic high-grade X80 of the Φ 406mm ~ Φ 1422mm double spiral submerged arc welding pipe mill for YangZhou TongYa pipe Co., Ltd...

The spiral welding pipe mill products designed, manufactured by Our company have been diversified and serialization. From the forming process, it is divided into two types: External control molding and internal control molding. Unit's production process is divided into such types: Loop storage pit with welding materials or the backward swing type machine unit and the forward swing type short machine unit that are continuously producted in the form of Flying welding tractor. The diameter range of steel pipe produced from Φ 219mm to Φ 2800mm in the any size of any specifications. Products can satisfy standards of API-5L, GB9711.1, GB9711.2.
6. Certificate
φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition

7.Customer Service

  • Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  • Your inquiry related to our products or price will be replied in 24hrs.
  • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  • one-year warranty to our display and one-year warranty to spare parts.
  • Buyer can dispatch technician to our factory for free training before delivery.
  • For essential equipment failure, we will arrange our engineer head to local site to install, also provide online technical support for the whole life.

φ508-3860 X 70 Advanced Spiral Welded Pipe Mill API Standard New Condition
