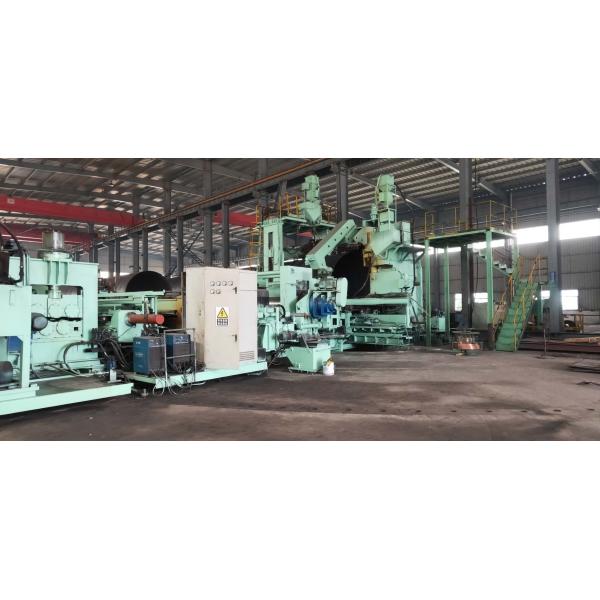

Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
Specifications
Brand Name :
TXH
Model Number :
508-2540
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 200000-400000
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/ year
Delivery Time :
2-3 months
Packaging Details :
Plastic packing and wooden case
Name :
Spiral welded pipe mill
Material :
Carbon steel
Usage :
Industry
Feature :
Easy to operate
Diameter :
508-2540 mm
Thickness :
6-20 mm
Color :
Green
Pipe shape :
Circle
Service :
1 year
Weight :
200-300 tons
Description

Advacned carbon steel SSAW welded pipe making machine

1.Machine Description

Spiral steel pipe machine is used to manufacture spiral seam welded pipe.

It can produce steel pipes of different diameters with strips of the same width, and produce steel pipes of the same diameter with strips of different widths. Spiral pipe welding machine (spiral steel pipe machine) is mainly for front swing type and rear swing type.This machine is composed of uncoiler, feeding, straightening, shearing, receiving, trimming, delivering, input guide plate, forming, steel pipe internal and external welding, pipe cutting output and pipe turnover

Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production LineAdvacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line

2.Machine quick detailes

Coil Specification
Marital: Q235, Q345
Coil thickness: 6 - 20mm
Coil width: 700-1550 mm
Max. coil weight: 30T

Product specification
Pipe O.D. : Φ508-Φ2540mm
Pipe thickness: 6-20mm
Pipe length: 8 - 12m

3.Machine list

1- Uncoiler
1- Peeler
2- Hydraulic vertical roller
1- Shear and butt welding device
1- 5 roll leveling machine
1- Edge Planer Machine
1- Delivery machine
1- Front bridge
1- Guide plate
1- Forming machine
1- Inner welding device
1- Outer welding device
1- Plasma cutting device
1- Rear bridge
1- Center support
1- Hydraulic system
1- Electrical control system

4.Usage

1.1,Standard: As per API-5L Specification for oil / gas pipes.
1.2,Low-pressure fluid pipeline, city gas transmission, supply and drainage water
pipeline.
1.3,As per specifications of Piling steel pipes /industrial structure pipes
5. Certificate
Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
6.Machine specification
Model Pipe diameter(mm) Pipe thickness(mm)

Coil width

(mm)
SAW 508 Φ219-Φ508 4-10 400-800
SAW 610 Φ219-Φ610 4-10 400-1000
SAW 820 Φ219-Φ820 4-12 400-1250
SAW1020 Φ219-Φ1020 4-14 500-1250
SAW 1220 Φ219-Φ1220 4-14 500-1500
SAW 1420 Φ400-Φ1420 4-16 500-1500
SAW 1620 Φ400-Φ1620 4-16 500-1500
SAW 1820 Φ508-Φ1820 4-20 1000-1800
SAW 2220 Φ508-Φ2220 4-22 1000-1800
SAW2540 Φ508-Φ2540 4-25.4 1000-2000
SAW3000 Φ508-Φ3000 4-25.1 1000-2000

7.Customer Service

  • Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  • Your inquiry related to our products or price will be replied in 24hrs.
  • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  • one-year warranty to our display and one-year warranty to spare parts.
  • Buyer can dispatch technician to our factory for free training before delivery.
  • For essential equipment failure, we will arrange our engineer head to local site to install, also provide online technical support for the whole life.

Advacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production LineAdvacned Carbon Steel Pipe Mill , 6-20mm Thickness Welded Pipe Production Line
