SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
Specifications
Brand Name :
HUAZE
Certification :
IOS9000
Place of Origin :
CHINA
MOQ :
500 square meter
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Pallets
Name :
SGS Passed Roll Top Welded Wire Mesh Panel Fence 50mm X 200mm Opening 4mm Wire Diameter
Opening :
200mm X 50mm
Wire Thickness :
4.0mm
Height :
1.2m / 1.35m / 1.5m / 1.65m
Surface :
PVC powder coating Galvanized
Color :
Customization
Application :
Fence
Package :
On pallets
Description

SGS Passed Roll Top Welded Wire Mesh Panel Fence 50mm X 200mm Opening 4mm Wire Diameter

Roll top fencing has a unique and user-friendly closed and rolled beam section at the top and bottom edge of each panel with no sharp or raw edges, usually made from heavy 5 mm wires, which results in maximum rigidity and better safety. It is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.

Welded Wire Fencing is made by steel wire with a 4mm to 6mm wire gauge.According to the hole size the fencing is divided into different types.In order to improve the beauty and firm structure the bendings are added in the panels so the fence also named 3D Welded Wire Fencing or Triangle Bending Welded Wire Fence.

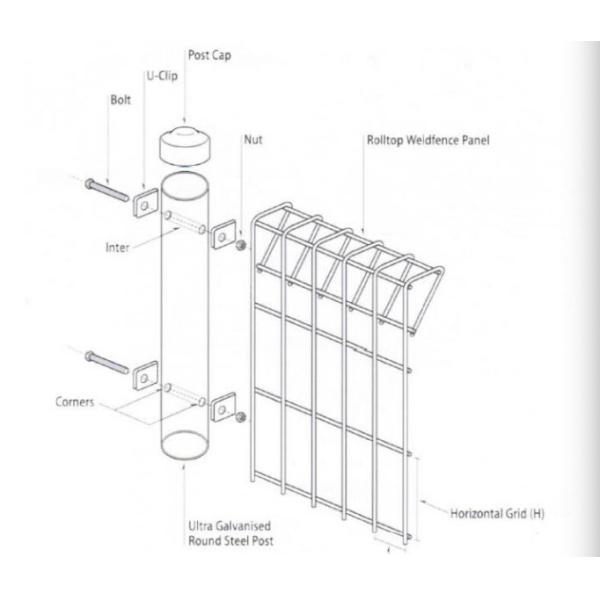

The Welded Mesh Fencing is a structure that circles the perimeter of an area to prevent access. These fences are frequently made out of single vertical metal bars connected at the top and bottom with a horizontal bar.Many kinds of Garden Fence Accessories are provided to install a good fence.Some customers choose T / Y / U Post because of the low cost. However,the most suitalbe Post is Round Post or square post.


Specification

Panel size Post
Panel height Panel width Wire Mesh holes Height(mm) Post Section
900mm 2.4m&3m 4.0&5.0mm

50×150mm

50×200mm

 1500

Square

60×60mm

60×80mm

Round

φ48mm,φ60mm
1200mm 2.4m&3m 4.0&5.0mm 1800
1500mm 2.4m&3m 4.0&5.0mm 2100
1800mm 2.4m&3m 4.0&5.0mm 2400
2400mm 2.4m&3m 4.0&5.0mm 3000
Above are general specification,others are available.


SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized

SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized

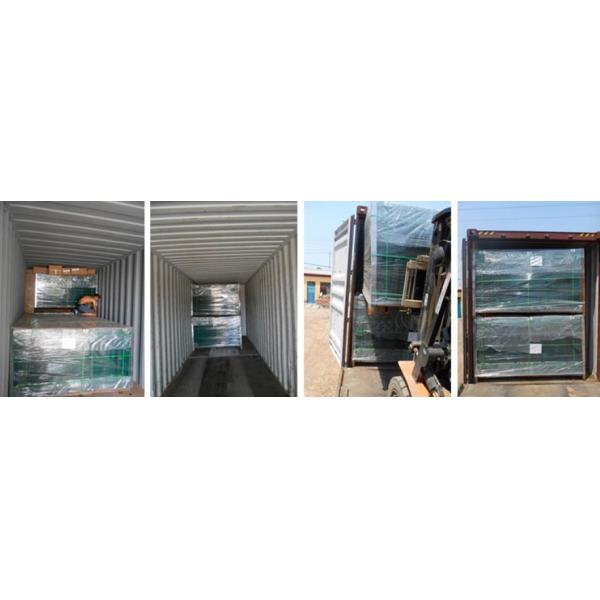

Package

SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized
SGS Roll Top 4mm Welded Wire Mesh Panel Fence 50 X 200mm Galvanized

Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.

Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.

Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
