17-4PH Spherical Powder Grade GP1 Stainless Steel Powders For Additive Manufacturing
17-4PH Spherical Powder Grade GP1 Stainless Steel Powders For Additive Manufacturing
Specifications
Brand Name :
WL
Model Number :
WL-AM 17-4PH
Place of Origin :
China
MOQ :
5KG
Payment Terms :
L/C, T/T
Supply Ability :
300 tons per month
Delivery Time :
within 10 days
Packaging Details :
5kg/bottles, 5 bottles pack in one carton
Price :
Negotiable
Product Name :
17-4PH 3D Printing Metal Powder
Shape :
Powder
Applicable Process :
SLM
Particle Size Distribution :
15~53um/15-45um
Hall Flow Rate S/50g :
17s/50g
Bulk Density G/cm³ :
4.0
Tap Density :
4.6
Oxygen Content :
≤650ppm
Certificate :
ISO 9001
Sphericity :
≥0.9
Description

17-4PH Spherical Powder Grade GP1 3D Printing Metal Powder Stainless Steel Powders For Additive Manufacturing

Description

17-4PH alloy is a martensitic precipitation hardening stainless steel with good corrosion resistance, suitable for making shafts and steam turbine parts, etc. 17-4PH is a low-carbon, high-chromium precipitation-hardening stainless steel. By adding strengthening elements such as Cu and Nb, the second phase strengthening particles such as ε-Cu and NbC are precipitated during the aging process to improve hardness and strength, and have good corrosion resistance.

Grade:17-4PH, similar grade GP1

Chemical composition:

17-4PH Chemical Composition (wt.%)
Element Standard Tested
Fe bal bal
Cr 15-17.5 17.01
Ni 3-5 4.69
Cu 3-5 4.03
Mn ≤1.0 0.59
Si ≤1.0 0.26
Nb 0.15-0.45 0.34
P ≤0.04 0.012
S ≤0.03 0.007
C ≤0.07 0.04
O / 0.069

SEM:

17-4PH Spherical Powder Grade GP1 Stainless Steel Powders For Additive Manufacturing

Flowability:

Particle Size 0~15μm 15~53μm 45~105μm 53~150μm
Flowablity(a) × ≤55s ≤50s ≤50s

Particle Size Distribution:

17-4PH Spherical Powder Grade GP1 Stainless Steel Powders For Additive Manufacturing

Applications

Pump shafts, valve stems, braces, fasteners, coupling, rocket and missile components, hydraulic actuators, and wear rings.

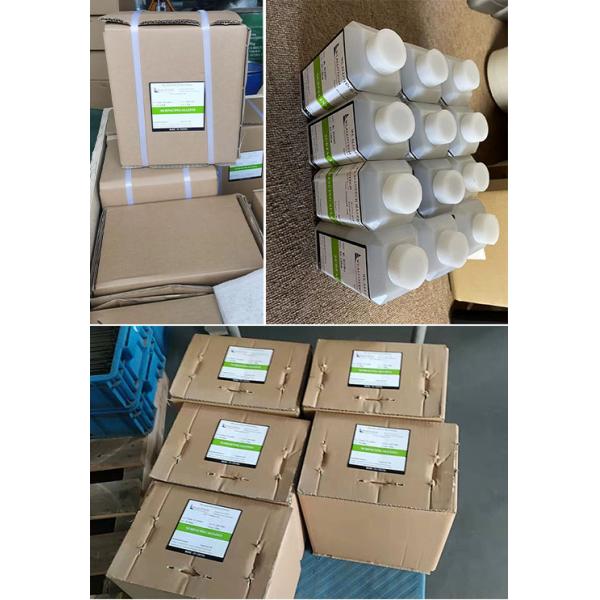

Packing Details
Product specifications: 0-45μm, 0-53μm, 15-45μm, 15-53μm, 45-150μm.

(Various particle size metal powders can be customized according to customer requirements)

17-4PH Spherical Powder Grade GP1 Stainless Steel Powders For Additive Manufacturing

Type We Could Offer

Main products list of 3D printing powder
Product name Alloy Grade Appearance Purity particle size
Aluminum powder WL-AlSi10Mg Sliver powder 99.90% 15-58μm
Aluminum powder WL-AISi10Mg Sliver powder 99.90% 15-58μm
Nickel based superalloy powder WL-IN625 Gray powder 99.90% 15-53μm
Nickel based superalloy powder WL-IN718 Gray powder 99.92% 15-53μm
Cobalt-chromium alloy powder WL-CoCrMo Sliver powder 99.80% 15-54μm
Cobalt-chromium alloy powder WLCoCrW Sliver powder 99.80% 15-55μm
Titanium alloy powder WL-TC4 Sliver powder 99.85% 15-53μm
Stainless steel powder WL-316L Sliver powder 99.92% 15-53μm
