SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll
SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll
SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll
SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll
Specifications
Brand Name :
WL
Model Number :
WL-SS420
Place of Origin :
China
MOQ :
5KG
Payment Terms :
L/C, T/T
Supply Ability :
300 tons per month
Delivery Time :
within 10 days
Packaging Details :
15kg/spool
Diameter :
1.6/2.0/3.17mm
Typical Hardness :
HRB 40-45
Bond Strength :
6500 psi
Deposit Rate :
10 lbs /hr/100A
Deposit Efficiency :
70%
Wire Coverage :
0.8 oz/spft2 /mil
Surface Texture :
*Variable
Corrosion Resistance :
Good
Certificate :
ISO 9001
Surface :
Bright
Spool Type :
No Recycled Material
Spray Wire State :
Semi-hard State
Price :
Negotiable
Description

SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll

Product Description

SS 420 is a stainless steel wire, specifically designed for arc spray processes. SS420 forms a dense, well bonded coating, with excellent wear resistance and good corrosion resistance. It is widely used for machine elements repair, dimensional restoration, and wear resistant application. SS420’s low shrink rate characteristics, allows for increased coating thickness on parts requiring heavier coatings.

Equivalent to: Tafa 60T, Metcoloy 2, PMET 720

Surface Preparation

Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.

Chemical Composition(wt%)

Cr C Mn Si Ni Fe
13.0 0.35 0.6 0.5 0.5 Bal.

RECOMMENDED SPRAY PARAMETERS

Diameter Air Pressure Voltage Amperage Standoff
1.6mm *50 - 60 psi *28 - 30 *100 - 200 *4 – 6 in (10 - 15cm)

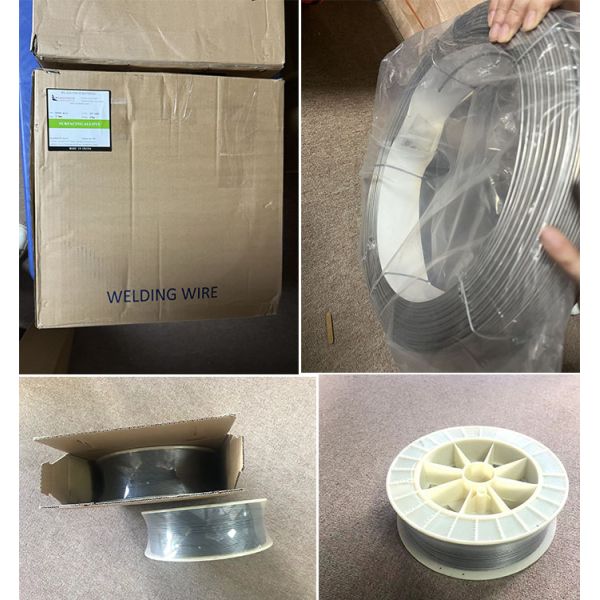

Packing Details

Diameter DimensionTolerance Packing Wire Weight
1/16"(1.6mm) +0/-0.05 D 300 Spool 15kgs(33 lbs)/spool
2.0mm +0/-0.05 D 300 Spool 15kgs(33 lbs)/spool
1/8"(3.17mm) +0/-0.05 Coil Form 20-400kgs/coil

SS420 Wire For Thermal Spray Wire Metcoloy 2/Tafa 60T/PMET 720 For Arc Coating Parts Restoration Paper Roll

Applications

Paper Roll

Parts Restoration

Type We Could Offer

Thermal spray wire-Nickel based

WL TYPE Tafa PMET Metco Size
WL-NiAl95/5 75B 885 8400 1.6/2.0/3.17mm
WL-NiAl80/20 79B 884 405 2.0/3.17mm
WL-NiCr80/20 06C 821 8450 1.6/2.0/3.17mm
WL-Monel400 70T 877 Monel 1.6/2.0/3.17mm
WL-NiCrTi 45CT 889 8500 1.6/2.0/3.17mm
WL-Inconel718 78T 818 8718 1.6/2.0/3.17mm
WL-Inconel625 71T 860 8625 1.6/2.0/3.17mm
WL-Alloy-C276 77T 876 8276 1.6/2.0/3.17mm
WL-NiCrAl(P) 73MXC 886 8443 1.6/2.0mm
WL-NiCrAlY(P) 76MXC 887 884 1.6/2.0mm
WL-NiMoAl(P) 74MXC 888 8447 1.6/2.0mm

Thermal spray wire-Iron based

WL TYPE Tafa PMET Metco Size
WL-SS420 60T 720 Metcoloy 2 1.6/2.0/3.17mm
WL-SS304/304L 80T 710 Metcoloy 1 1.6/2.0/3.17mm
WL-SS316/316L 85T 730 Metcoloy 4 1.6/2.0/3.17mm
WL-FeCrAl Alcro 731 1.6/2.0mm
WL-FeCrBSi(P) 95MXC 273 1.6/2.0mm
WL-FeCrNiB(P) 96MXC 1.6/2.0mm
WL-Tungsten Carbide(P) 97MXC 297 Duocor 1.6/2.0mm
WL-LCr Carbide(P) 98MXC 223 1.6/2.0mm
WL-FeAl(P) 35MXC 50 1.6/2.0mm
WL-HCr Carbide(P) 226 Sm8222 1.6/2.0mm

Thermal spray wire-Copper based

WL TYPE Tafa PMET Metco Size
WL-Pure Copper 1.6/2.0/3.17mm
WL-CuSn1 05T 1.6/2.0/3.17mm
WL-CuAl8 Sprabronze AB 1.6/2.0/3.17mm
WL-CuAl10 10T 590 Sprabronze AA 1.6/2.0/3.17mm

Thermal spray wire-Zinc & Aluminium based

WL TYPE Tafa PMET Metco Size
WL-Pure Al 01T 699 Aluminum 1.6/2.0/3.17mm
WL-Pure Al Grade 1100 1.6/2.0/3.17mm
WL-Pure Zn 02Z 540 Zinc 1.6/2.0/3.17mm
WL-AlMg5 Metco AlMg 1.6/2.0/3.17mm
WL-ZnAl85/15 02A Zn/Al 1.6/2.0/3.17mm

Thermal spray wire-Other based alloy

WL TYPE Tafa PMET Metco Size
WL-Molybdenum wire 13T 899 Sprabond 1.6/2.0/3.17mm
WL-Babbitt wire 04T 542 Sprababbitt 1.6/2.0/3.17mm
WL-Tin wire 02W 549 Metco Tin 1.6/2.0mm
WL-Ti wire 14T 1.6/2.0mm
