SS 316 Tafa 85T Thermal Spray Wire Part Restoration Food Industry Rolls Alloy Wire
SS 316 Tafa 85T Thermal Spray Wire Part Restoration Food Industry Rolls Alloy Wire
Specifications
Brand Name :
WL-ALLOTECH
Model Number :
SS 316 wire
Place of Origin :
China
MOQ :
5kg
Payment Terms :
L/C, T/T
Supply Ability :
300 tons per month
Delivery Time :
within 10 days
Packaging Details :
15kg/spool,
Price :
Negotiable
Air Pressure :
*50 - 60 psi
Voltage :
*28-30
Amperage :
*100 - 200
Standoff :
*4-6 in (10-15cm)
Hardness :
90-100
Bond Strength :
6750 psi
Deposit Rate :
10 lbs /hr/100A
Deposit Efficiency :
75%
Wire Coverage :
0.8 oz / ft2 / mil
Machine ability :
Good
Spool Type :
No recycled material
Spray wire state :
Semi-hard state
certificate :
ISO 9001
Test Report :
Mill-certificate
Surface :
Bright
Dimensions :
1.6mm, 2.0 mm, 3.17 mm
Description

SS 316 Tafa 85T Iron Base Alloy Thermal Spray Wire Part Restoration Food Industry Rolls Alloy Wire

Product Description

SS316 is an 316 stainless steel wire specifically designed for arc spraying. It produces dense,well-bonded coatings with excellent machine ability and wear and corrosion resistance. SS316 is widely used for machine element repair, dimensional restoration and wear resistance applications. It has relatively high shrink characteristics and should not be used for coatings over 0.075 inches thick.

Equivalent to: Metcoloy 4, Tafa 85T, PMET 730


Surface Preparation

Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning. Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.

Chemical Composition(%)

Cr

Ni

Mn

Si

Fe

C

Mo

17.0

12.0

2.0

1.0

Bal

0.08

2.0-3.0


Typical Deposit Characteristics

Typical Hardness Bond Strength Deposit Rate Deposit Efficiency Wire Coverage Surface Texture Machine ability
HRB 90-100 6750 psi 10 lbs /hr/100A 75% 0.8 oz/ft2 / m *Variable Good

Recommended Spray Parameters

Diameter Air Pressure Voltage Amperage Standoff
1.6mm *50 - 60 psi *28 - 30 *100 - 200 *4 – 6 in (10 - 15cm)

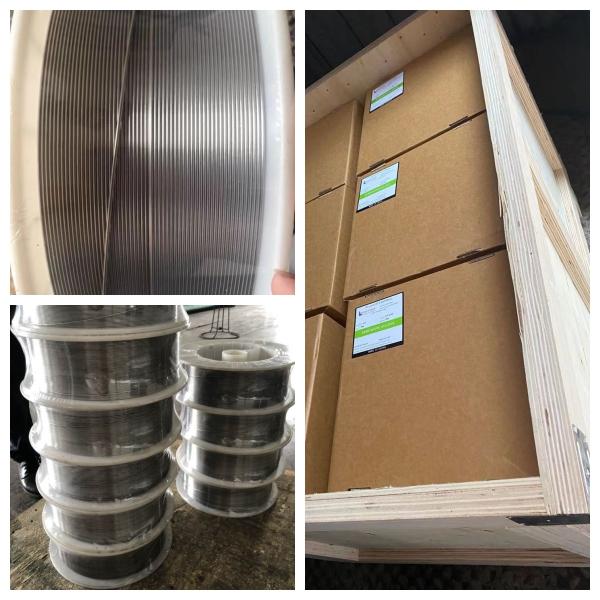

Packing Details

Diameter DimensionTolerance Packing Wire Weight
1/16"(1.6mm) +0/-0.05 D 300 Spool 15kgs(33 lbs)/spool
2.0mm +0/-0.05 D 300 Spool 15kgs(33 lbs)/spool
1/8"(3.17mm) +0/-0.05 Coil Form 20-400kgs/coil

SS 316 Tafa 85T Thermal Spray Wire Part Restoration Food Industry Rolls Alloy Wire

Applications

• Part Restoration

• Food Industry Rolls

Type We Could Offer

Thermal spray wire-Nickel based

WL TYPE Tafa PMET Metco Size
WL-NiAl95/5 75B 885 8400 1.6/2.0/3.17mm
WL-NiAl80/20 79B 884 405 2.0/3.17mm
WL-NiCr80/20 06C 821 8450 1.6/2.0/3.17mm
WL-Monel400 70T 877 Monel 1.6/2.0/3.17mm
WL-NiCrTi 45CT 889 8500 1.6/2.0/3.17mm
WL-Inconel718 78T 818 8718 1.6/2.0/3.17mm
WL-Inconel625 71T 860 8625 1.6/2.0/3.17mm
WL-Alloy-C276 77T 876 8276 1.6/2.0/3.17mm
WL-NiCrAl(P) 73MXC 886 8443 1.6/2.0mm
WL-NiCrAlY(P) 76MXC 887 884 1.6/2.0mm
WL-NiMoAl(P) 74MXC 888 8447 1.6/2.0mm

Thermal spray wire-Iron based

WL TYPE Tafa PMET Metco Size
WL-SS420 60T 720 Metcoloy 2 1.6/2.0/3.17mm
WL-SS304/304L 80T 710 Metcoloy 1 1.6/2.0/3.17mm
WL-SS316/316L 85T 730 Metcoloy 4 1.6/2.0/3.17mm
WL-FeCrAl Alcro 731 1.6/2.0mm
WL-FeCrBSi(P) 95MXC 273 1.6/2.0mm
WL-FeCrNiB(P) 96MXC 1.6/2.0mm
WL-Tungsten Carbide(P) 97MXC 297 Duocor 1.6/2.0mm
WL-LCr Carbide(P) 98MXC 223 1.6/2.0mm
WL-FeAl(P) 35MXC 50 1.6/2.0mm
WL-HCr Carbide(P) 226 Sm8222 1.6/2.0mm

Thermal spray wire-Copper based

WL TYPE Tafa PMET Metco Size
WL-Pure Copper 1.6/2.0/3.17mm
WL-CuSn1 05T 1.6/2.0/3.17mm
WL-CuAl8 Sprabronze AB 1.6/2.0/3.17mm
WL-CuAl10 10T 590 Sprabronze AA 1.6/2.0/3.17mm

Thermal spray wire-Zinc & Aluminium based

WL TYPE Tafa PMET Metco Size
WL-Pure Al 01T 699 Aluminum 1.6/2.0/3.17mm
WL-Pure Al Grade 1100 1.6/2.0/3.17mm
WL-Pure Zn 02Z 540 Zinc 1.6/2.0/3.17mm
WL-AlMg5 Metco AlMg 1.6/2.0/3.17mm
WL-ZnAl85/15 02A Zn/Al 1.6/2.0/3.17mm

Thermal spray wire-Other based alloy

WL TYPE Tafa PMET Metco Size
WL-Molybdenum wire 13T 899 Sprabond 1.6/2.0/3.17mm
WL-Babbitt wire 04T 542 Sprababbitt 1.6/2.0/3.17mm
WL-Tin wire 02W 549 Metco Tin 1.6/2.0mm
WL-Ti wire 14T 1.6/2.0mm
