Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
Specifications
Brand Name :
GuoXing
Model Number :
GX-Series001
Certification :
CE
Place of Origin :
China Anping
MOQ :
50Sets
Price :
by inquiry
Payment Terms :
T/T
Supply Ability :
2000 Sets/15 Days
Delivery Time :
within 15 days
Packaging Details :
According to your requirement
name :
garden wire mesh fencing
Feature :
Easily Assembled
Material :
Q195
Mesh Size :
50X200
Wire diameter :
3.00-5.00mm
Frame Finishing :
Powder Coated
Post :
SHS(Square Post)
Color :
Customers' Requirments
Description

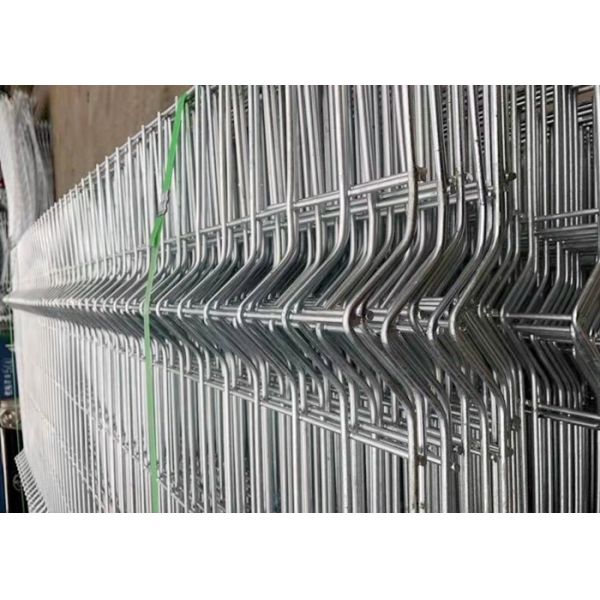

Anping Factory 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh

As an economical type of fence system, welded wire mesh mesh fence is a kind of 3D fence with longitudinal folds, which makes the fence stronger. The fence panel is welded by high quality low carbon steel wire.

Welded Wire Mesh Fence Panels Product description

The 3D fence panels are 2500mm wide and heights range from 630 to 2430mm.

Mesh sizes of 3D fence panels are 200mm x 50mm,and 200mm x 55mm for the beam sections.
Heavy wires, with a diameter of 4mm or 5mm guarantee a high level of rigidity.

Welded Wire Mesh Fence Panels Colors

Standard colors are Green RAL6005,Black RAL9005,Gray RAL7016,Brown RAL8014,
Other color are available on request.

1. Technical: electro-galvanized wire or hot-dipped galvanized wire, then welding + PVC coating

2. Size: 1,530 x 1,500, 1,730 x 1,700, 2,030 x 2,000mm

3. Color: green (RAL6005) or as customer's requirements

4. Curved quantity: 2, 3, 4

5. Mesh size: 200 x 50mm

6. Matching accessories: posts, caps, clamps, screws

7. Packaging: 100 or 125pcs/pallet

Welded mesh

Fence panels

 Panel Height 600mm-3000mm
Panel Width 2000mm-3000mm
Wire Diameter 3mm-6mm
Hole opening 50x50mm,50x100mm,50x150mm,50x200 mm, 65x200mm
Material low carbon steel wire, galvanized wire
Surface treatment Electric galvanized, hot dipped galvanized, powder coated and PVC coated
Curve On customer request

welded mesh

Fence post

 Square Post 40x60x2mm or 40x60x1.5 mm,60x60x2mm,60x80x2mm,80x80x2mm
Peace Post 100x70mmx1.2mm
Post height According to fence panel height, (Normal 0.65-4m)
Finish Hot dipped galvanizing, powder coated
Accessories Post cap, clamps, bolts and nuts
Fence Color Any RAL Series color(Normal RAL 6005 Dark green, RAL 9005 Black)

Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh

Our Service

1. More colors: RAL6005 GREEN, RAL7016 GRAY, RAL9005 BLACK, RAL9010 WHITE, RAL8014 BROWN, etc…

2. High quality: we promise all material dimensions are strictly according to customers' requests.

3. Inspection: We have very strict inspection department. They are in charge of the whole process of production and package. To be sure that all the products are in the good condition.

4. Home garden building wire mesh fence

5. Field wire mesh fence

6. School or playground protecting

7. Highway, railway protecting.

8. Supermarket parking wire mesh fencing

9. It is also suitable for parks, zoos, or business buildings.

Welded Mesh Fence Panel Packing
1> There is a piece of plastic film(with small bubbles), which can protect the first piece of panel destroyed by the metal pallet.
2> A metal corners fixed at each corner of the panels, which can keep the panels stay together and immovable
3> Metal Gaskets will protect the edge of panels..
4> The wood panels on the panels can protect the last panel destroyed by other pallets.

1. Q-- Can you offer samples?

A-- Of course, free samples are always here for you.
2. Q-- What is the material of wire you use for your fence products?
A--The material we are using for fence products are all Q195.
3. Q-- Are you a factory?
A--Yes, we are a factory professional in this area more than 15 years.
4. Q-- What type of payment do you accept?
A--- We accept T/T (30% +70%), L/C, Cash
5 Q-- How long is your delivery time?
A--Gernerally it is 10 days if at stock. Or it needs 20-30days. That depends on your order quantity.

Economical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm MeshEconomical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm MeshEconomical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm MeshEconomical 3D Folded V Shape Welded Wire Mesh Fence Panels With 55x200mm Mesh
