Hot Dip Galvanized "D" Type and "W" Type Palisade Fence

1) material: high quality steel sheet, hot dipped aluminum-galvanized steel sheet, cold rolled steel and hot rolled steel
2) palisade fence Pale
a. W section pale

"w" section is available in 3 thicknesses
2.0mm-----General Purpose
2.5mm------Specurity Purpose
3.0mm-------Special order

Pale Heads

Triple pointed top
Single pointed top
round and Notch top

Palisade fence:

• Height: 2100, 2400 and 3000mm heights are available

  • Paling profiles: available in 2 standard profiles-‘W’ profile and ‘D’ profile.

  • Paling tops: available in 5 standard tops, single point-triple point-square-round-notched

  • Paling thickness

  • Available in 3 standard gauges, 2.0-2.5-3.0mm

• Horizontals:

  • Available in 2 standard sizes according to height and site requirements-50x50x6mm or 65x50x6mm

• Posts:

  • 100x55 IPE (European steel I-beams)

  • Available with welded fishplates or slotted for use with loose fishplates

  • Can be concreted-in, base plated for bolting down or cranked

  • Posts can be vertically extended to accommodate barbed or razor wire

• Panels:

  • 2750mm wide panels (centre post-to -centre post) can be easily raked to allow for most site conditions

• Fixings:

  • All fixings are tamper-proof and anti-vandal

  • M8x25LG ‘T’ HD bolts and cones

• Fixings per post:

  • 2100mm (H)-102x44

  • 2400mm (H)-102x44

  • 3000mm (H)-127x76

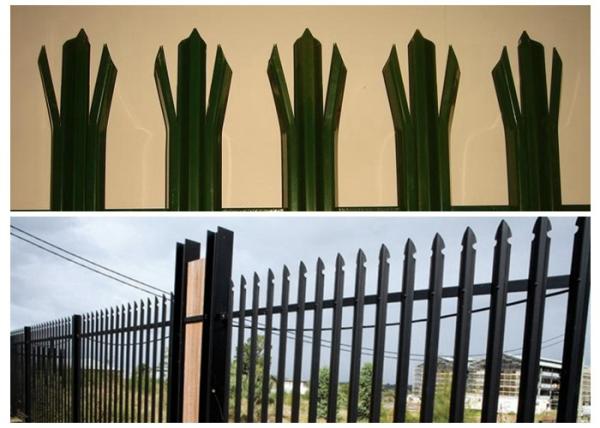

The Picture As Following is the Palisade Fence After Powder Coated :

Palisade fencing, as effective security fencing, is the widest used type in the UK. The forbidding appearance, inherent strength and high damage resistance make the palisade fencing one of the best choices of premise protection.

Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.

Normally

1: Fence panels are wrapped with plastic band, plastic film then packed in a pallet to remain intact.
2: Each fence post is wrapped in a plastic bag, then panels are packed in pallet or in bulk.

3: Accessories are packed in plastic bags then put in cartons.

Process: stamping, hot-dipped, Powder coated, PVC anti-corrosion treatment.

Package can also be on customers' request.

Welcome your enquiry,we are factoyr,could offer you Better Quality and Competitive Price/
