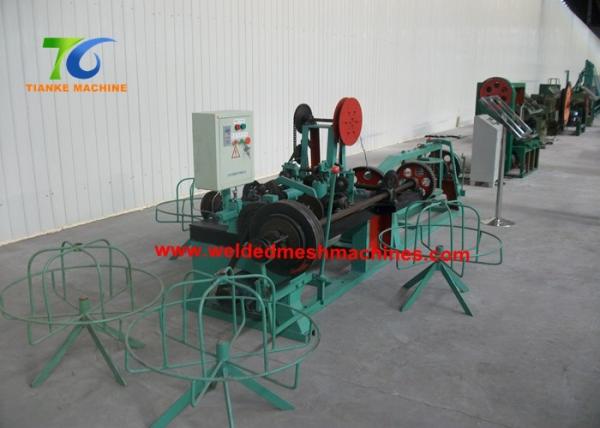

2.2KW Barbed Fencing Wire Making Machine 2.8mm PVC Coated Wire
2.2KW Barbed Fencing Wire Making Machine 2.8mm PVC Coated Wire
Specifications
Brand Name :
Tianke
Model Number :
TK-CS-A
Place of Origin :
Hebei,China
MOQ :
One Set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
30 sets/month
Delivery Time :
7 work days
Packaging Details :
The main machine will be fixed in the container by steel wire rope to make it stable.
Product Name :
Barbed Wire Fence Making Machine
Machine Type :
Full automatic barbed wire machine
Material :
PVC Coated Wire,Galvanized Wire,black wire
Motor :
2.2 kw
Advantage :
High speed,high output
Core Wire Diameter :
1.6 - 3.0mm
Barbed Wire Diameter :
1.6 - 2.8mm
Production Capacity :
20 meter/h
Core Components :
PLC,Motor
Barb Space :
3" , 4" , 5" , 6"
Finish Product :
Barbed Wire in rolls
Usage :
Making security fence in border,livestock feeding,etc.
Weight :
1000 kg
Warranty :
12 months
Description

Barbed Wire Fence In Uganda Market Barbed Wire Fence Making Machine

Barbed Wire Fence Making Machine Description

This machine can produce positive and negative twisted barbed wire which is widely used in national defense, military, railway, highway, animal husbandry and other industries.

The materials used for positive and negative twisted barbed wire are usually hot dipped galvanized wire, electric galvanized wire etc.

Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.

Barbed Wire Fence Making Machine Advantage

1. The machine is full automatic barbed wire making machine.The core wire and the barb wire is feeding by wire coils.The worker only need to fill when the material is used up and unload the finished barbed wire rolls.

2. Machine accessories platform steel plate is processed by grinding machine, the surface is smooth. Laser cutting, drilling integrated molding. Accurate size, no deformation.

3. Machine through gear transmission, durable, low noise.

4. The machine control system has buttons with English label.Easy to learn how to run the machine.

Barbed Wire Fence Making Machine Parameter

Items CS-A CS-B CS-C
Main wire Diameter

1.5-3.0mm

(Max.800MPA)

2.0-3.0mm

(Max.1700MPA)

1.6-2.8mm

(Max.1300MPA)
Barbed wire diameter

1.6-2.8mm

(Max.700MPA)

1.6-2.8mm

(Max.700MPA)

1.4-2.8mm

(Max.700MPA)
Barbed space 3”, 4”, 5” 4”, 5” 4”, 5”
Motor power 2.2kw 2.2kw 2.2kw
Twisted number 3-5 7
Raw material Galvanized wire or PVC coated wire. Galvanized wire Galvanized wire
Production

70kg/h,

25 meters/minute

40kg/h,

18 meters/minute

50kg/h,

18 meters/minute
Total weight 1200KG 1000KG 1000KG
Dimension 1950×950×1300mm 3100×1000×1150mm 3100×1000×1150mm
1760x550x760mm


Processing Technology

Core wire is twisted automatically when they are fed forward.

2.2KW Barbed Fencing Wire Making Machine 2.8mm PVC Coated Wire

Control System

There are start button, stop button and emergency stop button on the electric box.

The counter can set the output automatically.

2.2KW Barbed Fencing Wire Making Machine 2.8mm PVC Coated Wire

Barbed Wire Delivery Wheel

Because barbed wire has thorns,so the machine uses a special delivery wheel to send the finished barbed wire.

2.2KW Barbed Fencing Wire Making Machine 2.8mm PVC Coated Wire
