Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H
Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H
Specifications
Brand Name :
Tianke
Model Number :
TK-GHJ3000
Place of Origin :
Hebei,China
MOQ :
One set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
25 sets/month
Delivery Time :
5 work days
Packaging Details :
Nude packing in container
Product Name :
Chain Link Fence Machine
Wire Diameter :
1.5 - 3.0 mm
Wire Feeding :
Wire coils
Advantage :
Full Automatic
Material :
PVC coated wire coils,galvanized wire coils
Mesh Length :
Customized
Mesh Size :
30-80mm
Speed :
120-180m²/h
Mesh Width :
0.5-4m
Mesh Edge :
Knuckled and twisted
Description

Semi Auto Wire Woven Mesh With Diamond Hole Chain Link Fence Machine

Chain Link Fence Machine Description

Chain Link Fence is a kind of weaving fence.Usually its mesh hole is diamond.The chain link fence machine is equipped with different molds to make diamond mesh of different sizes.When the diamond mesh wire reach the length pre-set,the cutter will cut the diamond mesh wire.The Diamond mesh wire will be woven into chain link fence automatically.The chain link fence machine is equipped with PLC visual touch screen.There are Chinese and English in the control system.

Chain Link Fence Machine Application

The chain link fence can be used as wire mesh fence.It is widely used in the fence of the stadium,mesh fence in farm,residence community security fence.

Chain Link Fence Machine Packaging and shipping

1. One 20 foot container can hold two machines.The machine is nude packing in the container,it will be fixed in the container by steel wire rope to make it stable.

2. After receiving 30% advance payment, we arrange production.It takes 5 days to produce, and then deliver.

3. Port of shipment Tianjin Port

Chain Link Fence Machine Parameter

Type Single Wire Double Wire
Wire diameter 1.2-4mm 2-4mm
Mesh size 20-100mm 25-100mm
Mesh width 0.5-4m 0.5-4m
Speed 70-80m²/h 120-180m²/h
Mesh length 30m, adjustable freely as your request
Mesh side Knuckled and twisted, or knuckle, or twisted
Raw material Galvanized wire, PVC coated wire, etc.
Machine size 4.2*2.2*1.7m 6.7*1.43*1.8m
Weight 2500kg 4200kg

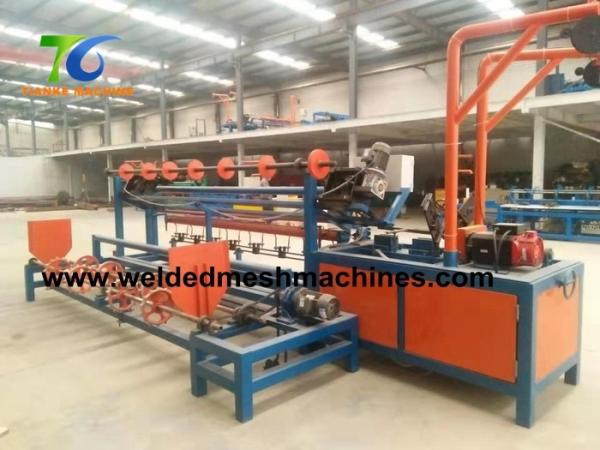

Double wire Chain Link Fence Machine Display

Automatic locking device

The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted.

Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H

Automatic roll netting device

When the chain link fence is weaving,the roll netting device will automatically roll the chain link fence at the same time.

Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H

Fence Edge

The fence has three types of automatic locking: Knuckled and twisted, or knuckle, or twisted

Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H

Finish Fence and Application

Semi Auto 30mm 80mm Diamond Mesh Wire Making Machine 180m2/H
