3.8KW Fencing Net Making Machine 1.2mm Chain Link Fence Equipment
3.8KW Fencing Net Making Machine 1.2mm Chain Link Fence Equipment
Specifications
Brand Name :
Tianke
Model Number :
TK-GHJ5000
Place of Origin :
Hebei,China
MOQ :
One set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
25 sets/month
Delivery Time :
5 work days
Packaging Details :
Nude packing in container
Product Name :
Hook wire mesh making machine
Wire Diameter :
1.2-4.0 mm
Advantage :
High speed
Working mode of the machine :
Full automatic
Control :
PLC visual touch screen
Wire Feeding power :
Sever motor
Type :
Weave mesh machine
Finish Product :
Chain Link Fence in rolls
Material :
PVC coated wire ,galvanized wire
After-sales service provided :
Engineers available to service machinery oversea,Video technical support,Field installation
Mesh Width :
Max.6m
Usage :
Used as mesh fence in playground,residence community
Description

India Chain Link Fence Weave Netting Hook Wire Mesh Making Machine

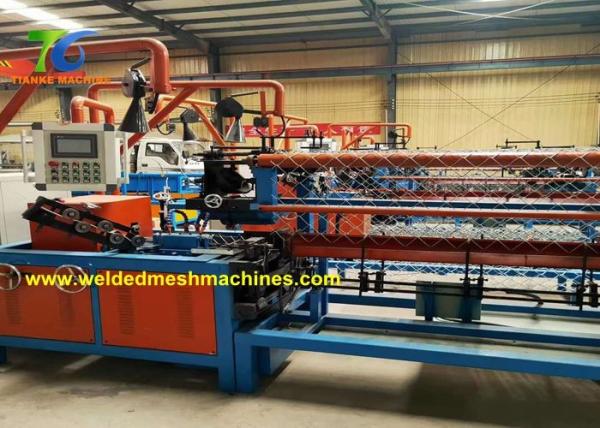

Introduction of Hook Wire Mesh Making Machine

Hook wire mesh making machine is chain link making machine.This machine can make chain link fence,a kind of weave mesh.This machine is full automatic.One worker can operate several machines.The machine is equipped with PLC visual touch screen control system.The power is servo motor.So the machine runs stably with high accuracy.

Hook Wire Mesh Making Machine Advantage

1. We usually famous brand servo motor brand,and other electric oomponents are all high quality.So our machine runs in high speed and high output.

2. The machine is equipped with sever motor,so this machine Instantaneous power is not high, around 7 degree electricity per hour.

3. The machine does not require high power supply.Common people and small factory can use this machine.

4. After finish production,we will install and debug machines in the factory, and send live videos to our customers.so that customers can clearly know the situation of the machine.

Hook Wire Mesh Making Machine Parameter

Servo Motor 3.8KW
Cutting Motor 1.5KW
Handflip Motor 1.5KW
Locating Pin Motor 0.75KW
Edge Wire Machine motor 1.5KW
Rolling Machine Motor 1.5KW


Hook Wire Mesh Making Machine Technology

The machine has single wire and double wire two types..All the two types are full automatic.The wire is feeding by servo motor going through the mould dies.There is wire drawing soapy water to lubricate the iron wire and the mould,so as to prolong the service life of the mould.You can choose twisted edge and knuckled edge.The two kinds of edge is made by different locking device.
