SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
Specifications
Brand Name :
Hongbao
Model Number :
BHG1
Place of Origin :
Jiangsu, China
Certification :
ISO
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30000MT per year
Delivery Time :
15 working days
Packaging Details :
Seaworthy plywooden case packaging
Material :
BHG1, SPCC, SPCD-SD, SPCD, SPCE
Standard :
ASTM, GB
Thickness :
0.45-1.5mm
Shape :
Coil
Application :
Refrigeration
High Light :
Welded steel tubing
Description

Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration

Description:

Zinc Coated ERW Steel Tube for refrigeration, is manufactured through Electric Resistance Welding (ERW) process and then coated with zinc to prevent rust and corrosion. It is widely used in refrigeration systems due to its excellent durability and resistance to low temperatures.

1.Main use: widely used in evaporators, refrigerators, automobiles and heaters
2.Features: high intensity, good plasticity, and small resistance
3.Standard: ASTMA254-94
4.Materials: materials can be altered according to customers' requirements
5.Size: 4.7*0.7mm, 6.35*0.7mm,
6.Type: Zinc coating outer side, Cu coating outer side, Cu coating both sides

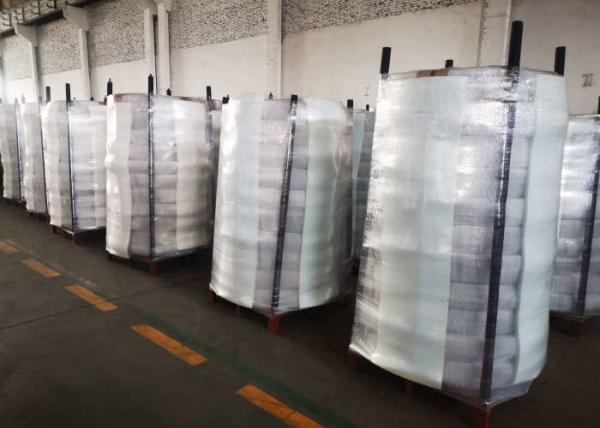

7.Packing: packed with iron pallet

8.Grade: Low carbon steel tube

9.Size: 4mm-10mm

10.Standard: ASTM A254

11.Certification: ISO9001, ROHS

Features:

1.Economic

2.Smooth outer surface

3.Maintaining inner cleanliness to the max. of 0.1948g/m2

4.Durability with air-tightness against vibration and impact

5.Diverse processing available

Property:

1.Tensile Strength:≥290MPa

2.Yield Strength:≥200MPa

3.Elongation:≥40%

4.Flaring TestFlaring:≥25%

5.Or produce according to technical required.

Material:

Type C Si Mn P S
Cold Rollled Low Carbon Steel ≤0.08 ≤0.03 ≤0.30 ≤0.030 ≤0.030
Cold Rolled Ultra-Low Carbon Steel ≤0.008 ≤0.03 ≤0.25 ≤0.020 ≤0.030

Usual Diameter:

4, 4.2, 4.76, 6, 6.35, 7.8,

4-12 could be all available in production.

Usual Thickness:

0.5, 0.65, 0.7,

0.45-1.5 could be all avaliable in production.

Auunal Output:

30000MT

Advantage:

Surface coated copper or zinc avaliable, time of salt spray testing reach to 240 hours.

O.D(mm) THICKNESS(mm) UNIT WEIGHT(g/m) WORK PRESSURE(kg/㎡)
4.00 0.5 43.16 350
4.00 0.7 56.97 350
4.76 0.6 61.56 350
4.76 0.7 70.00 350
6.00 0.7 91.49 350
6.00 1.0 123.31 350
6.35 0.7 97.54 350
8.00 0.7 126.02 250
8.00 1.0 172.63 250
9.52 1.7 152.26 250
9.52 1.0 210.12 250
10.0 1.7 160.55 250
10.0 1.0 221.95 250
12.0 0.7 195.07 250
12.0 1.0 271.28 250
12.7 0.7 207.16 250
12.7 1.0 288.54 250

:

SPCC OD4 WT0.5 Zinc Coated ERW Steel Tube, Low Carbon Tube For Refrigeration
