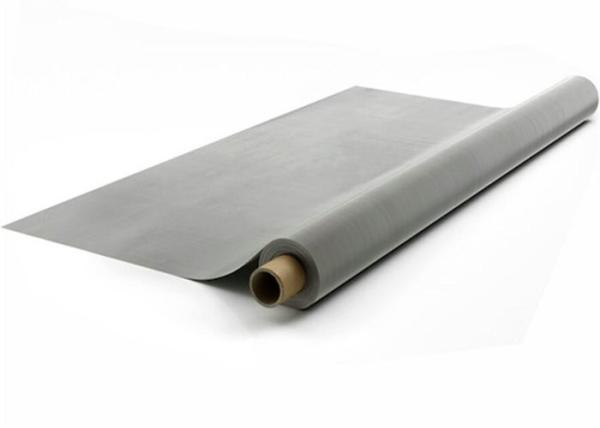

120 Mesh 304 Stainless Steel Wire Mesh Plain Weave For Filter
120 Mesh 304 Stainless Steel Wire Mesh Plain Weave For Filter
120 Mesh 304 Stainless Steel Wire Mesh Plain Weave For Filter
120 Mesh 304 Stainless Steel Wire Mesh Plain Weave For Filter
Specifications
Brand Name :
Hehang
Model Number :
SM-08
Certification :
CE Certificate
Place of Origin :
China
MOQ :
10 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6000 Square Meter Per Week
Delivery Time :
20-30 days
Packaging Details :
Inside with paper tube, then waterproof paper covered, finally in a wooden case or pallet.
Product Name :
Stianless Steel Wire Mesh
Material :
SS 304, 304L, 316, 316L
Mesh :
2-500 Mesh
Hole Shape :
Square Hole
Width :
0.914m 1.0m 1.22m customized
Length :
30m or as customers require
Color :
Silver
Weave Type :
Plain Weave, Twill Weave
Application :
Filter
HS Code :
73141400
Description

120 Mesh Fine Screen Mesh 304 Stainless Steel Woven Filter Mesh

Stainless Steel Wire Mesh Description

Stainless steel wire mesh is especially versatile because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned. Stainless steel wire mesh is lightweight, strong, has high electrical conductivity, and a low melting point. It also significantly resists atmospheric corrosion.

Material: Stainless Steel 201,304, 304 L, 316 and 316 L
Woven types: plain weave, twill weave, dutch weave.
Wire diameter: 0.025mm-2.0mm
Width : 914mm, 1000mm,1200mm,1500mm,1800mm
Length: 30m or as clients requirement

Stainless Steel Wire Mesh Features

Long service life, wear resistance, the net loss is low.
High fatigue resistance, acid, weak alkali resistance.
The mesh mark light, forming quality is good.
Light weight, easy to transport, set net easy operation.
No seam marking and Flat surface , Not easily cracked.
Long life time and good air permeability.

Normal Specification Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch Wire diameter
(mm)		 Aperture
(mm)		 Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 500mesh 0.025 0.0385

Stainless Steel Wire Mesh Application

It is wildly used in petroleum industry, chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy etc.

Stainless Steel Wire Mesh Workshop

Stainless Steel Wire Mesh Packing

Our Service


1. Reply your enquiry in 24 working hours;

2. Experienced staffs will answer all your questions in professional and fluent English;

3. Customized design is available;

4. Samples are free;

5. Special discount can be offered with large quantity;

6. We will try our best to meet your requirements and supply you best quality of the products.
