Corrosion Resistent 18 Mesh SS 304 316l Window Screen High Temperature Stainless Steel Wire Mesh
Corrosion Resistent 18 Mesh SS 304 316l Window Screen High Temperature Stainless Steel Wire Mesh
Corrosion Resistent 18 Mesh SS 304 316l Window Screen High Temperature Stainless Steel Wire Mesh
Corrosion Resistent 18 Mesh SS 304 316l Window Screen High Temperature Stainless Steel Wire Mesh
Specifications
Brand Name :
Hehang
Model Number :
SM-10
Certification :
ISO
Place of Origin :
China
MOQ :
10 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6000 Square Meter Per Week
Delivery Time :
20-30 days
Packaging Details :
Inside with paper tube, then waterproof paper covered, finally in a wooden case or pallet.
Product Name :
Stianless Steel Wire Mesh
Material :
SS 304, 304L, 316, 316L
Mesh :
2-600 Mesh
Hole Shape :
Square Hole
Color :
Silver
Weave :
Plain Weave
Feature :
Corrosion Resistent
Application :
Filter
Samples :
Free
Description

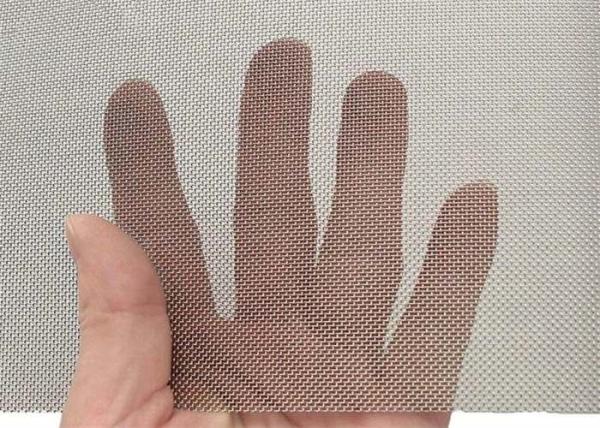

18 Mesh SS 304 Stainless Steel Wire Mesh Window Screen

Stainless Steel Wire Mesh Description

Stainless steel wire and mesh is a type of wire mesh deep-processed product made of high-grade stainless steel wire SUS 304 304L 316 316L.
Stainless steel wire mesh has different weaving methods: plain weave, twill weave, Dutch weave, Reverse Dutch Weave. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no-curl, easy to use, uniform screen thickness, antistatic, anti-acid and alkali resistance Corrosion.

Material: Stainless Steel 201,304, 304 L, 316 and 316 L

Woven types: plain weave, twill weave, dutch weave.
Wire diameter:0.025mm-2.0mm
Width : 914mm, 1000mm,1200mm,1500mm,1800mm
Length: 30m or as clients requirement

Stainless Steel Wire Mesh Features

Acid and alkali resistance
Corrosion and rust resistance
High resistance due to tight wire position
Extreme low absolute grade of fineness
Heat resistance

Normal Specification Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch Wire diameter
(mm)		 Aperture
(mm)		 -- Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 500mesh 0.025 0.0385

Stainless Steel Wire Mesh Application

It is wildly used in petroleum industry, chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy etc.

Stainless Steel Wire Mesh Workshop

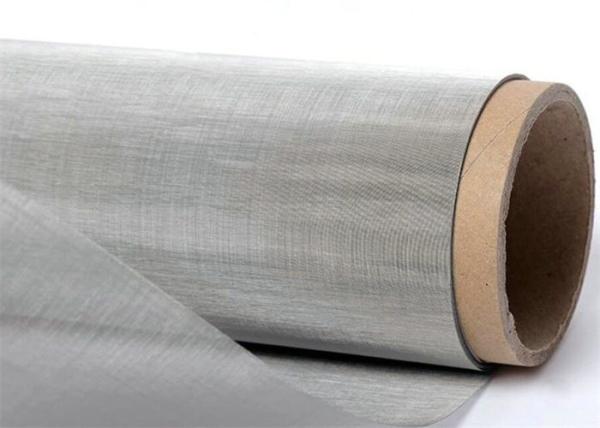

Stainless Steel Wire Mesh Packing

Our Service


1. Reply your enquiry in 24 working hours;

2. Experienced staffs will answer all your questions in professional and fluent English;

3. Customized design is available;

4. Samples are free;

5. Special discount can be offered with large quantity;

6. We will try our best to meet your requirements and supply you best quality of the products.
