Cordierite 20 mm alumina welding ceramic liner
Cordierite 20 mm alumina welding ceramic liner
Cordierite 20 mm alumina welding ceramic liner
Cordierite 20 mm alumina welding ceramic liner
Cordierite 20 mm alumina welding ceramic liner
Cordierite 20 mm alumina welding ceramic liner
Specifications
Brand Name :
Weite ceramics
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
300 meters
Price :
Negotiate
Supply Ability :
100000 meters per month
Packaging Details :
carton
diameter :
∅ 6/8/10/12/15/20mm
Material :
Cordierite ceramics
Range of use :
welding
Features :
High temperature resistance
Name :
ceramic backing wrapped by metal
Application :
Boiler manufacturing
Description

A Variety Of Alumina Welded Ceramic Liners Are Used In Boiler Manufacturing​

Product Overview

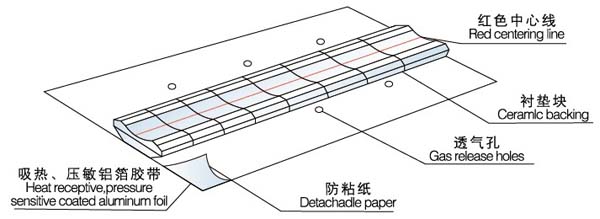

Ceramic welding backing is a kind of ceramic material backed by alumina ceramics. Some people call it welding substrate. It is a widely used ceramic material in the welding process.It is mainly to ensure that the root of the steel material is welded through and the back of the weld is formed. As a preset device along the back of the joint,it is an efficient, high-quality, low-cost welding method that forces the weld to be formed.

Ceramic welding Backups are used for one-sided welding of steel and aluminum alloy with any thickness,instead of two sided welding in shipbuilding industry,marine industry,and heavy mechanical industry.The products are stuitable for the most kinds of welding process such as GMAW,SAW,FCAW and SEG even with high electric current to produce a satisfactory back bead formation. we could provide the backups and the end tab with many specifications,you may get the more detailled catalogue from us if you like.

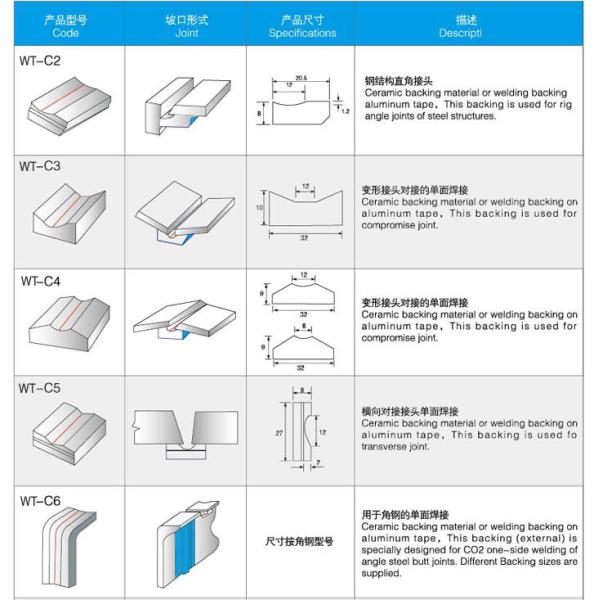

Product parameter table

Model Outside width(mm) Welding slot width (mm) Welding groove depth(mm)
WT-101 27 12 1.2
WT-102 27 9 1.2
WT-103 28 12 1.15

Model Outside width(mm) Welding slot width (mm) Welding groove depth(mm)
WT-401 27 6 1.3
WT-402 27 9 1.3
WT-403 27 13 1.3
WT-404 27 6 1.3
WT-405 27 9 1.3

Cordierite 20 mm alumina welding ceramic liner

Cordierite 20 mm alumina welding ceramic liner

Product advantages
  1. High temperature resistance
  2. preservative
  3. Demagnetization
  4. Electrical insulation
Applications
  • Shipbuilding, bridges, large-scale structural facilities
  • Lighting industry
  • Electronics and electric heating industry

Cordierite 20 mm alumina welding ceramic liner

Cordierite 20 mm alumina welding ceramic liner

Product packaging

Packed in carton

Cordierite 20 mm alumina welding ceramic liner

FAQ

1. Are you a businessman or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What is the product packaging?
Carton or according to customer requirements
