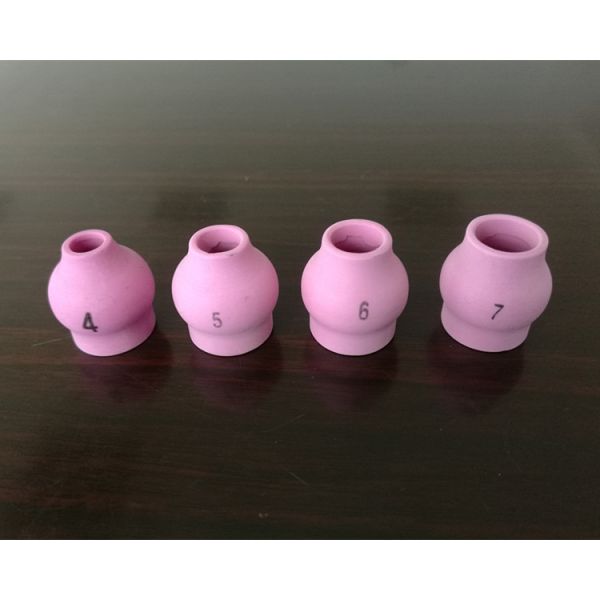

Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Argon arc welding alumina ceramics 133-01 processing parts
Specifications
Brand Name :
Weite ceramics
Model Number :
130-01#
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1500piece
Price :
Negotiate
Supply Ability :
100000 per month
Packaging Details :
carton
Orifice :
6.5mm
colour :
Pink
Features :
High mechanical strength
Model :
130-01#
advantage :
Good electrical insulation
application :
Various welding and cutting operations
Length :
22mm
Material :
95 alumina ceramics
Description

Argon Arc Welding Alumina Welding Ceramic Nozzle 130 - 01 Series

Product Overview

Argon arc welding alumina welding ceramic nozzle series has the characteristics of high temperature resistance, strong reliability, price concessions and so on. Type: a variety of options, total welding torque length: 505 (mm), wall thickness: 1.5 (mm), welding / cutting thickness : 50 (mm), the number of replaceable welding tips: multiple, working pressure: 10 (KN), applicable range: 1600 degrees high temperature.


Alumina nozzle 130 series 01#

Main ingredients: 95% Al2O3 (alumina)

Material properties:

  1. Density 3.6g/cm3
  2. Water absorption rate 0%
  3. Sintering temperature 1700℃

Physical properties:

  1. Hardness 1500HV
  2. Mohs hardness: 8.8Mohs scale
  3. Refractoriness: 2000℃
  4. Flexural strength: 3000Kg/cm2
  5. Compressive strength: 25000Kg/cm2
  6. Fracture toughness: 3--4Map.m
Product parameter table

Size Part Number Length (mm) Orifice (in) Orifice (mm) Torchdesign
NO 4 130-01 22 1/4 6.5 TEC
NO 5 131-01 22 5/16 8.0 TEC
NO 6 132-01 22 3/8 9.5 TEC
NO 7 133-01 22 7/16 11.0 TEC
NO 4 130-11 33 1/4 6.5 TEC
NO 5 131-11 33 5/16 8.0 TEC
NO 6 132-11 33 3/8 9.5 TEC
NO 7 133-11 33 7/16 11.0 TEC

Material

Project

 Alumina AL203 Silicon carbide sic Silicon nitride sin Silicon nitride sin
Color Ivory black black Milky white, gray black
Content(%) 99.5 …… …… ……
Main features
  • Excellent high frequency electrical insulation
  • Good wear resistance
  • preservative
  • Strong
  • High hardness
  • Good high temperature strength
  • High thermal conductivity
  • Strong alkali resistance
  • Wear-resistant
  • Lightweight
  • Good high temperature strength
  • Strong impact resistance
  • Strong corrosion resistance
  • Lightweight
  • High strength and high impact resistance
  • Good self-lubricating
  • Strong alkali resistance
  • Smooth surface
  • Good toughness
The main purpose
  • Wear parts
  • High temperature parts
  • Corrosion resistant parts
  • Machinery Seal
  • Sliding parts
  • High temperature parts
  • Molten metal parts
  • Metal plasticity
  • Processed parts
  • Industrial knives
  • Pump parts
  • Wear parts
Density Kg/m³ 3.9*10 3.16*10 3.3*10 6.0*10

Mechanical behavior

 Vickers hardness Gpa 16.0 23.0 14.0 13.2 12.7
Flexural strength Mpa 360 450 1020 1000 1470
Compressive strength Mpa 2350 …… …… …… ……
Fracture toughness Mpa 4 2-3 7 4-5 4-5

Thermal performance

 Linear expansion coefficient 40-400℃ ×10-5/℃ 7.2 3.7 2.8 10.5 10.8
40-800℃ 8.0 4.4 3.3 11.0 11.3
Thermal conductivity W/(m·k) 32 200 27 3 3
Specific heat J/(kg·k) 0.78*10 0.67*10 0.65*10 0.46*10 0.46*10
Thermal shock resistance (in water) ℃ 250 …… ＞800 300 350
Electrical performance Dielectric strength V/m 15*105 …… 13*105 11*105 ……
Volume resistance(20℃) Ω·cm ＞1014 108 1014 1013 ……
Dielectric constant …… 9.6 …… 9.9 33 ……
Loss factor ×10-4 10 …… …… 520 ……

Product advantages
  • long lasting
  • Good electrical insulation
  • Strong thermal shock resistance
  • Good thermal conductivity
  • Strong moisture resistance
  • High temperature resistance
Applications
  • Shipbuilding, bridges, large-scale structural facilities
  • Lighting industry
  • Electronics and electric heating industry

Argon arc welding alumina ceramics 133-01 processing parts

Product packaging

Packed in carton

In addition to common sizes and specifications, our company accepts drawings and samples for customization. If necessary, please contact our company directly.

Argon arc welding alumina ceramics 133-01 processing parts

FAQ

1. Are you a businessman or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What is the product packaging?
Carton or according to customer requirements

5. What other products does the company produce?
Welded ceramic nozzles, welded ceramic liners, electronic ceramics, textile ceramics, etc.
