Customised Shaped 10Gpa Wear Resistant Ceramics
Customised Shaped 10Gpa Wear Resistant Ceramics
Customised Shaped 10Gpa Wear Resistant Ceramics
Customised Shaped 10Gpa Wear Resistant Ceramics
Customised Shaped 10Gpa Wear Resistant Ceramics
Customised Shaped 10Gpa Wear Resistant Ceramics
Specifications
Brand Name :
Weite ceramics
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
50piece
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100000 per month
Packaging Details :
carton
name :
Wear-resistant Ceramics
Material :
Alumina ceramic
Hardness :
10-12Gpa
Features :
Long service life
Color :
white
Application :
Lighting industry
Description

Custom-made wear-resistant insulating ceramics with special shapes of alumina

Product Overview


Alumina ceramics have many excellent properties, so they are widely used in the world. Alumina ceramics have a Vickers hardness of 15GPa, a density of about 3.75g/cm3, a compressive strength of about 2100MPa, a flexural strength of 300Mpa, a volume resistance of 1014Ω·m, an expansion coefficient similar to that of metals, and good chemical stability.

High-frequency insulating ceramics, also known as device ceramics, are used in electronic equipment to install, fix, and protect components, as insulating supports for current-carrying conductors, and as ceramics for various integrated circuit substrates. Small dielectric constant, low dielectric loss, high mechanical strength, and high dielectric strength, insulation resistance and thermal conductivity. Commonly used high-frequency insulating ceramics include high-alumina porcelain and talc porcelain.

Product parameter table

Material

Project

Alumina AL203 Silicon carbide sic Silicon nitride sin Silicon nitride sin
Color Ivory black black Milky white, gray black
Content(%) 99.5 …… …… ……
Main features
  • Excellent high frequency electrical insulation
  • Good wear resistance
  • preservative
  • Strong
  • High hardness
  • Good high temperature strength
  • High thermal conductivity
  • Strong alkali resistance
  • Wear-resistant
  • Lightweight
  • Good high temperature strength
  • Strong impact resistance
  • Strong corrosion resistance
  • Lightweight
  • High strength and high impact resistance
  • Good self-lubricating
  • Strong alkali resistance
  • Smooth surface
  • Good toughness
The main purpose
  • Wear parts
  • High temperature parts
  • Corrosion resistant parts
  • Machinery Seal
  • Sliding parts
  • High temperature parts
  • Molten metal parts
  • Metal plasticity
  • Processed parts
  • Industrial knives
  • Pump parts
  • Wear parts
Density Kg/m³ 3.9*10 3.16*10 3.3*10 6.0*10

Mechanical behavior

 Vickers hardness Gpa 16.0 23.0 14.0 13.2 12.7
Flexural strength Mpa 360 450 1020 1000 1470
Compressive strength Mpa 2350 …… …… …… ……
Fracture toughness Mpa 4 2-3 7 4-5 4-5

Thermal performance

 Linear expansion coefficient 40-400℃ ×10-5/℃ 7.2 3.7 2.8 10.5 10.8
40-800℃ 8.0 4.4 3.3 11.0 11.3
Thermal conductivity W/(m·k) 32 200 27 3 3
Specific heat J/(kg·k) 0.78*10 0.67*10 0.65*10 0.46*10 0.46*10
Thermal shock resistance (in water) ℃ 250 …… ＞800 300 350
Electrical performance Dielectric strength V/m 15*105 …… 13*105 11*105 ……
Volume resistance(20℃) Ω·cm ＞1014 108 1014 1013 ……
Dielectric constant …… 9.6 …… 9.9 33 ……
Loss factor ×10-4 10 …… …… 520 ……

Product advantages

• Size and thermal stability
• High performance features
• Hydrolysis resistance
• Self-lubricating performance
• Extended service life

Alumina ceramic material has good insulation, otherwise, stainless, strong and not easy to damage, and has the same excellent properties as other organic materials and metal materials. The production process of alumina ceramics includes five steps: calcination, batching, fine grinding, shaping and sintering.

Applications
  • Shipbuilding, bridges, large-scale structural facilities
  • Lighting industry
  • Electronics and electric heating industry

With the development of science and technology and the improvement of manufacturing technology, new varieties continue to appear, and they will be used more and more in the fields of modern industry and modern science.

Customised Shaped 10Gpa Wear Resistant Ceramics

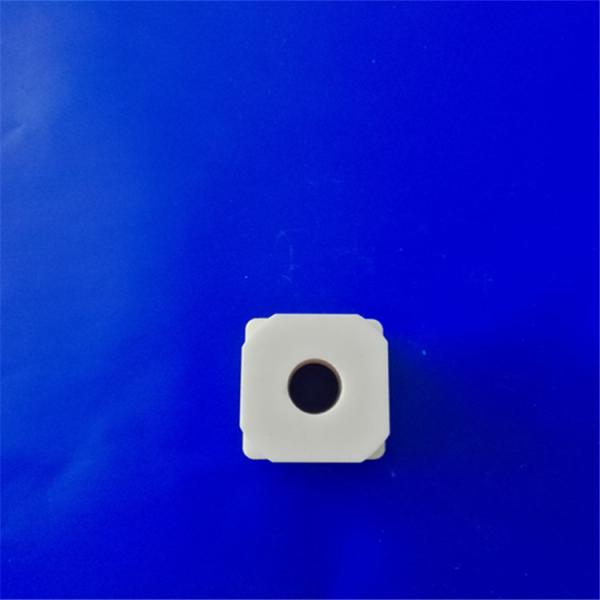

Product Picture

Customised Shaped 10Gpa Wear Resistant Ceramics

Product packaging

Packed in carton

Customised Shaped 10Gpa Wear Resistant Ceramics

FAQ

1. Are you a businessman or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What is the product packaging?
Carton or according to customer requirements
