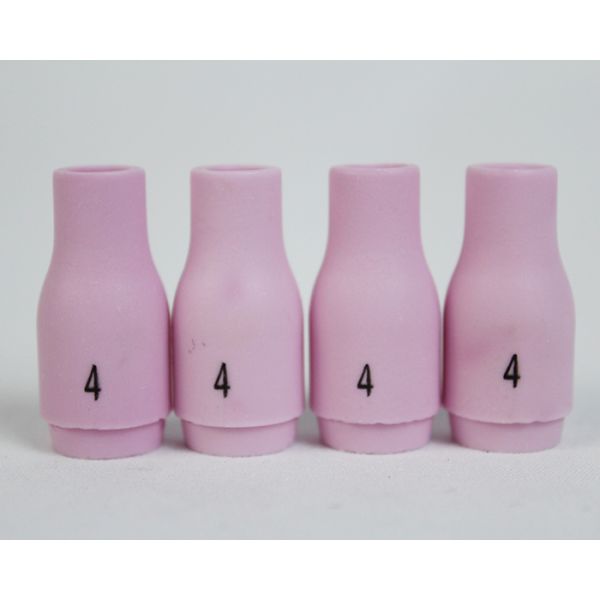

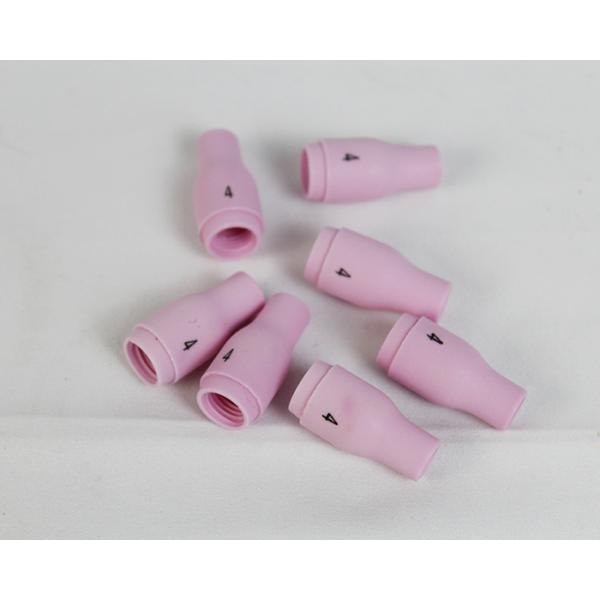

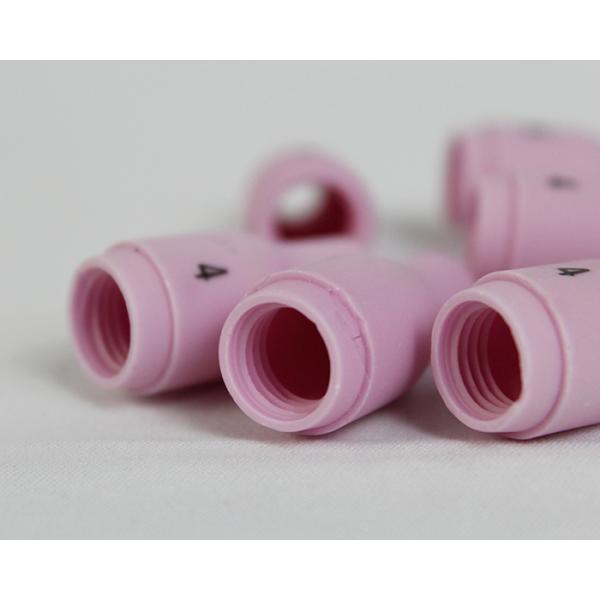

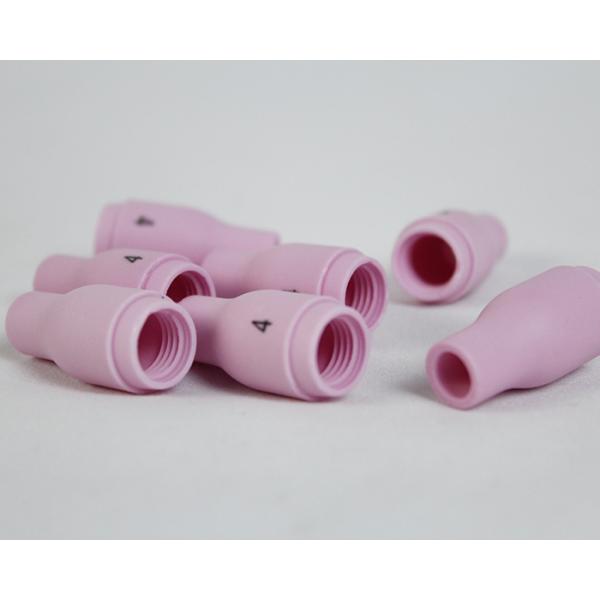

Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Ceramic nozzle of high pressure 13N08 arc welding gun
Specifications
Brand Name :
Weite ceramics
Model Number :
13N08
Certification :
ISO9001
Place of Origin :
China
MOQ :
1500piece
Price :
Negotiate
Supply Ability :
100000 per month
Packaging Details :
carton
Molding method :
Dry pressing/Hot pressing
Material :
Alumina ceramic
colour :
Pink
Features :
Wear-resistant
Brand :
Weite ceramics
Certificate :
ISO9001
Description

High Pressure 13N Welding Torch Nozzle

Product Overview


Alumina nozzle 13N

Welding ceramic nozzle product types: a variety of options, total welding torque length: 505 (mm), wall thickness: 1.5 (mm), welding/cutting thickness: 50 (mm), the number of replaceable welding tips: multiple, working pressure: 10 (KN), applicable range: 1600 degrees high temperature.

Product parameter table

Size Part Number Length (mm) Orifice (in) Orifice (mm) Torchdesign
NO 4 13N08 30 6.5 1/4 9/20
NO 5 13N09 30 8.0 5/16 9/20
NO 6 13N10 30 9.5 3/8 9/20
NO 7 13N11 30 11.0 7/16 9/20
NO 8 13N12 30 12.5 1/2 9/20
NO 10 13N13 30

16.0

 5/8 9/20

Ceramic nozzle of high pressure 13N08 arc welding gun

Material

Project

 Alumina AL203 Silicon carbide sic Silicon nitride sin Silicon nitride sin
Color Ivory black black Milky white, gray black
Content(%) 99.5 …… …… ……
Main features
  • Excellent high frequency electrical insulation
  • Good wear resistance
  • preservative
  • Strong
  • High hardness
  • Good high temperature strength
  • High thermal conductivity
  • Strong alkali resistance
  • Wear-resistant
  • Lightweight
  • Good high temperature strength
  • Strong impact resistance
  • Strong corrosion resistance
  • Lightweight
  • High strength and high impact resistance
  • Good self-lubricating
  • Strong alkali resistance
  • Smooth surface
  • Good toughness
The main purpose
  • Wear parts
  • High temperature parts
  • Corrosion resistant parts
  • Machinery Seal
  • Sliding parts
  • High temperature parts
  • Molten metal parts
  • Metal plasticity
  • Processed parts
  • Industrial knives
  • Pump parts
  • Wear parts
Density Kg/m³ 3.9*10 3.16*10 3.3*10 6.0*10

Mechanical behavior

 Vickers hardness Gpa 16.0 23.0 14.0 13.2 12.7
Flexural strength Mpa 360 450 1020 1000 1470
Compressive strength Mpa 2350 …… …… …… ……
Fracture toughness Mpa 4 2-3 7 4-5 4-5

Thermal performance

 Linear expansion coefficient 40-400℃ ×10-5/℃ 7.2 3.7 2.8 10.5 10.8
40-800℃ 8.0 4.4 3.3 11.0 11.3
Thermal conductivity W/(m·k) 32 200 27 3 3
Specific heat J/(kg·k) 0.78*10 0.67*10 0.65*10 0.46*10 0.46*10
Thermal shock resistance (in water) ℃ 250 …… ＞800 300 350
Electrical performance Dielectric strength V/m 15*105 …… 13*105 11*105 ……
Volume resistance(20℃) Ω·cm ＞1014 108 1014 1013 ……
Dielectric constant …… 9.6 …… 9.9 33 ……
Loss factor ×10-4 10 …… …… 520 ……

Product advantages

Argon arc welding alumina welding ceramic nozzle series has the characteristics of high temperature resistance, strong reliability and price concessions.

Applications
  • Shipbuilding, bridges, large-scale structural facilities
  • Lighting industry
  • Electronics and electric heating industry

Ceramic nozzle of high pressure 13N08 arc welding gunCeramic nozzle of high pressure 13N08 arc welding gunCeramic nozzle of high pressure 13N08 arc welding gunCeramic nozzle of high pressure 13N08 arc welding gun

Ceramic nozzle of high pressure 13N08 arc welding gun

Product packaging

Packed in carton

Ceramic nozzle of high pressure 13N08 arc welding gun

FAQ

1. Are you a businessman or a manufacturer?
We are a company, we have our own factory

2. How long is your delivery time?
Negotiable

3. Can the product be customized?
Can be customized

4. What is the product packaging?
Carton or according to customer requirements

Product tags

co2 welding nozzle

,

mig welding nozzle

,

welding gas nozzle
