Specifications
Brand Name :
Weite ceramics
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1000 pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100000 per month
Packaging Details :
carton
name :
alumina ceramic plunger
Material :
Alumina ceramic
Features :
High temperature resistance
Color :
white or yellow
Description

Alumina ceramic casing, custom alumina ceramics, factory direct sales alumina ceramics

Corrosion resistant alumina ceramic plunger

Product Overview

Alumina ceramics have a high melting point and high boiling point. It will not be affected when used at high temperature. It is an insulator at room temperature and has a high resistivity. It will not be affected under strong acid, strong base and inorganic organic salt conditions.

Alumina ceramic plunger pipe passed ISO9001 certification

Weite Ceramics supports custom welding ceramic nozzles, high temperature resistant ceramic nozzles, wear-resistant ceramic nozzles, spiral ceramic nozzles, alumina ceramic nozzles, and silicon nitride ceramic nozzles. Weite Ceramics has more than 60 senior technical personnel and 10 kinds of ceramic welding technologies to provide you with more professional services. The ceramic nozzle brand prefers Yixing Weite Ceramics.

Alumina ceramic plunger pipe passed ISO9001 certification

Product parameter table

Material


Project

Alumina AL203 Silicon carbide sic Silicon nitride sin Silicon nitride sin
Color Ivory black black Milky white, gray black
Content(%) 99.5 …… …… ……
Main features
  • Excellent high frequency electrical insulation
  • Good wear resistance
  • preservative
  • Strong
  • High hardness

  • Good high temperature strength
  • High thermal conductivity
  • Strong alkali resistance
  • Wear-resistant
  • Lightweight
  • Good high temperature strength
  • Strong impact resistance
  • Strong corrosion resistance
  • Lightweight
  • High strength and high impact resistance
  • Good self-lubricating
  • Strong alkali resistance
  • Smooth surface
  • Good toughness
The main purpose
  • Wear parts
  • High temperature parts
  • Corrosion resistant parts
  • Machinery Seal
  • Sliding parts
  • High temperature parts
  • Molten metal parts
  • Metal plasticity
  • Processed parts
  • Industrial knives
  • Pump parts
  • Wear parts
Density Kg/m³ 3.9*10 3.16*10 3.3*10 6.0*10

Mechanical behavior

Vickers hardness Gpa 16.0 23.0 14.0 13.2 12.7
Flexural strength Mpa 360 450 1020 1000 1470
Compressive strength Mpa 2350 …… …… …… ……
Fracture toughness Mpa 4 2-3 7 4-5 4-5

Thermal performance

Linear expansion coefficient 40-400℃ ×10-5/℃ 7.2 3.7 2.8 10.5 10.8
40-800℃ 8.0 4.4 3.3 11.0 11.3
Thermal conductivity W/(m·k) 32 200 27 3 3
Specific heat J/(kg·k) 0.78*10 0.67*10 0.65*10 0.46*10 0.46*10
Thermal shock resistance (in water) 250 …… >800 300 350
Electrical performance Dielectric strength V/m 15*105 …… 13*105 11*105 ……
Volume resistance(20℃) Ω·cm >1014 108 1014 1013 ……
Dielectric constant …… 9.6 …… 9.9 33 ……
Loss factor ×10-4 10 …… …… 520 ……

Product advantages

The product quality is excellent and stable, the specifications are standard, and the appearance is smooth and even. The main performance indicators—moisture absorption rate, bulk density, flexural strength, peel strength, and fire resistance are better than the national standard requirements.

Applications
  • Shipbuilding, bridges, large-scale structural facilities
  • Lighting industry
  • Electronics and electric heating industry

Alumina ceramic plunger pipe passed ISO9001 certification

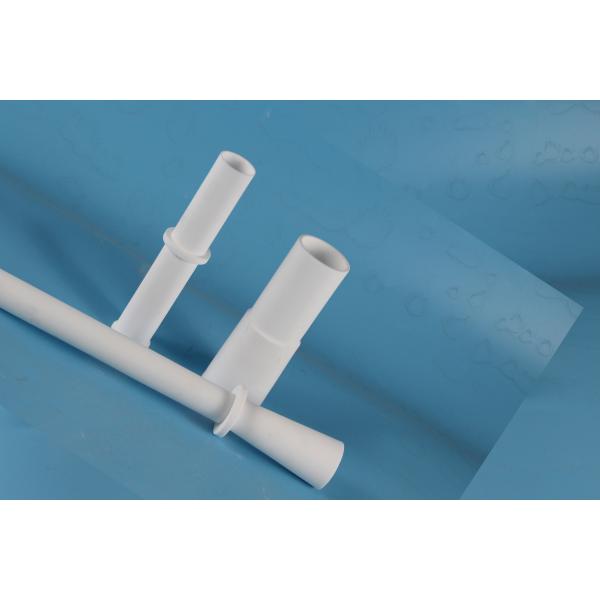

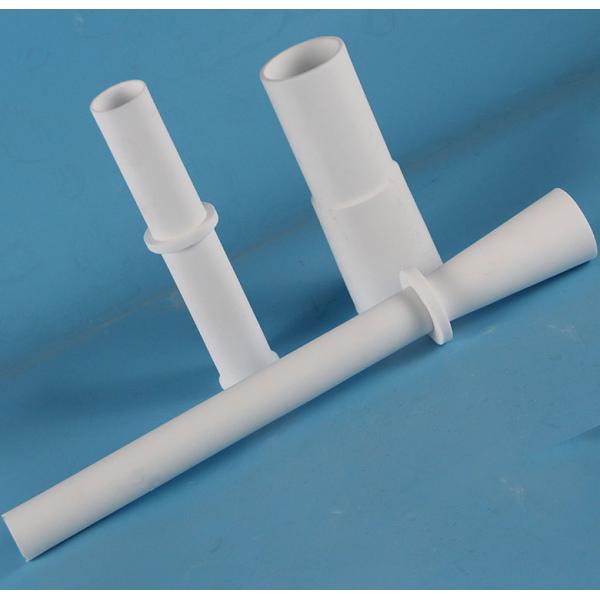

Product Picture

Alumina ceramics is a ceramic material with alumina (Al2O3) as the main body, used for thick film integrated circuits. Alumina ceramics have good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic cleaning is required. Alumina ceramics is a kind of ceramics with a wide range of uses. Because of its superior properties, it has become more and more widely used in modern society to meet the needs of daily use and special properties.

Alumina ceramic plunger pipe passed ISO9001 certification

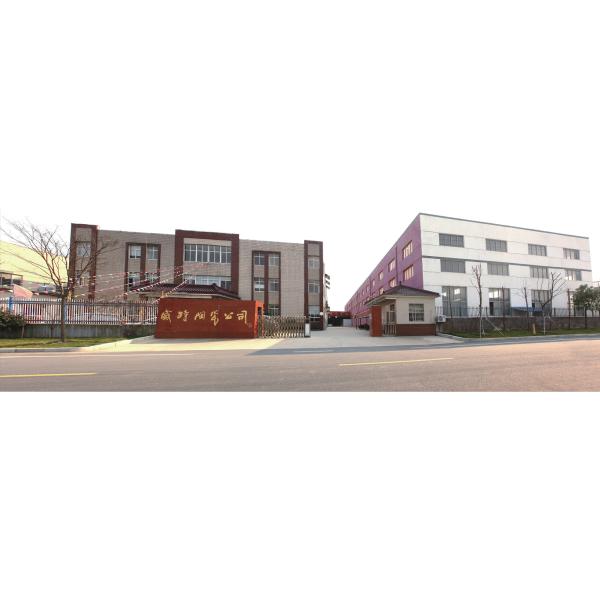

Yixing Weite Ceramics Co., Ltd. has been engaged in the research and development of professional alumina ceramics, zirconia ceramics, silicon nitride ceramics, welding ceramics, polysilicon ceramics, electric heating ceramics, electronic ceramics, high temperature resistant ceramics, wear resistant ceramics and other products for more than 10 years. , Production and sales.

Alumina ceramic plunger pipe passed ISO9001 certification

Product packaging

Packed in carton

Alumina ceramic plunger pipe passed ISO9001 certification

FAQ

1. Are you a factory or a trading company?

Answer: We are a factory, welcome to visit our factory.

2. What is the price of your product?

Answer: Please do your best to inquire about each detailed requirement including quantity, size, color, packaging, etc., then we will give you an accurate quotation at the first time.

3. How to guarantee the quality of the products we ordered from you?

Answer: The company has strong technical force, advanced production equipment and perfect testing methods. The products have beautiful appearance and quality assurance. The company has passed ISO9001: 2000 international quality system certification, and the product sales network covers all parts of the country; more than 80% The products are exported to Asia, Europe, and the United States, and enjoy a good reputation in the domestic and foreign markets. The company has strong technical support, excellent management personnel, and perfect customer service. Regardless of product quality or distribution services, they have won the praise of customers.

4. Is it possible to make the product our own design?

Answer: Yes! We accept customized orders. And we also have an experienced R&D team, and will do everything in accordance with your expectations!
