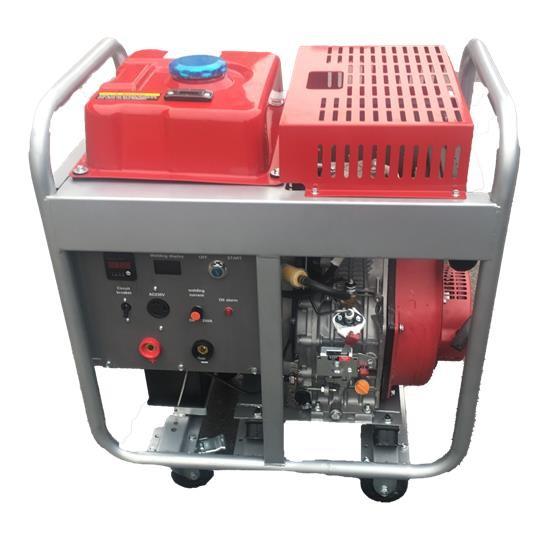

250A Diesel Generator Welding Machine Single Cylinder Fouer Stroke Forced Air Cooled
250A Diesel Generator Welding Machine Single Cylinder Fouer Stroke Forced Air Cooled
Specifications
Brand Name :
RAMS
Model Number :
AXC-250A
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 units mixed model
Payment Terms :
T/T, L/C
Delivery Time :
25 work days
Packaging Details :
Carton/Pallet/Wooden case
Auxiliary power :
AC230V/4.5KW
Engine :
195F
Engine type :
Single cylinder, 4 stroke, forced air cooled, ohv
Continuous running :
8H
Ignition mode :
Electronic
Displacement :
499 CC
Startup :
Electric
Description

250A Diesel Generator Welding Machine Single cylinder Fouer stroke forced air cooled

MOQ:12units mixed model

Characteristic:

1. It can automatically compensate voltage fluctuation, has strong thrust compensation ability, stable welding

current, fast response speed, less overflow and strong penetration force.

2. The rare earth permanent magnet motor is used to adjust the current, and the welding current is continuous,

accurate and adjustable.

3. The output power is 4.5kw, which is applicable to all kinds of acid-base welding rods and saves 30% of fuel

compared with ordinary excitation welding generators.

4. It is suitable for municipal, power, chemical, water supply, gas pipeline and other industries.

Model No. AXC-250A
generator Welding mode Manual metal arc welding
No load volt 90V
Welding volt 20-28V
Welding current 40-250A
Load continuous rate 80%
Auxiliary power AC230V/4.5KW
engine engine 195F
Engine type Single cylinder, 4 stroke, forced air cooled, ohv
Output power 7KW
Bore x stroke 92x66mm
displacement 499cc
Fuel consumption 312g/KW.h
Ignition mode electronic
startup electric
fuel Diesel :0#(summer)-10#(winter)-35#(severe cold)
Oil capacity 1.1L

others

 Fuel tank capacity 25L
battery 12V-14AH free maintenance battery
Oil alarm system yes
Fuel meter yes
Control panel Volt-meter, ampere-meter
wheels yes
noise 70Dba/7m
Continuous running 8h
size 720x530x720mm
Net weight 148kg

MOQ:12units mixed model

250A Diesel Generator Welding Machine Single Cylinder Fouer Stroke Forced Air Cooled
