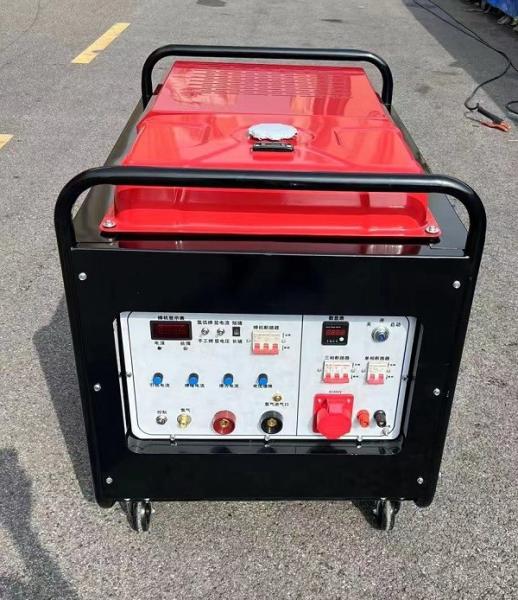

4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
Specifications
Brand Name :
RAMS
Model Number :
AXC1-300AF
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 units mixed model
Payment Terms :
T/T, L/C
Delivery Time :
25 work days
Packaging Details :
Carton/Pallet/Wooden case
Excitation mode :
AVR
The prime power :
8 KW
The standby power :
8.5 KW
Rated voltage :
400 V
Rated ampere :
Each phase 17.8A
Max ampere :
Each phase 18.8A
Phase :
3 phase 380V 50Hz
Description

Genset 300 Amp Diesel Welder 4 stroke Air cooled With 25L Diesel Tank

MOQ:2units mixed model

• with voltage fluctuation automatic compensation, thrust automatic compensation ability, stable welding

current, excellent dynamic characteristics, fast response speed, small splash, strong penetration.

• Welding current is continuously and accurately adjustable.
• Output AC 8 kW power supply, suitable for all kinds of acid and alkaline electrode: more than 30% energy

saving than the traditional welding machine.
• Suitable for: electric power, municipal, chemical, tap water, gas pipeline construction, etc.

Model No. AXC1-300AF
genset Excitation mode AVR
The prime power 8KW
The standby power 8.5KW
Rated voltage 400V
Rated ampere Each phase 17.8A
Max ampere Each phase 18.8A
frequency 50HZ
phase 3 phase 380V 50Hz
Power factor (COSφ) 0.8
Insulation grade F
Engine engine 2V92
Bore × stroke 92x75mm
displacement 997cc
Fuel consumption ≤320g/kw.h
Ignition system Compression ignition
Engine type Inline,twin cylinder ,4 stroke, air cooled, direct injection
Fuel diesel:0#(summer)-10#(winter)-35#(severely cold)
Oil capacity 2.6L
startup Electric
others Fuel capacity 25L
battery 12V-45AH free maintenance battery
noise 87dBA/7m
size 1100x750x950mm
Net weight 232kg
Rated input power 12.2KVA
Rated input ampere 18.6A
Welding A/V 315A/32.6V
Welding A 315A60%DE
200A100%DE
No load voltage 67±5V
Ampere set range 20-350A
efficiency ≥85%
welder Power factor >0.95
Insulation grade F
Cooling system Air cooled
Protection grade IP21S

4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank

4 Stroke Air Cooled Diesel Welding Generators 300A With 25L Diesel Tank
