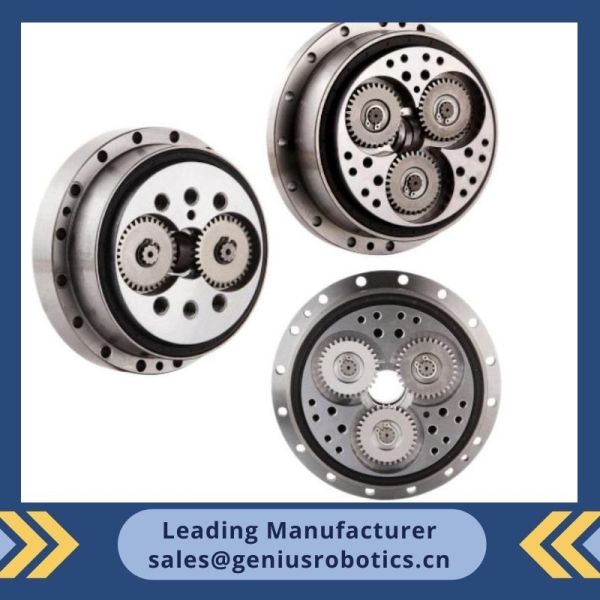

RV Robot Cycloidal Gear Reducer Drive Planetary Gearbox 70r/Min
RV Robot Cycloidal Gear Reducer Drive Planetary Gearbox 70r/Min
Specifications
Brand Name :
Genius Robotics Zhenkang
Model Number :
RV-40E
Certification :
CE , ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5000 / month
Delivery Time :
5-10 Working days
Packaging Details :
Carton packing
Customized :
Available
Name :
RV gear reducer
Allowable output speed :
70 r/min
Reduction gear ratio :
81 / 105 / 121 / 153
Description

Rv Robot Reducer Reduction Gearbox Cycloidal Gear Box Drive Transmission Planetary Gearbox

The RV reducer is a kind of reduction gearbox that centers with the flat specially designed for accurate motion control. And cycloidal pinwheel is the key component of RV reducer. These robotic gearboxes are featured of compact body, light weight and high rigidity which is strong enough to be against overloading situations. It features of free backlash, micro rotating vibration and low inertia to guarantee the rapid acceleration, ultra precise positioning and smooth movement. The precision gear RV series is an ideal speed reducer specially for precision mechanical control in the fields of machine tools, factory robots, assembly equipment, conveying machines and other related fields that need precise positioning, high rigidity and shock-load capacity.

● RV reducers are with long service life and high reliability.
● Robot reducers use integrated angular support bearings to guarantee the high performance during operation.
● The use of rolling contact elements throughout the RV reducer makes fully continuous contact
● The excellent 2-Stage reduction mechanism to ensure high ratio and high torque.
● All the RV reducers are featured with backlash of be less than 1 arc-min.

RV Gear Reducer RV - 40E technical Parameters
Operating parameter
Output Rotational speed
r/min

5

 15 25 35
Output torque Input capacity Output torque Input capacity Output torque Input capacity Output torque Input capacity
Model Nm kW Nm kW Nm kW Nm kW
40E 560 0.40 400 0.88 355 1.20 330 1.52

Note: the rated torque is the output torque when the output speed is at 15 r / min.
Performance Parameter

Model Speed ratio Allowable output speed Maximum backlash Allowable acceleration/decleration torque Momentary max allowable torque Allowable moment Momentary max allowable movement Weight Efficiency Noise
40E Shaft(R) Housin r/min arc.min Nm Nm Nm Nm kg % dB
81 80 70 1 1000 2000 1600 3200 9.3 >80 <75
105 104
121 120
153 152



RV Gear Reducer RV - 40E installation parameter

inner hexagon bolt
Nominal dimension(mm)		 fastening torque(Nm) fastening force bolt requirement
M8 × 1.25 37.2 ± 1.86 23960 GB/T 70.1 - 2000
intensity:12.9
thread requirement:GB/T 1167-1996
M14 × 2.0 204.8 ± 10.2 75860



RV Gear Reducer RV - 40E installation drawings

RV Robot Cycloidal Gear Reducer Drive Planetary Gearbox 70r/Min

RV Robot Cycloidal Gear Reducer Drive Planetary Gearbox 70r/Min
