70r/Min Reduction RV Gear Reducer For Aerospace Equipment
70r/Min Reduction RV Gear Reducer For Aerospace Equipment
Specifications
Brand Name :
Genius Robotics Zhenkang
Model Number :
RV-40E
Certification :
CE , ISO9001 , ISO14001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5000 / month
Delivery Time :
5-10 Working days
Packaging Details :
Carton packing
Customized :
Available
Name :
RV gear reducer
Allowable output speed :
70 r/min
Reduction gear ratio :
81 / 105 / 121 / 153
Description

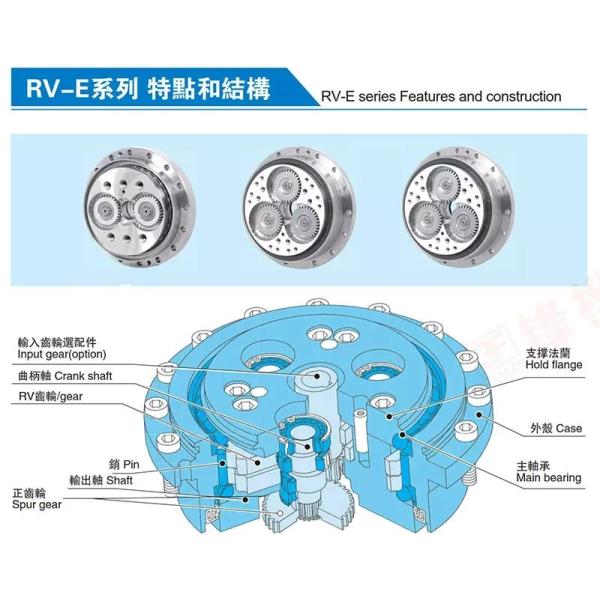

Precision Reduction Gear RV 40E Series Reducer

40E series High precision cycloidal planetary servo motor gearbox reducer is based on the drive of oscillatory transmission, a series gear branch input multi-synchronous input shaft roller power transmission to ensure that it covers a high-precision drive, high stiffness, high load characteristics.
The CORT reducer has the advantages of long-term use without adding lubricant, long life, good rigidity, large reduction ratio, low vibration, high precision, and convenient maintenance. Its transmission efficiency is 0.8, which is very high compared to a gear set with the same reduction ratio.
Because of its superior performance, roll tooth drive can be widely used in petrochemical, metallurgical mine, light pharmaceutical, food oil, textile printing and dyeing, overweight, such as transportation and construction machinery industry machinery used for deceleration. If necessary, it can also be used with the growth rate. It is worth mentioning that the roll transmission gear has extremely carrying capacity, can achieve high-precision, high-stiffness compound rolling live transmission gear was developed and patents for invention was accessed. Such precision reducer is particularly applicable to robots, CNC equipment, aerospace equipment, defense equipment and weapons requirements of high-precision control of the transmission system.

RV Gear Reducer RV - 40E technical Parameters
Operating parameter

Output Rotational speed
r/min		 5 15 25 35
Output torque Input capacity Output torque Input capacity Output torque Input capacity Output torque Input capacity
Model Nm kW Nm kW Nm kW Nm kW
40E 560 0.40 400 0.88 355 1.20 330 1.52

Note: the rated torque is the output torque when the output speed is at 15 r / min.
Performance Parameter

Model Speed ratio Allowable output speed Maximum backlash Allowable acceleration/decleration torque Momentary max allowable torque Allowable moment Momentary max allowable movement Weight Efficiency Noise
40E Shaft(R) Housin r/min arc.min Nm Nm Nm Nm kg % dB
81 80 70 1 1000 2000 1600 3200 9.3 >80 <75
105 104
121 120
153 152



RV Gear Reducer RV - 40E installation parameter

inner hexagon bolt
Nominal dimension(mm)		 fastening torque(Nm) fastening force bolt requirement
M8 × 1.25 37.2 ± 1.86 23960 GB/T 70.1 - 2000
intensity:12.9
thread requirement:GB/T 1167-1996
M14 × 2.0 204.8 ± 10.2 75860



RV Gear Reducer RV - 40E installation drawings
