20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding
20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding
20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding
20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding
Specifications
Brand Name :
Wuxi Success
Model Number :
HGK - 20
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000~8000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
20 Days after confirm the down payment
Packaging Details :
Wooden case
Name :
Pipe welding rotator
Package Range :
One drive & One Idler
Load capacity :
20T
Type :
Lead Screw adjustment
Wheel material :
Rubber&Steel
Application :
Oil Tank/Wind Tower
Control Way :
Hand Box
Adjust Way :
Lead Screw
Voltage :
380V 3P
Motor power :
2*1.1
Description

New Condition 20T Lead Screw Pipe Welding Rotator With Traveling Wheels

More info.pdf

20T pipe welding rotator:

  1. One set consist of one drive roller & one idler roller.  2. Load capacity drive unit 10T, idler unit 10T. One set load 20T.  3. Vessels diameter in 500~4500 mm.  4. Roller material in PU to ensure long time using life.  5. Voltage 380V 50Hz 3Phase.  6. Delivery time in 20 days for one set.  7. Welding rotator from Wuxi Success Machinery Equipment Co., Ltd

Specification

Model HGK-5 HGK-10 HGK-20 HGK-30 HGK-40
Max Capacity 5 T 10 T 20 T 30 T 40 T
Vessels Diameter 250~2800 mm 300~3200 mm 500~4500 mm 500~4800 mm
Roller Diameter (mm) 250 300 350 350 400
Roller Width (mm) 140 170 180 180 200
Roller Speed (mm/min) 1 - 1000 mm/min
Motor Power (kw) 2 * 0.37 2 * 0.55 2 * 1.1 2 * 1.5 2 * 1.5
Option : □ Bolt Adjustment □ Lead Screw Adjustment

NOTED: Large vessels diameter is available for special customized.

Spare Parts Brand:

1. Our welding roller Inverter is from Danfoss / Yaskawa.

2. Our welding rotator Motor is from Invertek.
3. Our Tank rolls Reducer is from China brand.
4. Our welding Electric system is from Schneider.

Original Manufacturer Service:

1. Ensure you get the best quality of the welding rotator.

2. Ensure you get the best price of the welding rotator.

3. After sales service is more professional and timely.

4. Installation service is available if needed.

Delivery Way:

1. Normally we package into containers directly then fixed to anti damage.

2. If only order one set then we will package into wooden cases for delivery.

3. One set delivery time of welding rotator is 20 days.

4. Warranty time is one year.

Details Pictures

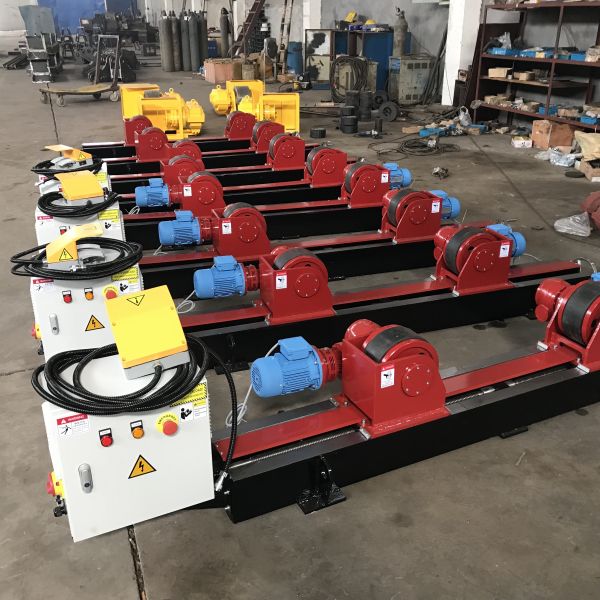

20T pipe welding rotator

20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding

20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding

20T Pipe Weding Rotator Lead Screw Welding Turning Rolls For Oil Tank/Wind Tower Welding
