Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote
Specifications
Brand Name :
Weldsuccess
Model Number :
HGZ - 20
Certification :
ISO / CE / CO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
5 sets per month
Delivery Time :
10 Days
Packaging Details :
Wooden Case
Max Capacity :
20 T
Tank Diameter :
600 - 4200 mm
Speed Control :
VFD / Wireless Hand Control Box
Function :
Support and Turning
Roller Material :
PU / Rubber
Self Weight :
3000 kg
Description

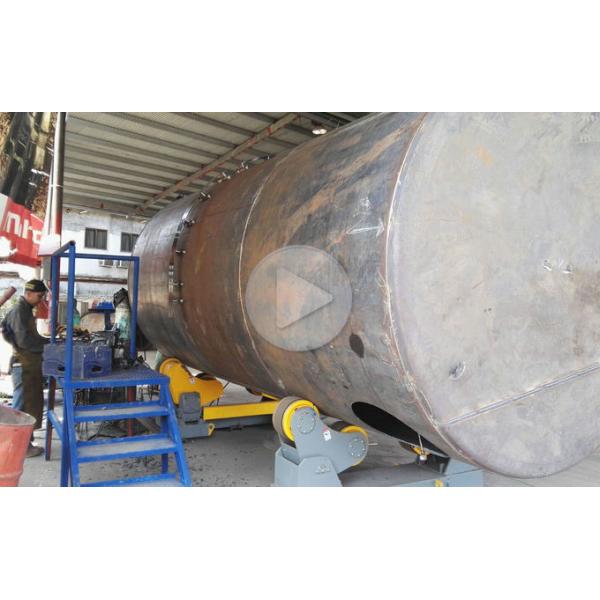

20 Ton Steel Pipe Rollers With Remote Hand Control And Foot Pedal

WELDSUCCESS PRODUCTS.pdf

Self Aligning Pipe Welding Rollers Rotator Brife Introduction

1. The welding rollers will adjust the working range automatically according to the tank diameter .

2. Customer can use the wireless hand control within 10 m distance.

3. Fully equipments with one year quality warranty.

4. Door to door price is also available.

Detail Specification

Model

HGZ-5

HGZ-10

HGZ-20

HGZ-30

HGZ-40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

250

300

350

350

400

Roller Width (mm)

100

120

Working Range (mm)

250-2300

320-2800

500-3500

530-3700

600-4200

Roller Speed (m/h)

6-60

Motor Power (kw)

0.75

1.1

1.5

2.2

3

Option :

□ Moving wheels □ Wireless Control □ Remote Control

Pipe Welding Rollers Applications

1. Support the tank for turning to make the seam welding conveniently.

2. We also have the movable model for several single pipe butt welding.

3. Fit up welding rollers or lift rollers are all available.

4. Working with automatic seam welding manipulator is more convenient.

Famous brands On Self Aligning Pipe Welding Rollers

1. Taida / Yaskawa inverter

2. Invertek / ABB motor

3. Cable reducer

4. Schneider / Siemens electric control system

5. Digital speed display on the hand control box

Installation and after sale service

1. The rollers will be fully installed before package in wooden case, you just need to connect the wire rod.

2. We also supply the installation service at your work shop if needed.

3. Before using, please give the reducer oils according to our work manual.

4. If have any questions during the wire connection , just send us one email.

Hand Control And Foot Pedal, 20 Ton Steel Pipe Rollers With Remote

DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
