Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Specifications
Brand Name :
Weldsuccess
Model Number :
HGK-200
Certification :
CE / ISO / CO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden case
Max Capacity :
200 T
Name :
Pipe Welding Rotator
Wheel :
PU
Type :
Tank Turning Rollers
Application :
Wind Tower Tank Welding
Color :
Customized
Speed Display :
Digital Readout
Motor Power :
2 * 4 KW
Delivery time :
20 Days
Control Way :
Hand Box & Foot Pedal
Description

200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers

Strong Power High Speed , 200T Tank Turning Rolls Pipe Rollers For Welding

Brife Pipe Welding Rotator Info

1. Load Capacity : Driver 200,000 lbs (100T) , Idler 200,000 lbs (100T).

2. Three (3) Tires 20" dia. x 8" wide rollers on one side to ensure turning steady.

3. For work rotating diameters from 3 ft to 19 ft., 380 V , 3-ph or as per requirements

4. Variable Speed Rotation by Inverter Drive with 20 ft Remote Pendant Control

5. Pipe welding rotator control system : Hand control box with digital readout

6. Original Place : Wuxi China , 100% New

7. Delivery time : 20 days

Conventional Pipe Welding Rotator Specification

Model

HGK-60

HGK-100

HGK-200

HGK-300

HGK-500

Max Capacity

60 T

100 T

200 T

300 T

500 T

Roller Diameter (mm)

450

500

700

800

900

Roller Width (mm)

220

280

300

Working Range (mm)

800-5000

1000-6000

1000-8000

Roller Speed (mm/min)

1-1000

Motor Power (kw)

2*2.2

2*3

2*4

2*5.5

2*7.5

Option :

□ Bolt Adjustment □ Lead Screw Adjustment

Pipe Welding Rotator Description

1. Both drive rolls are powered by a heavy duty direct gear drive and brake motor.

2. All of the gears and bearings are fully sealed and lubricated for long life and safety.

3. Polyurethane roller, Rubber Roller or steel roller are all available.

4. Remote control or Wireless control box with digital display of turning speed.

5. Other types of turning rolls like tank fit-up rolls, and self aligning welding rolls.

Attention Please

1. Pipe welding rotators, pipe rolls and vessel rotators are a necessity for light and heavy duty pipe or vessel welding applications.

2. Whether you are positioning small diameter pipe or turning extremely large industrial vessels, we can design and build turning rolls that will help you work safely and efficiently.

Pipe Welding Rotator Details Parts Brand

1. Inverter is from Taida / Danfoss

2. Motor is from Invertek / ABB

3. Reducer is from Cable / Chengda

4. Electric system is from Schneider / Siemens

5. Wireless hand control box / foot pedal etc. control system

Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers

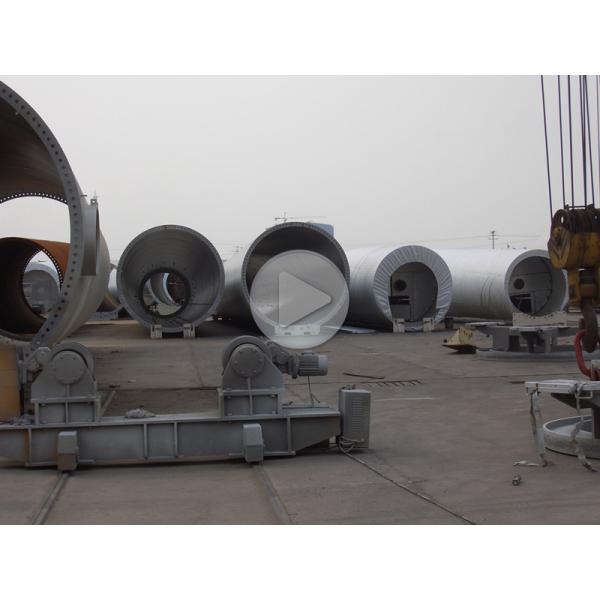

Video:

Large 200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers

Please send us your inquiry now !
