20T Welding Positioner Turntable Rotating Automatic With PU Whell

Brief introduction:

Self alignment structure automatic suitable for different diameter job from 500~3500mm.

With manual bogie easy traveling for various length job.

Feature of automatic tilting tank turning roll:

1. Oversized bearings prevent certain range overloading;

2. Specially formulated high-load polyurethane tire design for high wear resistance.

3. Cast steel gearbox with double worm gear arrangement for smooth operation and minimum backlash.

4. Robust design with durable rollers.

5. Gritblasted steelwork with polyurethane finished coating to endure the abrasive environment of offshore and marine industries.

6. Solid state inverter for precise speed control.

7. Motorized and idler rail bogie versions available.

Function of self aligned tank turning roll:

1. Forward/stop/reverse
2. Rotation speed
3. Driving vehicle forward/stop/reverse (option driving vehicle DV-MO)
4. Emergency-stop

Application:
Ideal for:
- Wind tower fabrication
- Offshore and shipyards
- Pressure vessels
- Thin-wall vessels / Pipes

Automatic tilting tank turning roll detail description:

1. Automatic tilting tank turning roll adjust the wheel centerline setting automatically when the vessel is lowered into place. There are no couplings to change and no pins to remove or replace.

2. Automatic tilting tank turning rolls provide constant centerline capabilities which make set-up and alignment quick and easy.

3. The self-aligned tank turning rollers, which maintain a constant centerline, can rotate work pieces with diameters from 500mm~3500mm without adjustment or change of drive shafts.

4. Automatic tilting tank turning rolls are available in 5 ton to 300 ton capacity.

5. Rolls are powered with AC variable frequency drives and the motors provide motors providing a large range of rotation speeds.

6. Hand-held operator pendants are standard, and optional foot switch controls are available.

7. The automatically infinitely adjustable centerline settings provide easy alignment for tapered vessels, while the added surface area of 4 wheels per unit provides additional support for thin walled vessels.

More models technical parameters of the automatic tilting tank turning roll

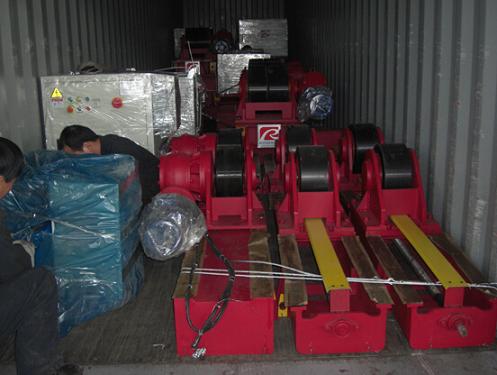

Delivery picture:

Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
