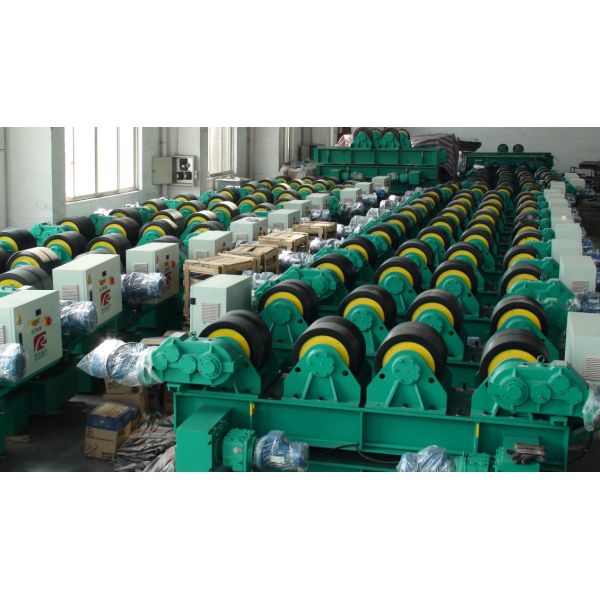

20T Pipe Welding Rotator / Tank Turning Roll For Tank Pipe Boiler

Brief introduction:

Tank turning roll is used for circular job LS / CS welding.Normally combined used with welding column boom or gantry type welding machines as automated welding station.

Detail description of tank turning roll:

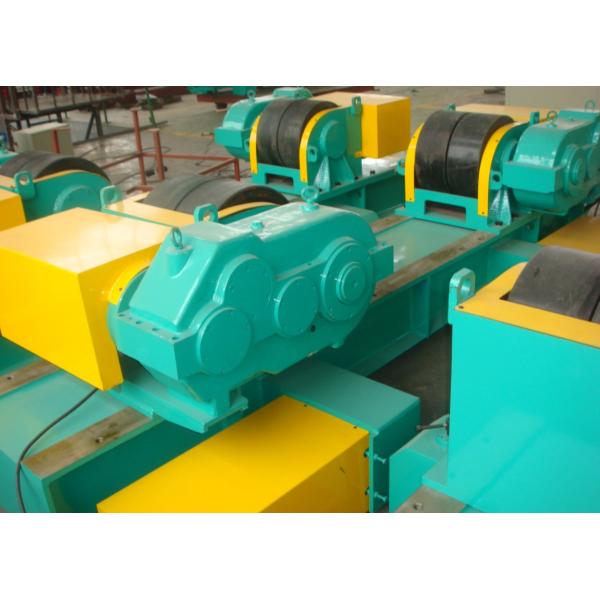

• One set of tank turning roll consist of one motorized drive unit & one idler supporting unit.

• The power unit is driven by a heavy duty AC motor, which is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.

• The heavy duty tyres are designed to 90 durable hardness with high stress rubber cushion mounts to absorb shock loads and prevent gear box damage.

• The DC electronic function or Inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.

• Tank turning rolls capacity is various from 5ton to 1200ton. Higher capacity is custom built upon request.

Tank turning roll feature:

• Depends on different construction, the tank turning roll series include the self-aligned, the adjustable, the vehicle, the tilting and the anti-drift types.

• Adjustable tank turning roll can adjust the center distance by reserved screw holes to adapt to diameter of work piece.

• Power unit of tank turning roll is double-motor driven, the roller driver adopts cycloidal planetary gear reducer or worm reduction gear mode.

• According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and rubber combination wheel.

• It can joint control with other equipments such as welding column boom, gantry welding machine and so on.


Functions:

• Forward/stop/reverse
• Rotation speed
• Driving vehicle forward/stop/reverse
• Emergency-stop

Main Technical Parameters

Application:

• Pressure vessels.
• Pipe manufacturing industries.
• Wind power fabrication.
• Chemical & fuel storage tank fabrication.
• Any heavy cylindrical job.

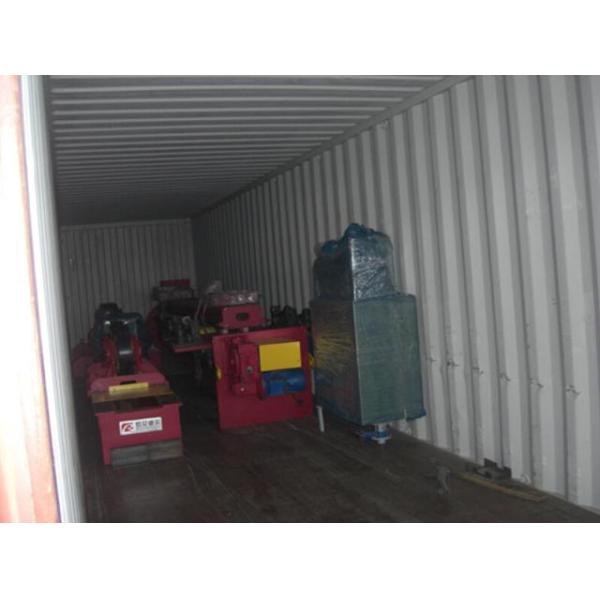

Delivery picture:

Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
