Specifications
Brand Name :
Ronniewell
Model Number :
HGK150
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set (including 1 power unit & 1idler unit)
Price :
pls confirm with us
Payment Terms :
30% TT in advance, 70% TT before the shipment
Supply Ability :
40set/month
Delivery Time :
30working days
Packaging Details :
Mainframe naked, spare parts packed in case
Equipment :
150T Tank Turning Roll
Composed :
1power & 1idler
Structure :
Fixed without rail cars
Feature :
Anti drift
Load capacity :
150000kg
Pipe dia.range :
1000~6000mm
Roller material :
Steel roller
Speed contorl :
Variable frequency driving
Description

Tailor Made Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Pressure Vessel Rotator

Brief introduction:

Tank turning roll with 150t load capacity, tailor made as per pressure vessel plant request.

Narrow wheel width with larger diameter, suitable for turning on multi branch pipes outside of pressure vessel

Detail description of tank turning roll:

  1. It is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.
  2. Standard with 1 power rotator & 1 idler rotator, total load capacity 40ton.
  3. The power unit is driven by a heavy duty AC motor.
  4. The heavy duty wheels are designed to 90 durable hardness with high stress PU cushion mounts to absorb shock loads and prevent gear box damage.
  5. The DC electronic function or inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.
  6. Idler unit with anti creep fixture. The structure is simple but very effective.
  7. Various models ranging from 5 tons to 500 ton capacity.


Functions:

  1. Forward/stop/reverse
  2. Rotation speed
  3. Driving vehicle forward/stop/reverse
  4. Emergency-stop
  5. Anti drift function.

Technical parameters:

Model

HGK-150

Max.Load capacity(ton)

150

Vessel dia. Range (mm)

1000~6000

Dia.& width of roller (mm)

500x180

Adjustable mode

Bolt adjustable

Motor power (kW)

2x4kw

Roller speed (m/min)

0.1~1 Variable Frequency Drive


Applied industry:

  1. Wind power fabrication
  2. Pipe manufacturing industries
  3. Pressure vessels
  4. Chemical & fuel storage tank fabrication
  5. Any heavy cylindrical job

Feature:

  1. The tank turning roll have a strong and durable construction with creates a very high stability.
  2. The wheel is special made steel roller with narrow width & larger diameter.
  3. These tank turning roll have top-class electronic components, stepless adjustable speed of the driven part in CE marked.
  4. The favourable price performance ratio yields will ensure a quick payback of your investment.

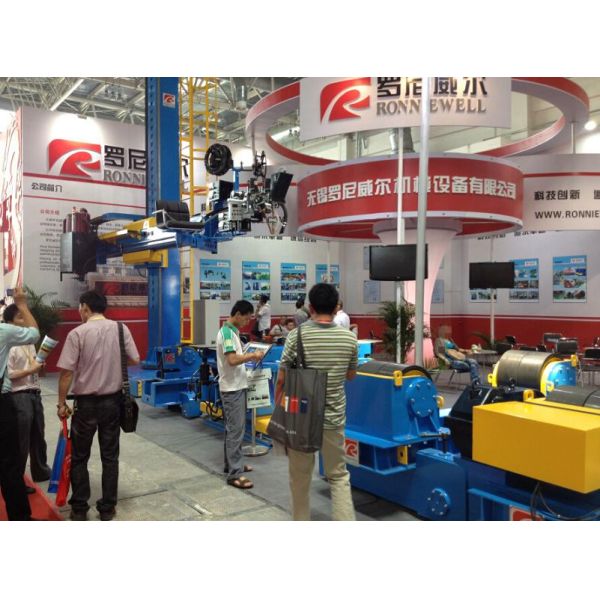

Exhibition picture:
Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Tailor Made available

Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Tailor Made available

Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Tailor Made available

Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Tailor Made available

Large Wheel 150t Tank Turning Roll Fixed Base Anti Drift Tailor Made available

Points you may concern:


Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.


Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.

Video link

https://www.youtube.com/c/RonniewellAutomatedWeldingSolutionProvider

Welcome to follow us on following social media:

Facebook: https://www.facebook.com/weldingrotatorcn

LinkedIn: https://www.linkedin.com/in/automatedwelding


Name of the machine:
pipe turning roll, pipe pipe turning roll, pipe turning rolls, welding turning rolls, welding roller, pipe turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned pipe turning roll, self-aligning pipe turning roll, self adjustable pipe turning roll, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional pipe turning roll, bolt adjustable pipe turning roll, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station;
