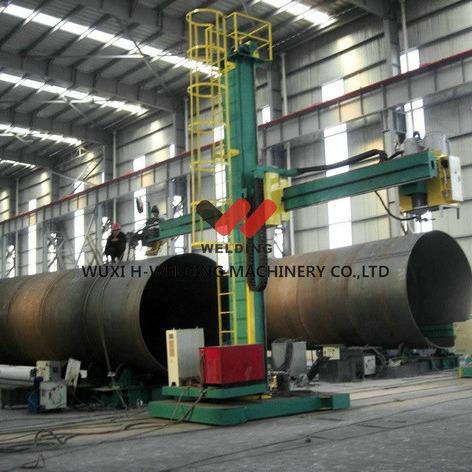

Automatic Welding Column And Boom For Pipe / Tank / Seam Welding Saw Welding Manipulator

Brief Introduction:

The welding center consists of the welding manipulator,auto-sub-merged arc welding machine(or CO,TIG,narrow-gap SAW,electro-slag strip cladding),the turning rolls(or welding positioner).

Work conditions
●Altitude height not more than 1000m
●Air temperature should not be out of the following range:
a) Highest temperature 40℃
b) Lowest temperature 0℃
●Air relative humidity: Maximum average relative humidity is 90% when day average temperature is not more than 25℃;
●The equipment should be used in environment of no serious explosive or corruptive gas,steam,salt-fog,chemical deposition, and be far away from vibrant shock.
●power supply electricity quality:
Voltage fluctuation (for rated frequency): ≤±10%;
Frequency fluctuation (for rated voltage): ≤±2%;

• This is light duty type suitable for light duty work-piece welding;
• With 80kg end loading
• FInxed / stationary structure
• Equipped with SAW,TIG, MIG welding power source as customer’s requirements;

Description:
This welding manipulator can form one welding center with welding power, these series is light duty welding manipulator, with complete function, easy operation and high automatic degree, which is ideal equipment for improve welding quality and achieve automatic welding.
The drawing is as following:

Applications:
It used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

Specifications:

Competitive advantage:

Column top is the boom elevation unit, consist of AC brake motor, worm

reducer and chain sprocket couple etc which can realize boom elevating to suitable position. The brake motor is not only ensuring pinpoint but also avoiding shocking.There is a rachet anti-dropping unit. If the chain break off which can prevent boom dropping, safe and reliable.

Company Profile:

Wuxi H-welding Machinery Co.,Ltd was founded in 2007. We are an export-oriented company and a subsidiary of Wuxi H-Power Group.
We specialize in the production of CNC flames, plasma cutting machines, welding turning rolls, welding manipulators, welding positioners, H-beam steel production lines and wind tower production lines. OEM and ODM projects are welcome as well.
