Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector
Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector
Specifications
Brand Name :
UNITOOLS
Model Number :
3-1/2F1619/60
Certification :
ISO 9000 ,API Q1
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30000 pcs per month
Packaging Details :
wooden case
Product Name :
Floor Cord Covers
Color :
Custom
Material :
SPHC
Size :
2-3/8 to 7 Inch
Channel :
Single
Appliaction :
Oil Well Down Hole Tools
OEM :
Accepted
Description

Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector

Floor Cord Covers Specifications:

Available as cross-coupling and mid-joint protectors

Suitable for API tubing sizes from 2 3/8" to 7"

Configured for flat, round or square cables, chemical injection lines, umbilicals etc.

Multichannel designs available to separate multiple lines

Customized upon request

ESP Cable Protector Application

• ESP cable
• Subsurface safety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing

ESP Cable Protector Features

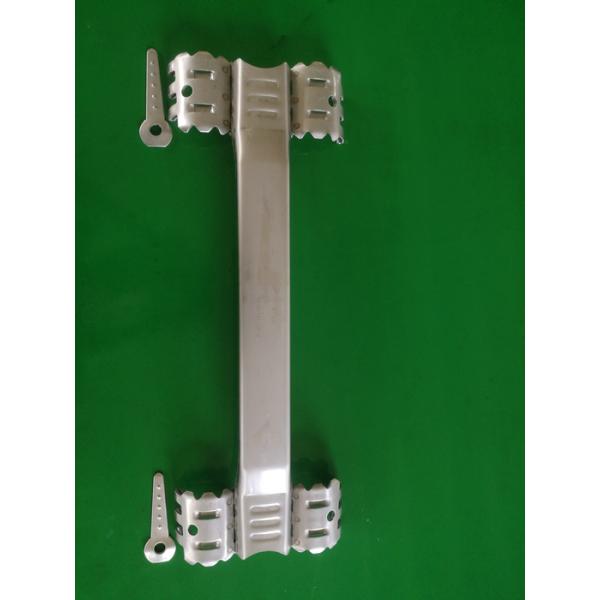

Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector

A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.

B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
Except that It will increase Pulling force ,because of the friction pads .

C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered

D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin . Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .

ESP Cable Protector Standard Size Chart

Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector

Chemical Injection Line Floor Cord Covers , Outdoor Cable Protector
