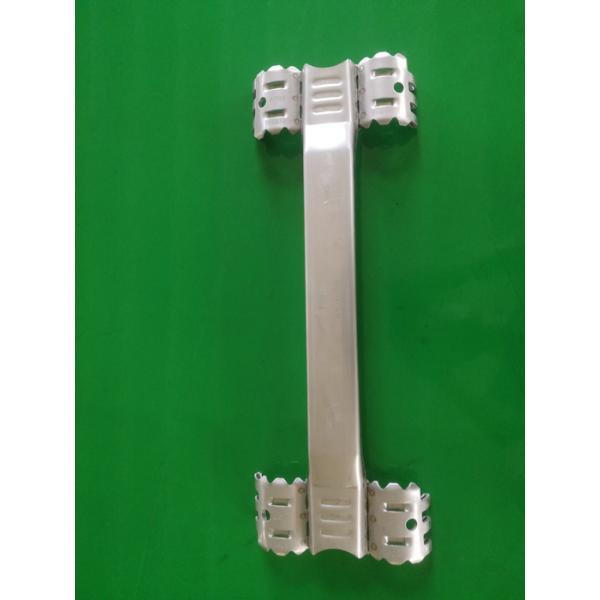

ESP Cable Protector / Cable Protection Cover Double Protection
ESP Cable Protector / Cable Protection Cover Double Protection
Specifications
Brand Name :
UNITOOLS
Model Number :
3-1/2 INCH
Certification :
ISO 9000 ,API Q1
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30000 pcs per month
Packaging Details :
wooden case
Product Name :
Spiral Cable Protector
Color :
Custom
Material :
SPHC
Size :
2-3/8 to 7 Inch
Channel :
Single
Appliaction :
Flat Cable ,Control Line, Filber Optic
OEM :
Accepted
Description

ESP Spiral Cable Protector / Cable Protection Cover Double Protection

Spiral Cable Protector Features:

All cable protectors have double protection to resist corrosion
All hinges are spot-welded to enhance the overall integrity of the product
Spring friction pad gripping system for superior grip
Slip and rotation resistant
Non-destructive gripping action
Designed to eliminate compression-reduced damages to the conductors

ESP Cable Protector Application

• ESP cable
• Subsurface safety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing

ESP Cable Protector Features

ESP Cable Protector / Cable Protection Cover Double Protection

A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.

B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
Except that It will increase Pulling force ,because of the friction pads .

C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered

D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin . Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .

ESP Cable Protector Standard Size Chart

ESP Cable Protector / Cable Protection Cover Double Protection

ESP Cable Protector / Cable Protection Cover Double Protection
