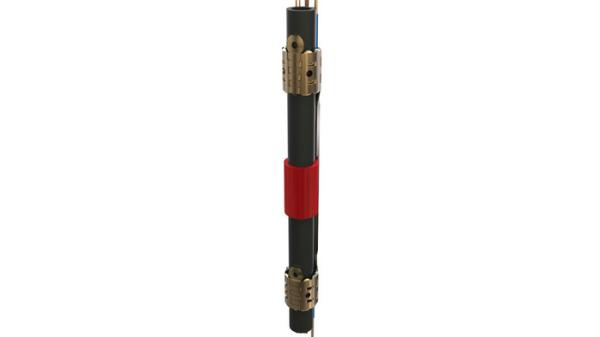

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use
Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use
Specifications
Brand Name :
UNITOOLS
Model Number :
4-1/2F1619/60 MJ
Certification :
ISO 9000 ,API Q1
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30000 pcs per month
Packaging Details :
wooden case
Product Name :
ESP Cable Protectors
Size :
2-3/8 to 7 Inch
Channel :
Single or Dual
Appliaction :
Flat Cable ,Control Line, Filber Optic
OEM :
Accepted
Type :
Single Channel
Description

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use

ESP Cable Protector Brief Introduction

UNITOOLS is a professional producer for ESP cables, Control line and Encapsulated bundles protector .
Our protector use channels to shield cables and lines when they across coupling to prevent damage during installation or retrieval of completions

Features
1. All CNPS cable protectors have double protection to resist corrosion.
2. All hinges are spot-welded to enhance the overall integrity of the product.
3. Spring friction pad gripping system for superior grip.
4. Slip and rotation resistant.
5. Non-destructive gripping action.
6. Designed to eliminate compression-reduced damages to the conductors.

ESP Cable Protector Application

• ESP cable
• Subsurface safety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing

ESP Cable Protector Features

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use

A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.

B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
Except that It will increase Pulling force ,because of the friction pads .

C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered

D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin . Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .

ESP Cable Protector Standard Size Chart

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use

Single Channel ESP Cable Protectors Flat , Round Or Square Cables Use
