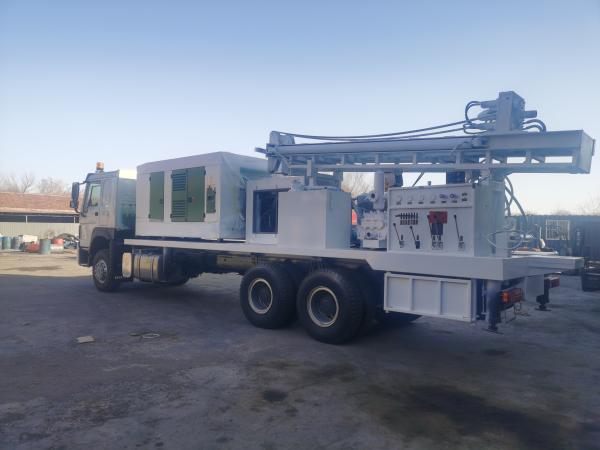

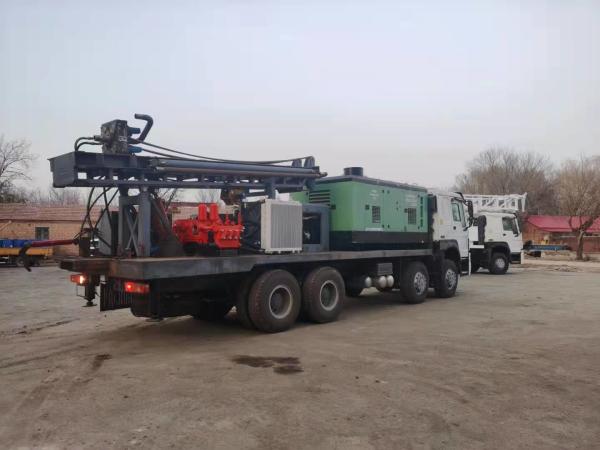

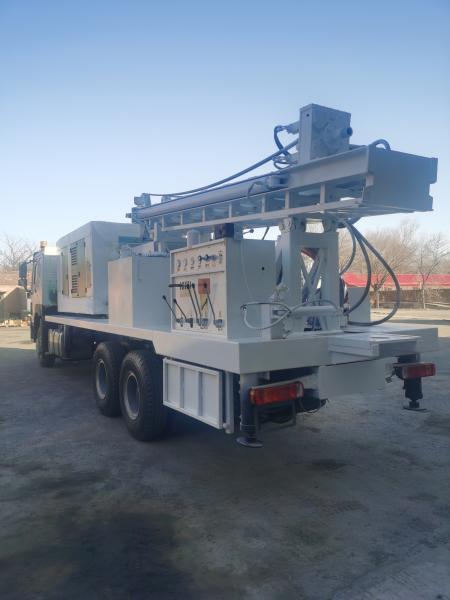

CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
CDC-400K water drilling machine 400 meters with HOWO 6x4 chassis
Specifications
Brand Name :
COMMAND
Model Number :
CDC-400K
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10-100 sets pre year
Description

CDC-400K water drilling machine with mud pump and air compressor
Comprehensive overview
Depth:400M
Aperture:90-450MM
Dimensions；12000mm×2500MM×4100MM
Total Weight:25000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
A. CHASSIS
Code Name Model Remarks
A01 Truck chassis
See the quotation for details
Can be selected according to customer requirements
If we can have our own chassis, we can also customize it according to the customer's chassis
SINOTRUK

DONGFENG
B.Drilling tower, Second floor chassis
Code Name Model Parameter Remarks
B01
Drilling tower
Retractable		 Drill tower load:30T
Operation:Two hydraulic support cylinders
Drill tower height:7M
B02
Pull up-Pull down cylinder		 Pull down:15T
Pull up:25T
B03
Outrigger cylinder		 Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction
C.Drilling rig power
Code Name Model Parameter Remarks
C01 Diesel engine Special diesel engine for drilling rig Rated power:132KW
Maximum power:153KW
Revolutions:1500RPM
Upgrade according to drilling rig construction characteristics
D.Tool hoist
Code Name Model Parameter Remarks
E01 Hoist ZYJ2B Single rope pull up:2T
E.Rotation form
Hydraulic power head
Code Name Model Parameter Remarks
F01 Power head Torque:9500NM Revolutions:0-90 RPM
G.Operating system
Code Name Model Parameter Remarks
G01 Control box Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
H.Air compressor + mud pump
Code Name Model Parameter Remarks
H01 Air compressor PRESS:2.4MPA AIR VOLUME:29 m³/MIN
H02 Mud pump BW600/30 Type:
Double Cylinder Reciprocating Double-acting Piston Pump
Maximum pressure:3MPA
Cylinder liner diameter:130MM
MAXIMUM DISPLACEMENT:720L/MIN
