Specifications
Brand Name :
HUIFENG
Model Number :
WCP-70
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
Normally 20 to 30days
Nominal Diameter :
52～103mm（2 1/16～3 1/16in）
Pressure level :
21MPa～105MPa（3000psi～15000psi）
Performance Requirement :
PR1,PR2
Temperature :
-60℃(～180℃(K-X)
Description

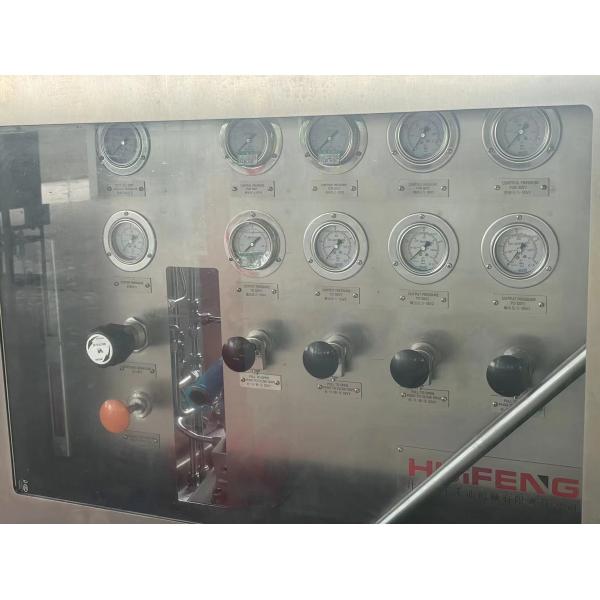

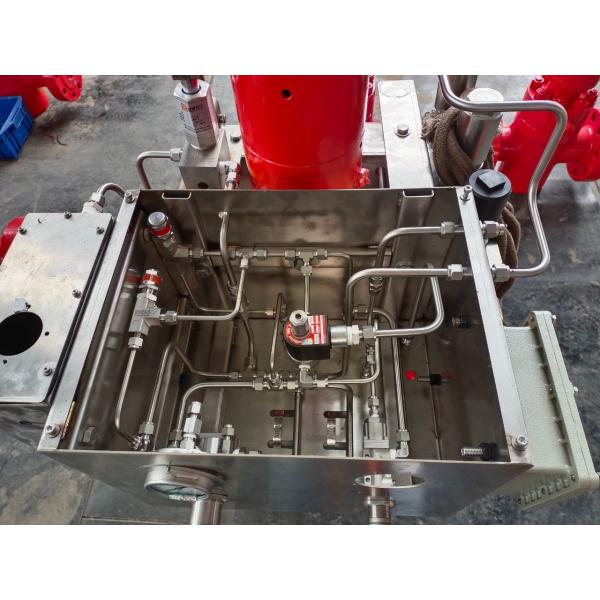

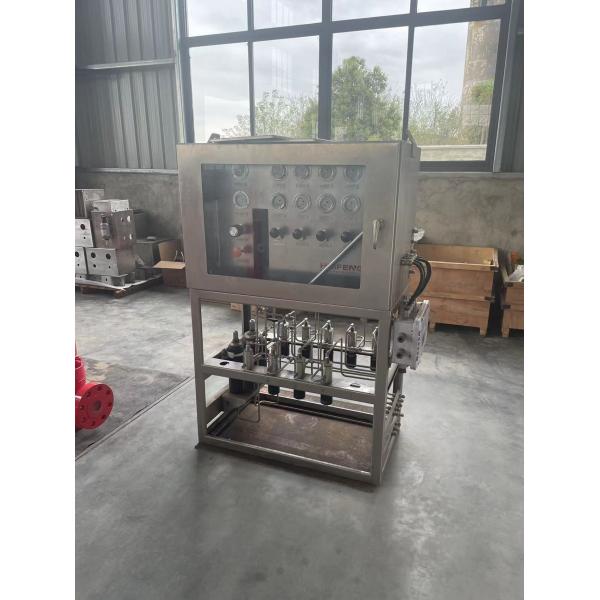

AA-HH Wellhead Control Panel Wireless remote monitoring

Product Introduction

The control panel uses hydraulic oil (manual pump/electric pump/pneumatic pump pressurized input hydraulic oil) as the driving medium for the safety valve. It realizes logical function judgment and sends instructions inside the control panel to control the opening and closing of underground and surface safety valves. The control of hydraulic pressure inlet/outlet opens/closes the safety valves (underground and surface safety valves), achieving safe production and shutdown protection of the gas tree.

Product Function

The high voltage sensing device found that the high voltage exceeded the limit.
Low pressure sensor found low pressure exceeded limit.
ESD emergency shutdown.
Control the fire alarm on the circuit to melt.
Remote control
Control method:Hydraulic,Pneumatic

AA-HH Wellhead Safety Systems Panel Wireless Remote MonitoringAA-HH Wellhead Safety Systems Panel Wireless Remote MonitoringAA-HH Wellhead Safety Systems Panel Wireless Remote Monitoring

Factory Tour

Huifeng Company is a national high-tech enterprise and the Deyang Enterprise Technology Center, with 17 technical research and development personnel. Control the entire process of product design and development to ensure that the product meets market demand and customer requirements, and meets or exceeds relevant standards and regulatory requirements.

AA-HH Wellhead Safety Systems Panel Wireless Remote MonitoringAA-HH Wellhead Safety Systems Panel Wireless Remote Monitoring
