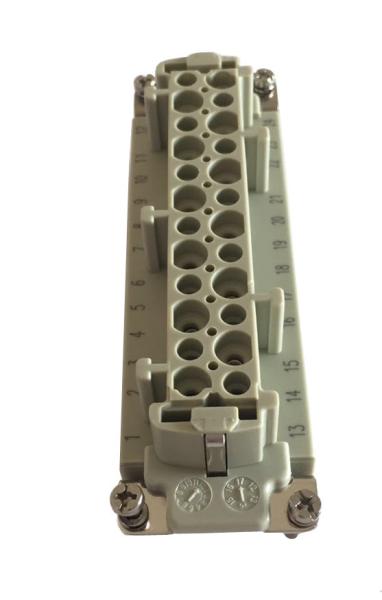

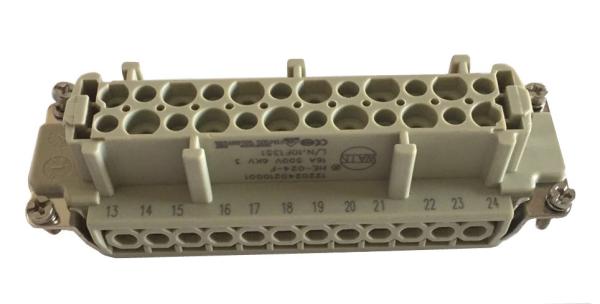

24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
24Pin Hot Runner Connector Female Insert,Hot Runne connectors Wholesale HE-024-F&09330242701
Specifications
Brand Name :
WAIN,HARTING
Model Number :
HE-024-F
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
1000PCS
Delivery Time :
1-5 working days
Packaging Details :
Carton Box
Number of contacts :
24
Rated current :
16A
Material :
polycarbonate
Description

We Wellmade supply all kinds of hot runner connectors.

Include:5Pin/6Pin/10Pin/16Pin/24Pin/25Pin/32Pin/48Pin.

24Pin Female Insert Parameter:

Inserts
Number of contacts 24
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.14-2.5mm2
---AWG 26-14
---Tightening/Test torque 0.5N·m
---Stripping length 7.0mm

More information,please contact us anytime!
