58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck
58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck
58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck
58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck
Specifications
Brand Name :
wenergy
Model Number :
EV-58.4V64Ah
Certification :
MSDS, UN38.3, CE, CB, IEC 62619
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 Set/Sets Per Month
Delivery Time :
35 working days
Packaging Details :
Wooden case
Voltage :
58.4V
Capacity :
64Ah
constant charge and discharge current :
1C
Max Pluse discharging current :
3C
Battery type :
Pouch NMC battery
Applications :
Electric delivery truck ,electric food delivery truck
Description

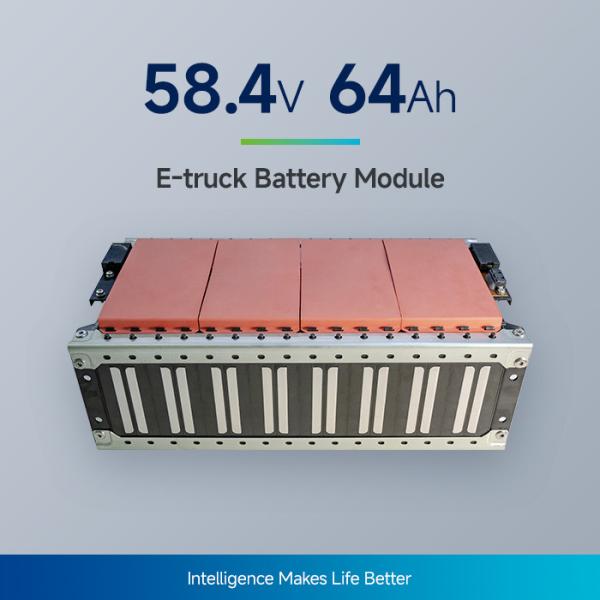

58.4V64Ah good safety electric commercial vehicle battery module for Medium duty truck
Specification
No. Item

Specification
1 Nominal Capacity 64Ah ,0.5 C discharging(25±2℃)
2 Typical Capacity 65Ah ,0.5 C discharging(25±2℃)
3 Minimum Capacity 63Ah ,0.5 C discharging(25±2℃)
4 Nominal Voltage 58.4V
5 Charge Ending Voltage 67.2V
6 Discharge Ending Voltage 0℃≤T(Temperature)≤55℃ 48V
-20℃≤T(Temperature)≤0℃ 38.4V
7 Standard Charging Method 25±2℃ 0.5C constant current charge to 67.2 V, then constant voltage 67.2V charge till charged current declines to ≤ 0.05C
8 Max. Constant Charging Current 1C (15℃～45℃)
9 Max. Pulse Charging Current 1.5C (15℃～45℃)≤30S
10 Standard Discharging Current

25±2℃

0.5C constant current discharge to 48.0V
11 Max. Constant Discharging Current 1C
12 Max. Pulse Discharging Current 3C (15℃～45℃)≤30S
13 Operating environment

Charging:-10℃~55℃, max.90%RH

Discharging: -20℃~55℃, max.90%RH
14 Module Weight 22.0±0.6 kg
15 Energy Density 170 Wh/kg
Battery module features

1. Battery cell energy density over to 220wh/kg ,with high energy density NCM cathode material

2. The battery module is special designed for electric truck and electri terminal tractor with high charge and discharge performance .

3. Battery module can be desighed to several battery models with different configurate to suitable for various commercial truck , the module capacity as follow 36.5V128Ah ,43.8v128Ah, 51.1V128AH ,58.4V64Ah

4.Battery module outter package is wooden case have granted by international export transpotation rules UN38.3 and IATA

5.Wide range of Application scenarios that is utilized in varity of electric commercial truck like Electric Transit truck,Electric Food truck,Electric Dump truck ,Electric Tipper truck ,Electric cargo van and pick up truck .

32 Ah electric truck battery module list

Name Parameter
Cell model SEPNi11217127P(NCM)
Configuration 4P6S 4P8S 4P10S 4P12S 4P14S 5P6S
Module rated voltage(V) 21.9 29.2 36.5 43.8 51.1 21.9
Module capacity(Ah) 128 128 128 128 128 160
Energy (KWh) 2.803 3.737 4.672 5.606 6.541 3.504
Application Electric delivery truck , electric Dump/Tipper truck, Electric Reefer truck
