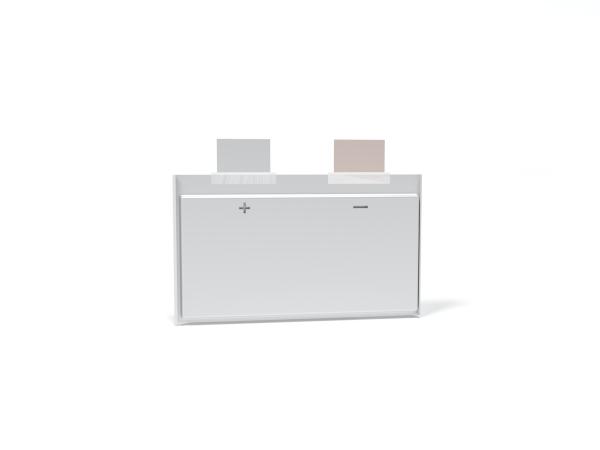

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up
Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up
Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up
Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up
Specifications
Brand Name :
wenergy
Model Number :
SEPNi11217127P-3.65V32Ah
Certification :
MSDS, UN38.3, CE, CB, IEC 62619
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 Set/Sets Per Month
Delivery Time :
25-30 working days
Packaging Details :
Carton case
Voltage :
3.65V
Capacity :
32Ah
Max. Pulse Discharging Current（10S） :
3.5C
Max.Pulse Charging Current（10S） :
2.5C
Max. Constant discharge and Charging Current :
1C
Cell energy density :
220Wh/kg
Description

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up

Specification

Product Name 32AhPower Battery Cell
Model SEPNi11217127P-32Ah(Pouch)
Electrochemical NCM/Graphite
Application Scope Electric terminal tractor
Nominal Capacity 32Ah(1/3C)
Nominal Voltage 3.65V
Rated Range Voltage 3.0-4.20V
The Recommended Voltage Range 3.0-4.15V
Max. Constant Discharging Current 1C

Max. Pulse Discharging

Current(10S)

 3.5C
Max. Constant Charging Current 1C
Max.Pulse Charging Current(10S) 2.5C
Operating temperature range -20℃～55℃
Storage temperature range -30℃～55℃
Cell energy density 220Wh/kg
Cell Dimensions: T×W×H/mm (125±2)×(215±2) ×(11.2±0.3)

Testing data

Cyclelife performance

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up

Discharge of different currents performance

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up

Discharge of Different Temperature testing data

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up

Wenergy NMC battery cell

The battery cell production is followed high and strict criteria in each process, make sure it follow advantages:

1. Safe and reliable, and can pass any abuse test

2. High energy density

3.Supply chain is stable and reliable to ensure good product consistency

Rechargeable Lithium Battery Cell 3.65V 32ah High Density For E Truck and Pick Up
