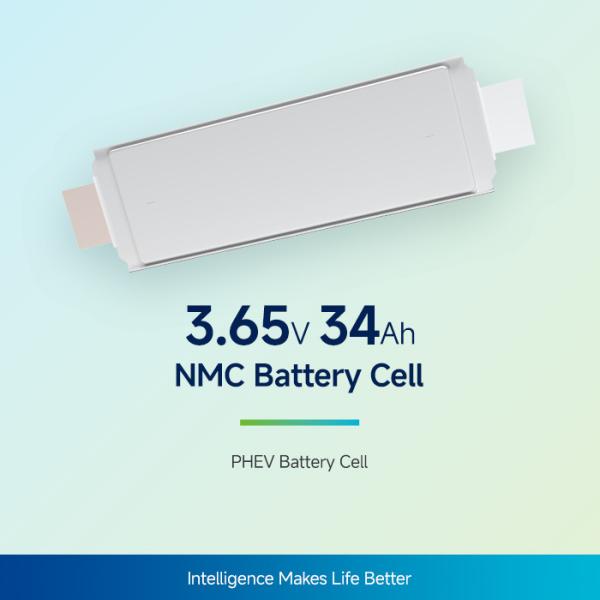

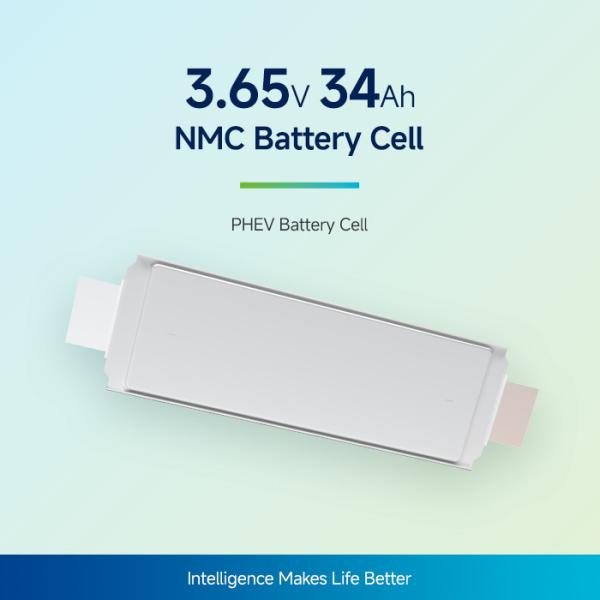

5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV
5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV
5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV
5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV
Specifications
Brand Name :
wenergy
Model Number :
SEPNi11100302P-34Ah
Certification :
UN38.3,CE ,IEC62619
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30000 /day
Delivery Time :
250working days
Packaging Details :
Carton case
Voltage :
3.65V
Capacity :
34Ah
Max. Pulse Discharging Current（10S） :
10C
Max.Pulse Charging Current（10S :
5C
Max.Constant Discharging Current :
5C
Max. Constant Charging Current :
3C
Applications :
PHEV ,HEV
Description

5C Fast Charge 10C Discharge NCM Battery Cell 34Ah For PHEV And HEV

Product Name 34Ah Power Battery Cell
Model SEPNi11100302P-34Ah Pouch
Electrochemical NCM/Graphite
Application Scope Pure EV,Hybrid EV
Nominal Capacity 34Ah(1C)
Nominal Voltage 3.65V
Rated Range Voltage 2.8-4.35V
The Recommended Voltage Range 3.0-4.30V
Max.Constant Discharging Current 5C(30%-100%SOC)

Max. Pulse Discharging

Current(10S)

 10C
Max. Constant Charging Current 3C(0%-70%SOC)
Max.Pulse Charging Current(10S) 5C
Operating temperature range -20℃～55℃
Storage temperature range -30℃～55℃
Cell energy density 210Wh/kg
Cell Dimensions: thickness×width×height/mm

(300±2)×(99±2)

×(10.2±0.3)

Product Advantages:


The battery cell with high power performance, excellent performance in high (low) temperatures, long cycle life, and good safety features. At room temperature, it maintains a capacity retention rate of over 80% after 3000 cycles at 1C/1C

Testing data

Different rate charge and discharge performance

5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV

Different capacity performance

5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV

Testing capatability of lithium battery laboratory


The lithium battery laboratory of Wenergy has more than 100 sets of testing equipment, including 74 sets of charge/discharge testing device which provide 770 testing channels of different specifications. There are 27 sets of programmable environmental chamber offering temperature and humidity conditions for testing, including 12 sets of fast-temperature-changing device. These chambers can provide a temperature range from -60oC to 150oC. There are also 6 sets of safety performance testing device for lithium single cell.

5C Fast Charge 10C Discharge Ncm Lithium Battery 34Ah For PHEV And HEV
