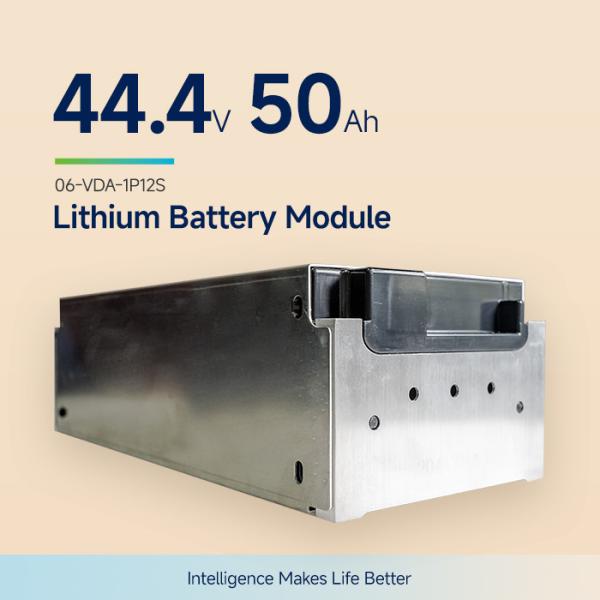

2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle
2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle
2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle
2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle
Specifications
Brand Name :
wenergy
Model Number :
06-VDA-1P12S
Certification :
CE/MSDS/UN38.3/IATF16949
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 pcs /day
Delivery Time :
35 working days
Packaging Details :
Wooden case
Voltage :
44.4V
Capacity :
50Ah
Max. Pulse Discharging Current :
3C
Battery Cell :
SEPNi11100302P-50Ah
Battery Cell Energy Density :
260 Wh/kg
Battery Configuration :
1P12S
Description

2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck And Electric Vehicle

No. Item Performance
1 Nominal Capacity 49Ah ,1C(25±2℃,3.0V~4.35V)
2 Nominal Voltage 44.4V
3 Charge Ending Voltage Suggest cutting off the maximum voltage of a single unit to 4.3V
4 Discharge Ending Voltage 0℃≤temperature≤55℃ Suggest cutting off the minimum voltage of a single unit to 3.0V
-30℃≤temperature＜0℃ Suggest cutting off the minimum voltage of a single unit to 2.4V
5 Standard Charging Method 25±2℃ 0.5C Charge the battery with a constant current until the highest voltage of the unit reaches 4.3V, and then charge it in a constant voltage mode until the charging current reaches ≤ 0.05C and stops
6 Max. Constant Charging Current 1C
7 Max. Pulse Charging Current 1.5C (25±5℃,50%SOC) ≤30S
8 Standard Discharging Current

25±2℃

1C constant current discharge until the lowest single voltage reaches 3.0V
9 Max. Constant Discharging Current 1C
10 Max.Pulse Discharging Current 3C (25±5℃) ≤30S
11 Operating environment

Charging: 0 ℃~55 ℃, max. 90% RH (charging conditions according to 3.4 charging mechanism)

Discharge: -30 ℃~55 ℃, max. 90% RH (discharge conditions according to 3.4 discharge mechanism)

All of the above believe that there is no heating system. If there is a heating system, it should be considered based on the actual situation
12 Module weight 10±0.3 kg
13 Insulation performance ≥500MΩ
14 Pressure resistant performance 2700VDC, leakage current<1 mA

VDA module Superiority:


Using high energy density NCM materials reach to 260wh/kg .

Battery cell was designed for electric truck which adopt the VDA standard size to match any battery pack model

Have got the international certificates :UN38.3,MSDS,CE, IEC62619

Battery package are comply with international export transpotation rules UN38.3 ,MSDS and dangerous package certificate like IATA.

VDA Battery module production line
