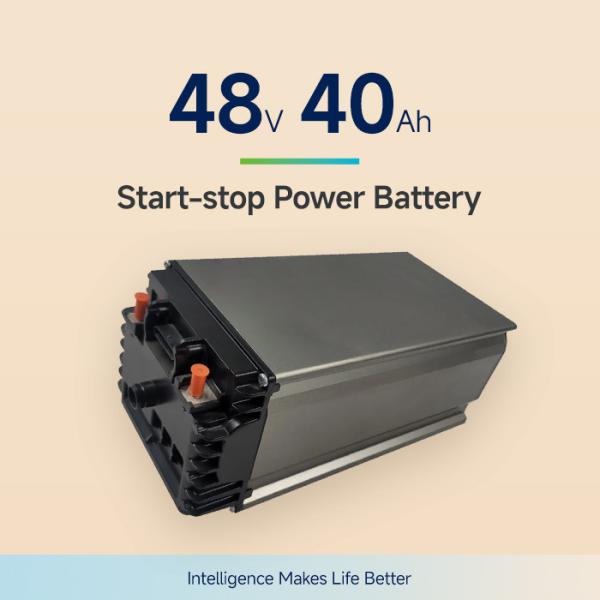

48V40Ah 30C Auto Start Generator Battery , Mild Hybrid Electric Vehicle Battery
48V40Ah 30C Auto Start Generator Battery , Mild Hybrid Electric Vehicle Battery
48V40Ah 30C Auto Start Generator Battery , Mild Hybrid Electric Vehicle Battery
48V40Ah 30C Auto Start Generator Battery , Mild Hybrid Electric Vehicle Battery
Specifications
Brand Name :
wenergy
Model Number :
48V40Ah
Certification :
Compliance with MSDS, UN38.3, CE, CB, IEC 62619
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 sets per month
Delivery Time :
35 working days
Packaging Details :
Wooden case
Voltage :
48V
Capacity :
30Ah
Total Energy :
1440Wh
Battery Chemistry :
NMC high rate Battery
continuous charging current :
30C
Description

48V40Ah 30C High Rate Discharge Auto Start Generator Battery For PHEV And HEV

Introduction

A 48V hybrid battery system is a key component in mild hybrid electric vehicles (MHEVs), offering a balance between traditional internal combustion engines (ICE) and fully electric vehicles (EV).

Specification

No. Item Parameters
1 Model SF10N1P13SNNX
2 Product type High rate battery pack
3 Application hybrid electric passenger car
4 Installation location Others
5 Configuration 1P13S
6 Cooling type Air cooling
7 Rated Voltage(V) 46.8V
8 Rated Capacity(Ah) 40 Ah
9 Rated Energy(Wh) 1872Wh
10 System charging termination voltage (V) 53.3V
11 System discharging termination voltage(V) 36.4V
12 Battery cell charging cut-off voltage(V) 4.10V
13 Battery cell discharging cut-off voltage(V) 2.8V
14 Charging working temperature range(℃) 0～55℃
15 discharge working temperature range(℃) -30～60℃
16 Maxi allowable continuous charging current(A) Room Temperature:800A 40℃:800A 0℃:800A -20℃:40A
17 Maximum allowable continuous discharging current(A) Room Temperature:800A 40℃:800A 0℃:800A -20℃:600A
18 size(mm) 450*350*200mm

48V Hybrid battery system functions

  • Mild Hybrid Operation: A 48V system supplements the ICE with an electric motor that can provide assistance during acceleration, regenerative braking, and power to auxiliary systems.
  • Start-Stop Technology: The system enables efficient start-stop functionality, shutting off the engine during idling and restarting it seamlessly when needed.
  • Regenerative Braking: Captures energy during braking and deceleration, storing it in the 48V battery for later use.

Application

  • Start-Stop Systems: Automatically shuts off the engine when the vehicle is stationary and restarts it when needed, reducing idling time and fuel consumption.
  • E-Boost: Provides additional torque during acceleration, enhancing vehicle performance.
  • Electric Turbochargers and Superchargers: Improves engine response by reducing turbo lag and providing instant power boost.
