Specifications
Brand Name :
WENYAO
Model Number :
WYCS6-384
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Month
Delivery Time :
15 - 20 working days
Packaging Details :
Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Function :
color sorting machine
Condition :
Brand New
Color :
White ,according to customer's needs
Sorting accuracy(%) :
≥99.99
Light Source :
LED
Warranty :
2 Years warranty
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Overseas service center available,Field maintenance and repair service
Whole Power :
3.1
Ejector :
Metal ejector
Application :
Rice processing,sorting,wheat,grain cleaning and separator
Voltage :
220V 50HZ
Feature :
Easy to Operate ,high sorting accuracy
Description

Optical Pumpkin Seed Color Sorter WiFi Remote Control Peanut Rosehip Sorting Machine

Optical Pumpkin Seeds Colour Sorter Machine Seed Color Sorter With WiFi Remote Control

Colour sorters are used for the food processing industry, such as coffee, nuts, and oil crops. The goal is the separation of items that are discoloured, toxic (such as ergot), not as ripe as required, or still with hull after dehulling such as sunflower seeds..

How does a color sorter work

The raw material enters the machine from the top hopper/storage hopper. Through the vibration of the vibrator device, the raw material slides down the channel accelerate down into the observation zone in the sorting cabinet and pass between the sensor and the background plate. Under the action of the LED light source, according to the intensity and color change of the light, the output signal of the system is driven to drive the solenoid valve to blow the heterochromatic particles into the waste outlet hopper, and the accepted material continues to fall to the finished product cavity of the acceptation outlet hopper. In order to achieve the purpose of color sorting.

Parameters as below:

Main Parts Parameters/ brand Parts Advantage and warranty
Channels 64*6=384 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long.
Pixel of camera 5400 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years
CCD sensor Toshiba High Sensitivity and resolution warranty:2 years
Light source LED Lamps 1.Luminous evenly 2.The service life is long 3.The light is not weak for long time

Ejector Metal 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months.
Filter YSC/CKD 1.High filtration accuracy 2.High filtering speed 3.durable and long time service.
Screen Touch screen 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years
Hopper 304 stainless steel 1.Rust protection 2.Wear-resisting,wearproof
Package Plywood case 1.Stable structure no deformation 2.Easy to transport

Color sorter work principle:

Peanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote Control

Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

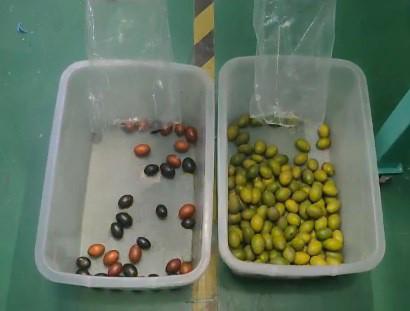

Examples of color sorting:

Peanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote Control

Peanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote Control

Peanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote Control

From Customer's Site :

Peanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote ControlPeanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote ControlPeanut Rosehip Optical Pumpkin Seed Color Sorter WiFi Remote Control

1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?

One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.


4. Is oversea service available?

Yes, our engineers could go abroad when required.

5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
