High Capacity 5 Chutes White / Parboiled Rice Sorting Machine Rice Color Sorter

What is color sorter?

Color sorting machine is an equipment that automatically sorts out different color particles in granular materials by photoelectric technology according to the difference of material color.
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.

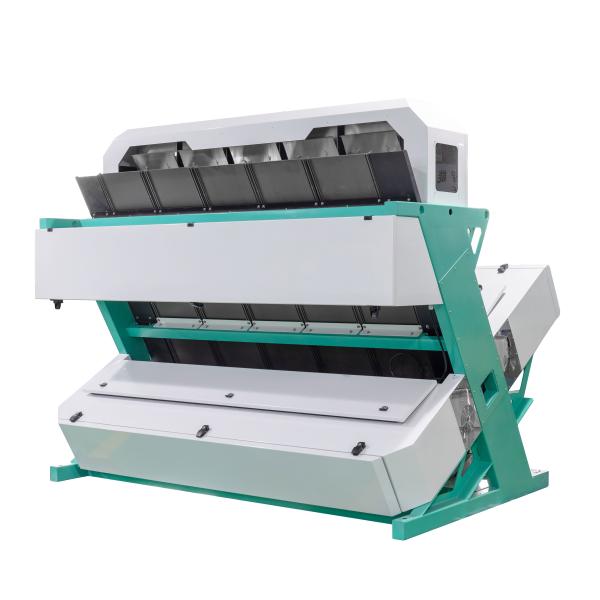

WYCS5-320 color sorter product show

Highlight features

1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.

2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.

3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.

4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.

5. Humanization true color screen, visual effect is more clear, operation is more easier.

6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.

Color sorter application

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.

Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.

Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower

Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp

Examples of color sorting for rice

Parking and delivery

Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.

Customer's vist

Our service

Before sale:no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.

After Sale :

1. From the date of use machine, we can provide two years free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

2. Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

3. Field installation,commissioning and training,Overseas service center available,Field maintenance and repair service .

FAQ

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

Two years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipment, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. How about after sales service?

By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T both OK.

6. Will you test machine before delivery ?

Yes , we will test carefully before delivery ,and save parameters in the machine .
